BQ78350: BQ78350+BQ76200 connect to MCU

Kami Huang60

Part Number: BQ78350
Other Parts Discussed in Thread: BQ76200, , BQSTUDIO, EV2400,

Dear Sir/Ms.

Excuse me, I currently have a BMS project to evaluate, because the BQ78350 has two communication interfaces (one I2C, one SMBUS), and the current customer's desired architecture is BQ76200+BQ78350+MCU. The MCU through the PC allows the MCU to control the BQ78350 via 485 communication. In this case, my client can use the SMBUS communication protocol. How can I connect? Is there any example of connection for reference? The customer also asks about the sample program in addition to the hardware?

Best Regards,

Kami Huang

over 5 years ago

0 Matt Sunna over 5 years ago

TI__Guru* 81035 points

Hi Kami,

I'm not sure I understand the question. An MCU should be able to communicate to the BQ78350 through the SMBus. If you want to connect with a PC, you should use an EV2400 (available on ti.com) and BQStudio software (see the links below). The BQ78350-R1 Technical Reference Manual describes the SMBus commands for the BQ78350-R1 and if you have a logic analyzer, you can monitor the transactions between the EV2400 and the BQ78350-R1 to see examples for the different commands.

EV2400: http://www.ti.com/tool/EV2400

BQStudio: http://www.ti.com/tool/BQSTUDIO

Best regards,

Matt

0 Yanchi Chen over 5 years ago in reply to Matt Sunna

Prodigy 50 points

Hi Matt

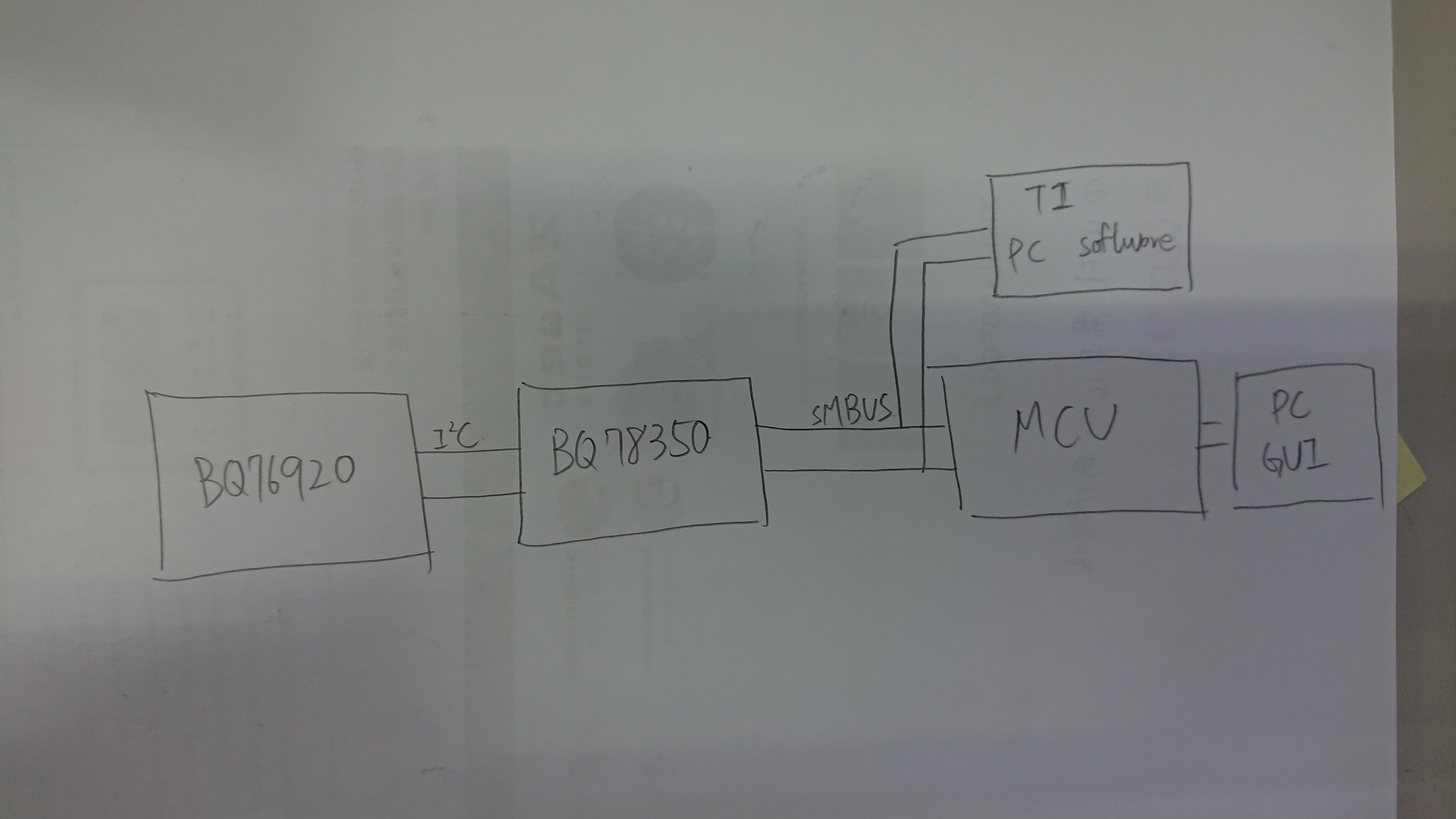

The photo below is our system architecture.

The picture below is our system architecture.

Our MCU needs to communicate with the BQ78350 using SMBus.

Does SMBus have a communication protocol?

Any suggestions for hardware circuits?

Is there any reference in this regard?

0 Matt Sunna over 5 years ago in reply to Yanchi Chen

TI__Guru* 81035 points

Hi Yanchi,

Here is an app note that describes SMBus: http://www.ti.com/lit/pdf/slua475 SMBus is similar to I2C and there are plenty of resources online.

The BQ78350-R1 TRM describes the SMBus commands for the device. If you have a logic analyzer, you can monitor the SMBus communication from an EV2400 and BQStudio to better understand how the communication protocol works.

Best regards,

Matt
