EMB1499Q: behavior

Massimo Tucci

Part Number: EMB1499Q

We are developing a new board with EMB1428+1499, previously we have evaluated with an evm1402.

Our board has the same schematic and parts of the EVM, the PCB layout is very very similar. But EMB1499 is having trouble working ...

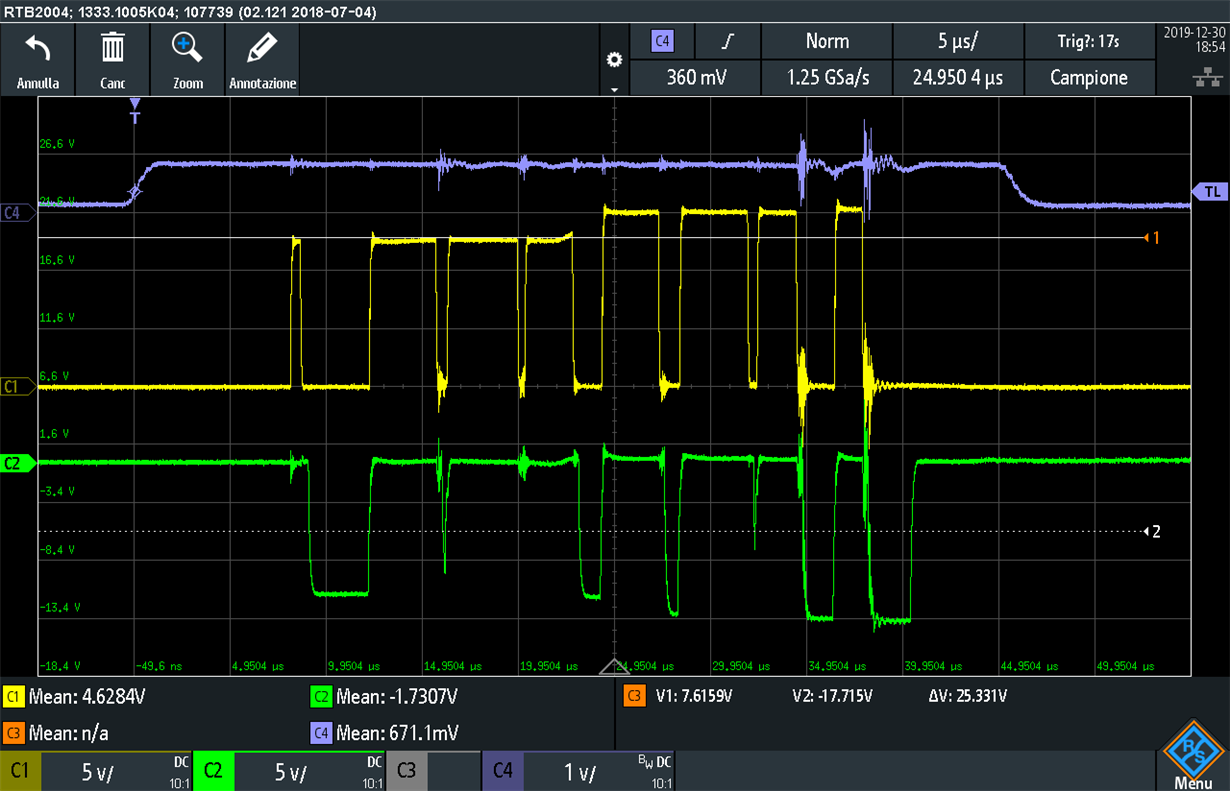

I found this waveforms for EN (violet), GATE LS (Yellow), PWM_CLAMP (green) - charge direction

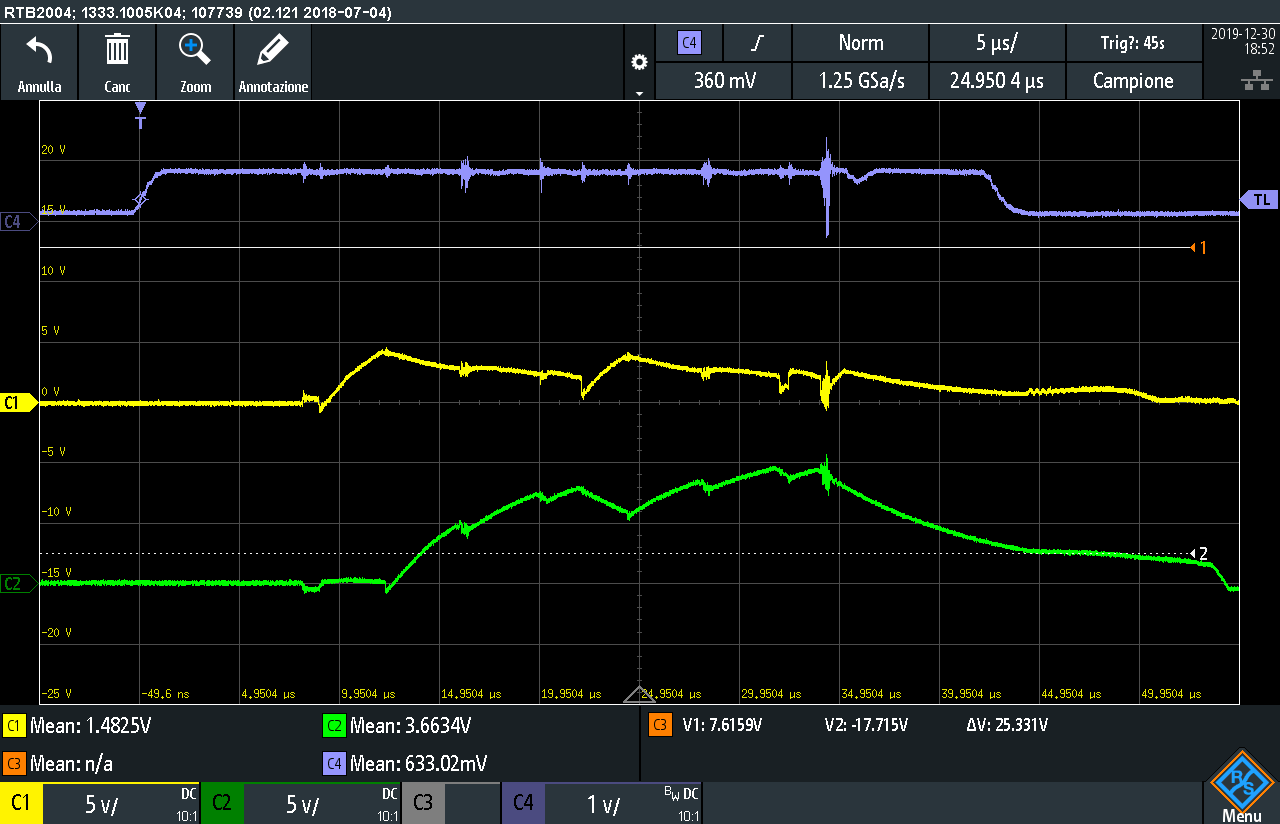

and this for for EN (violet), GATE HS1 (Yellow), GATE HS2 (green) - charge direction too

any idea?

Thanks in advance.

Best regards and happy new year

Massimo Tucci

0 Roger Hwang over 5 years ago

Hi Massimo,

I strongly suggest you to review the schematic again.

Please Compare with TI evm schematic and let us know. Check the GND and PWR.

I would also look at the grounding of your layout.

Roger

0 Massimo Tucci over 5 years ago in reply to Roger Hwang

Thanks a lot for the tip.

we had verified, but not enough, by checking again I found that R7-R8 were mounted with incorrect value 5.1k and not 5.1 ohm.

Schematic and bom are right

Now run.

Best regards

and

happy new year

Massimo Tucci
