BQ25120A: Register issue

Sara Jia

Part Number: BQ25120A

Hi team,

We use BQ25120A in our design, we meet some question.

1. we read the status and ship mode control register during charging , the register hints the status is ready not charging.

2.We close the safety timer limit in VIN_DPM and Timers Register, after charging for long time, device enters into default mode, and the output voltage is 1.8V . we try to communicate on I2C ,but fail until we take off the battery.

We are confused on this problem. Would you pls give us some recommendation on this issue.

Thanks a lot.

Sara

over 5 years ago

0 Raheem over 5 years ago

TI__Mastermind 21590 points

Hello,

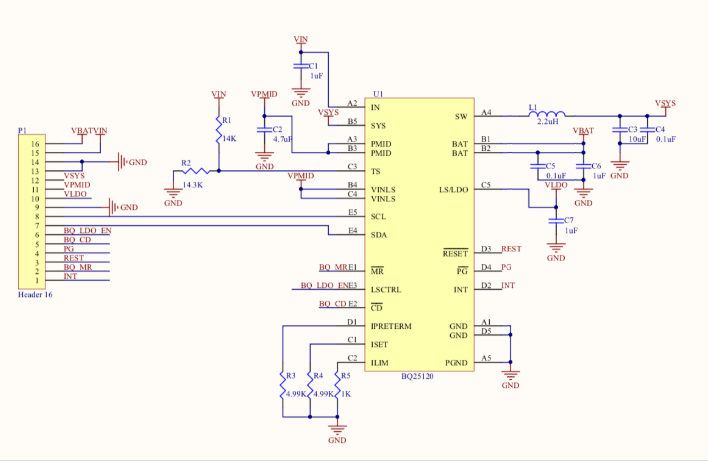

Can you please share your schematic. What was the state of /CD pin when the issue occurred and was VIN present?

0 Sara Jia over 5 years ago in reply to Raheem

Expert 2975 points

Hi Sharafadeen,

Thanks for your reply.

0 Sara Jia over 5 years ago in reply to Sara Jia

Expert 2975 points

Hi Sharafadeen,

For second question,Vin is 5V./CD is high.

0 Raheem over 5 years ago in reply to Sara Jia

TI__Mastermind 21590 points

Hello,

Can you post a register dump so i can see what the device settings are when the issue occurs.

What voltage are the I2C lines pulled up to? and what voltage rail powers the MCU?

0 Raheem over 5 years ago in reply to Raheem

TI__Mastermind 21590 points

Hello,

Any updates here?

0 Raheem over 5 years ago in reply to Raheem

TI__Mastermind 21590 points

Hello,

I'll close this since i haven't heard back.
