TPS650861: VIN:12V LDO5P0:5V VREF :1.245V LDO3P3 3.3V CTL1 1.8V buck1-6 no output LDOA1 no output, seems to be Digital Core EN no set, the reason is what ? need to setting something ?

user5978512

Part Number: TPS650861

hello:

TPS65086100RSKR on our board buckS and LDOS no output :

now can measure follow:

VIN:12V LDO5P0:5V VREF :1.245V LDO3P3 3.3V CTL1 1.8V buck1-6 no output LDOA1 no output, seems to be Digital Core EN no set, the reason is what ? need to setting something ? the default setting can not output why? decal and layout check same with demo of TPS650861

over 5 years ago

0 Kevin LaRosa over 5 years ago

TI__Genius 17380 points

Hello,

It sounds like the part is powering up, did you program it yet? The TPS650861 is a blank part and needs to be programmed to operate. The programming user's guide is here: http://www.ti.com/lit/pdf/swcu188 and the example files are in the technical documents section: http://www.ti.com/product/TPS650861/technicaldocuments

0 user5978512 over 5 years ago in reply to Kevin LaRosa

Prodigy 30 points

hello:

yes, has program it already, because same chip change to the TI demo, can bring up OK , and on our board , catch the register information such as attachment , 0X5E+4 is 1 on our board( when CTL1 =HIGH or Low) , while 0 on demo(); 0X5E+5 is 5 on our board( when CTL1 =HIGH or Low), 4 on demo

0 user5978512 over 5 years ago in reply to user5978512

Prodigy 30 points

hello:

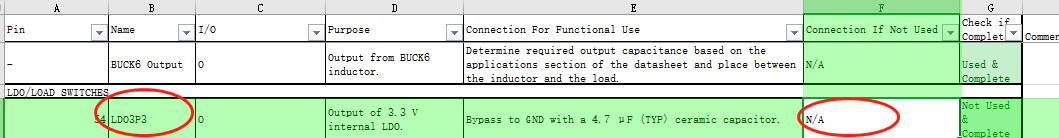

We find the reason for the LDO3P3 lack of capictor, after add the 4.7uF on our board, ALL bucks brings up quickly ,thanks , you can close the case. first we find the difference, but after view the checklist, we thought no capcitor is OK.

thanks very much.
