UCC5390ECDWVEVM: UCC5390ECD spice model build in short to Vee2

Peter Lauer

Part Number: UCC5390ECDWVEVM

we try to run simulation with the UCC5390ECD part both in PSPICE and LTSPICE and are using the models and libraries from TI.

we have a problem where the Vee2 pin seems to short to the supply when switching the output. Anybody saw a similar issue?

Peter

Eaton Corp.

over 5 years ago

0 Audrey Dearien7 over 5 years ago

TI__Expert 4875 points

Hello Peter,

I am not aware of this issue. Can you please send the schematic which you are simulating?

If you would like to share it privately, we can chat in the E2E private messenger.

Regards,

Audrey

0 Don Dapkus over 5 years ago in reply to Audrey Dearien7

TI__Guru**** 189401 points

Hi, Peter,

I've asked our local team to follow-up with you on this issue.

0 Audrey Dearien7 over 5 years ago in reply to Don Dapkus

TI__Expert 4875 points

Hello Peter,

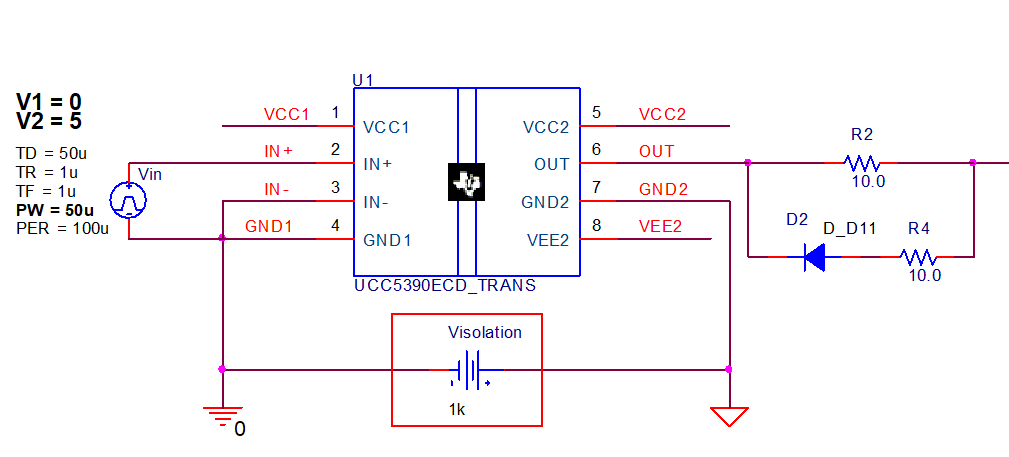

I looked into this simulation issue and the circuit must be configured with a voltage source between GND1 and GND2 to emulate the isolation barrier. I would recommend the configuration below. Please hit the green button if this resolves your simulation error.

Thank you,

Audrey

0 Audrey Dearien7 over 5 years ago in reply to Audrey Dearien7

TI__Expert 4875 points

Hello,

I see you hit the button to say this did not resolve your issue; is that the case?

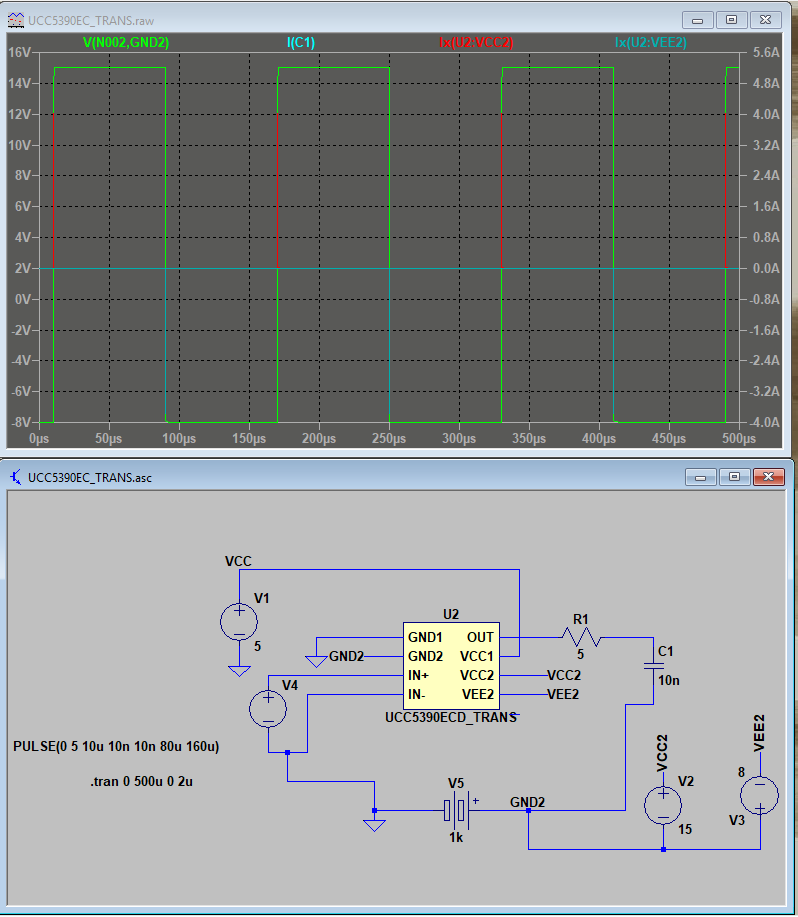

Please see below my own circuit and simulation result where the supply no longer shorts to VEE during switching.

Regards,

Audrey
