UCD90160A: Fusion Digital Power Designer : Rail dependency in Sequencing

Ella KIM

Part Number: UCD90160A

Hi there,

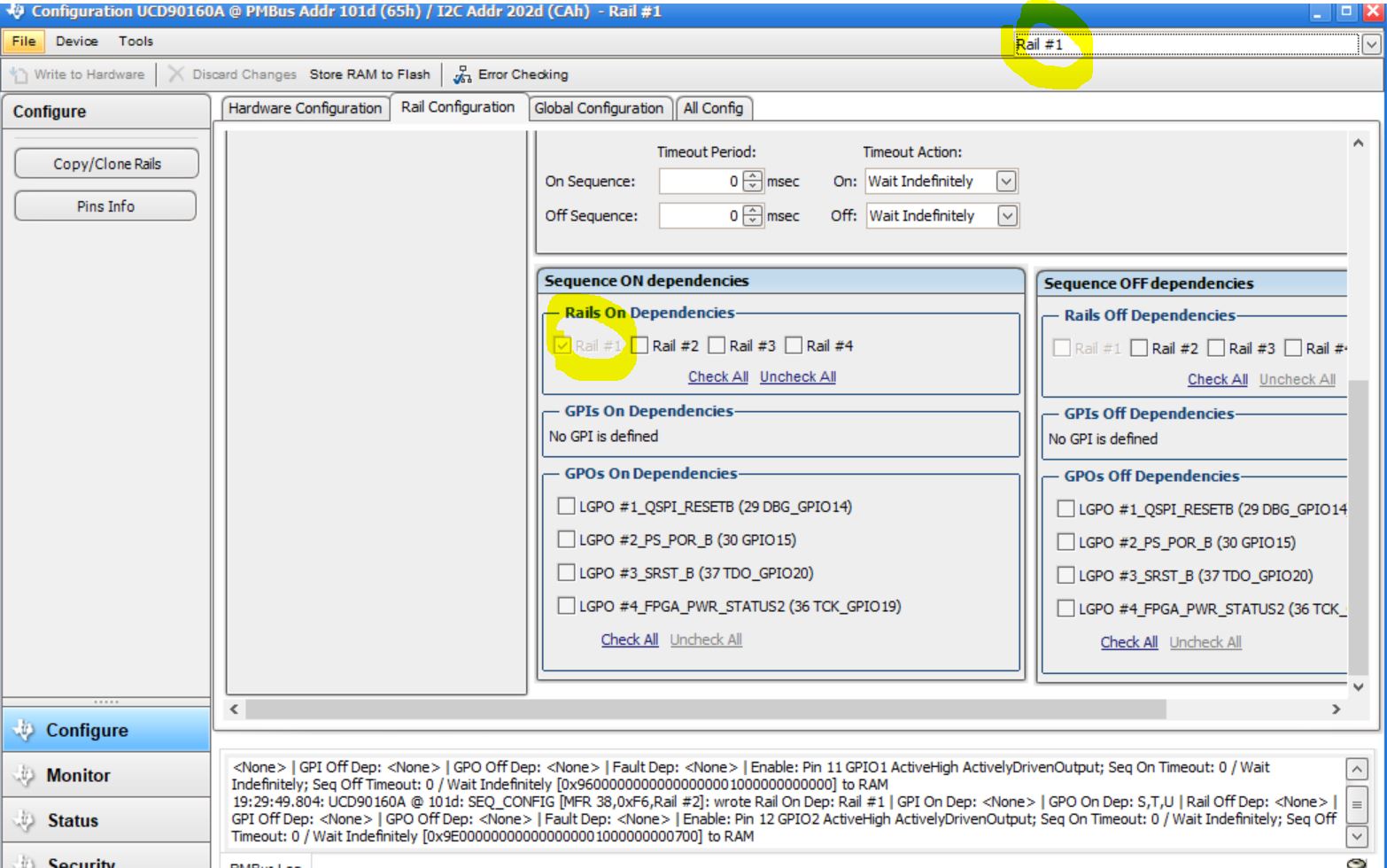

I'm designing with UCD90160A using Fusion Digital Power Designer. On the power sequencing tap, dependency on Rail #1 is check-boxed even though it's about Rail #1 and Sequencing chart keeps showing me an error. Please refer to attatchments below. Could you please give me a prompt response on it? Thank you!

over 5 years ago

0 yihe over 5 years ago

TI__Guru 65750 points

The error is due to that there are some circular dependency loop. for example: rail #1 has dependency on rail#2 and rail#2 has dependency on rail#1. GUI can not plot such case.

Could you share the project file so that we can check.

Regards

Yihe

0 Ella KIM over 5 years ago in reply to yihe

TI__Expert 4212 points

What's odd is that rail#1 dependency is checked in rail#1 sequencing configuration. Please check the file. Thank you.

I cannot attatcg the project file as it comes with uploading error. Can you let me know your e-mail address?
