TPS23881EVM-008: Detail functionality of TPs2388x GUI.

Steven Chen61
Prodigy 160 points
Part Number: TPS23881EVM-008
Other Parts Discussed in Thread: TPS23881

Dears,

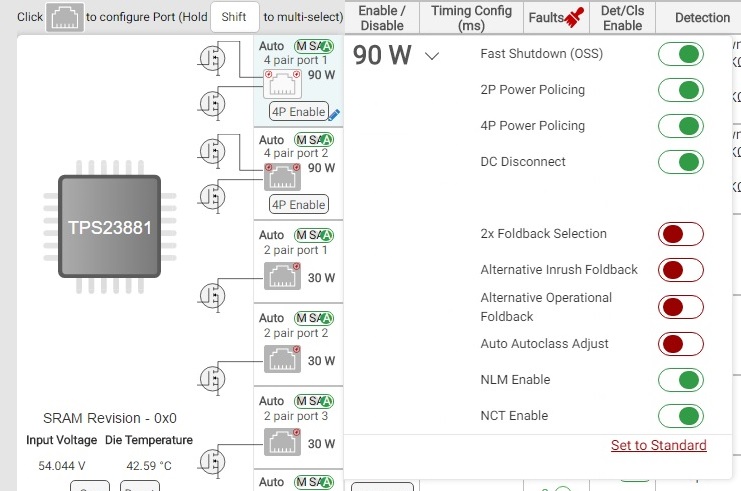

I'd like to know what are these functions for? Especially the functions of lower part due to most of them are not defined in 802.3bt spec except autoclass.

I wonder if there is a user manual for these GUI tool, thank you.

  • 0
    TI__Genius 15685 points

    Hi Steven,

    TPS23881EVM user's guide has the instructions of how to use the GUI. If you want to understand details about port configuration, it is better to read register description in TPS23881 datasheet.

    OSS:15h

    2P PCUT: 1Eh ~ 21h

    4P PCUT:2Ah~2Bh

    DC disconnect:13h

    2X foldback:40h

    Alternative foldback:55h

    Auto Autoclass Adjustment:50h

    NLM/NCT:2Dh

    Thanks,

    Penny
