LM61460-Q1: LM61640-Q1 TINA simulation convergence error

Wei-Hao Chen (TW-FAE)

Part Number: LM61460-Q1
Other Parts Discussed in Thread: TINA-TI

Hi modelling team,

We have an issue with LM61640-Q1, could you please help to fix the model?

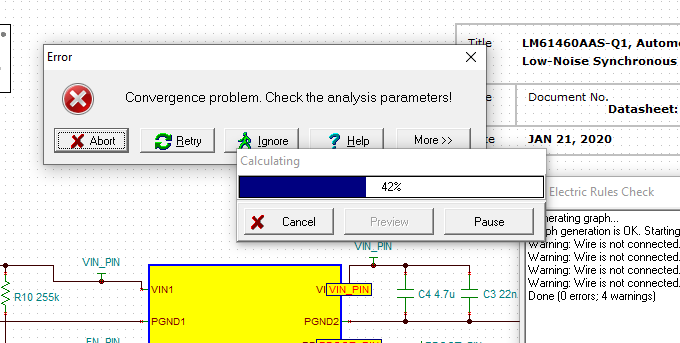

Removing two output cap from the original LM61460AAS-Q1 TINA-TI Steady State Transient Model, it will show below error:

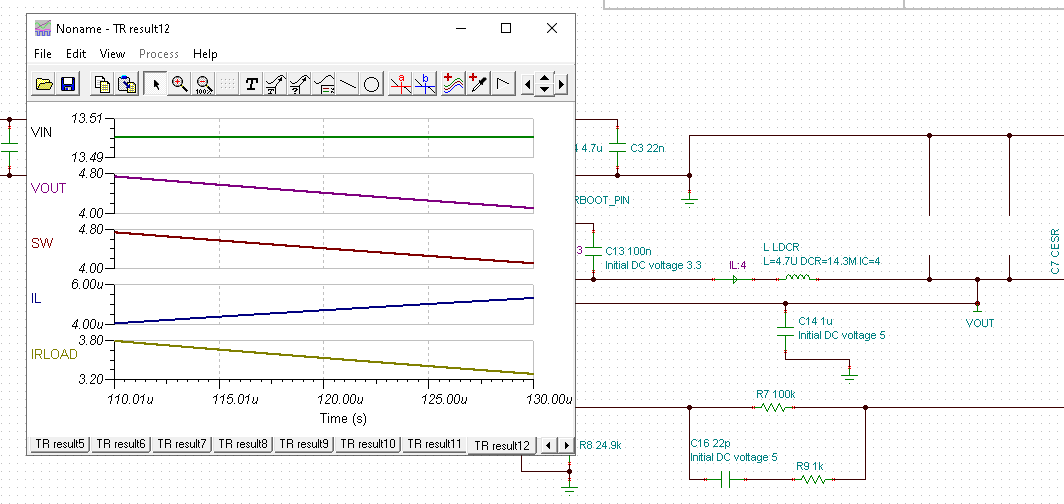

Changing the simulation mode to initial condition will still encountered convergence problem:

Thank you.

Best Regards,

Wei-Hao

0 Iven Su over 5 years ago

Hi,

I will check it from my side first and forward the case to modeling engineers, once they reply I will update their feedback on the thread, thanks.

0 Marshall_Beck over 5 years ago in reply to Iven Su

Hello Wei-Hao,

This is 400kHz switcher. More output cap is necessary for device operation (stability).

If you require output cap reduction, please configure device for 2MHz operation, assuming thermal considerations are taken into account.

My assumption is simulation is on verge of instability.

0 Aditya C over 5 years ago

Hello Wei-Hao,

I simulated the testbench available on the TI web and could not reproduce the error.

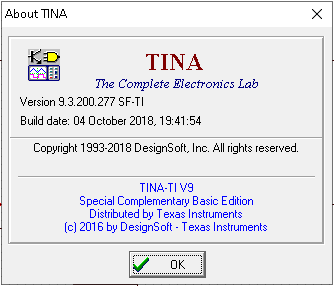

Please verify if you are using the latest TINA-TI version. ( Snap below)

Regards,

Aditya C

0 Aditya C over 5 years ago in reply to Aditya C

Hello Wei-Hao,

Please find the simulation results below by removing the capacitors.

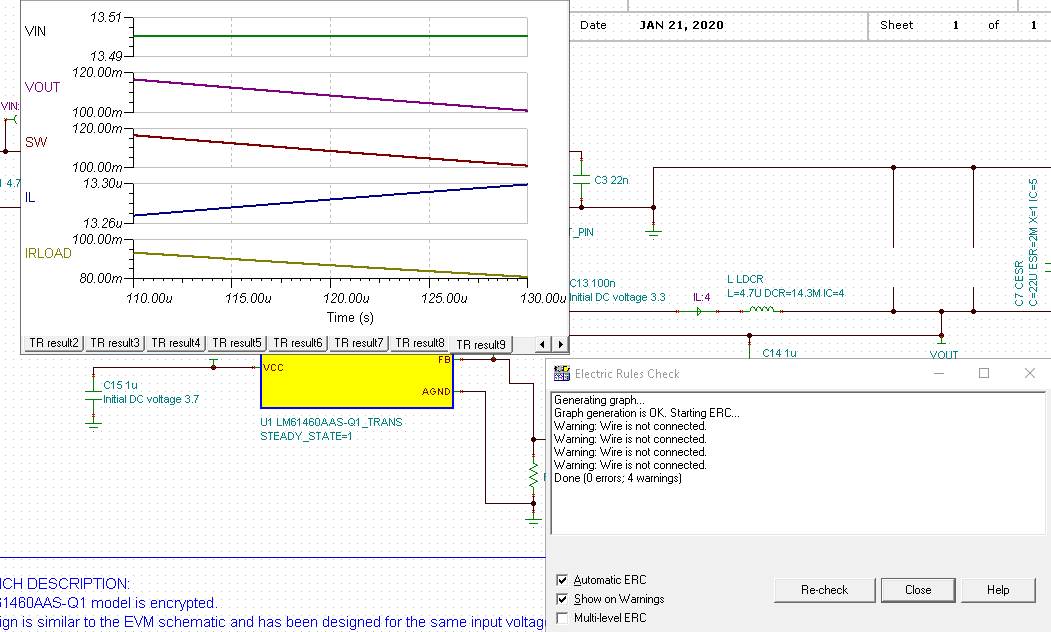

1. Run Window:

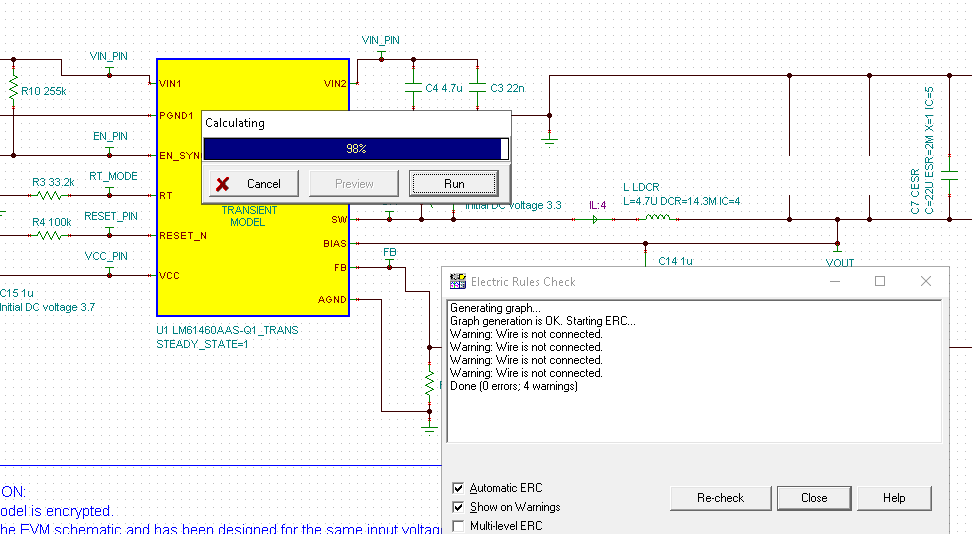

2. With Operating point calculation.

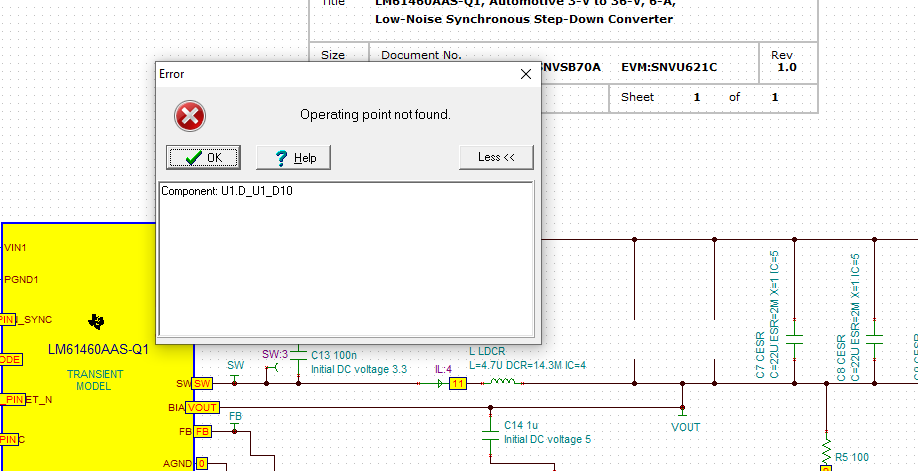

2. With Use Initial condition

Regards,

Aditya C

0 Wei-Hao Chen (TW-FAE) over 5 years ago in reply to Aditya C

Hi Aditya,

It works after updating the TINA version to the latest one, thanks for the help.

Thanks a lot

Begards,

Wei-Hao/
