LMG3410R070: Design solution request

Minqi Zhao

Part Number: LMG3410R070

Dear expert,

My customer is trying to design a high speed high-voltage pulse signal generator with our LMG341xR070. They need FET shut down fast to avoid damage when load shorted.

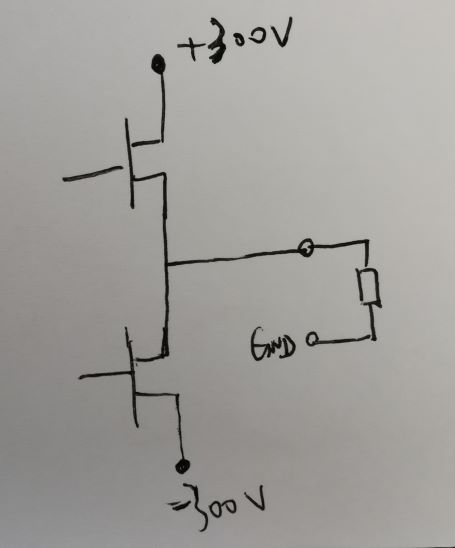

Thier circuit is half-bridge as below, can LMG3410R070 support this design (current <2.5A )? Can our EVM be easily changed to this design and how? Thanks for your support.

over 5 years ago

0 Yichi Zhang. over 5 years ago

TI__Genius 16390 points

Hello Minqi,

Thanks for contacting us. Unfortunately, the voltage across the top FET will be 600V in this case, which will exceed the recommended maximum of 480V of our FET. However, if the voltage is within our limit, say 200V and -200V, then the existing LMG3410R070 daughter card will work unmodified because there are isolations for both high side and low side.

Hope this helps.

Regards,

0 Minqi Zhao over 5 years ago in reply to Yichi Zhang.

TI__Intellectual 1660 points

Hi Yichi,

Thanks for your suggestion.
