LM5060: schematic review LM5060

Dexter Choi

Expert 2795 points

Part Number: LM5060
Other Parts Discussed in Thread: TPS25940-Q1

Dear Sir,

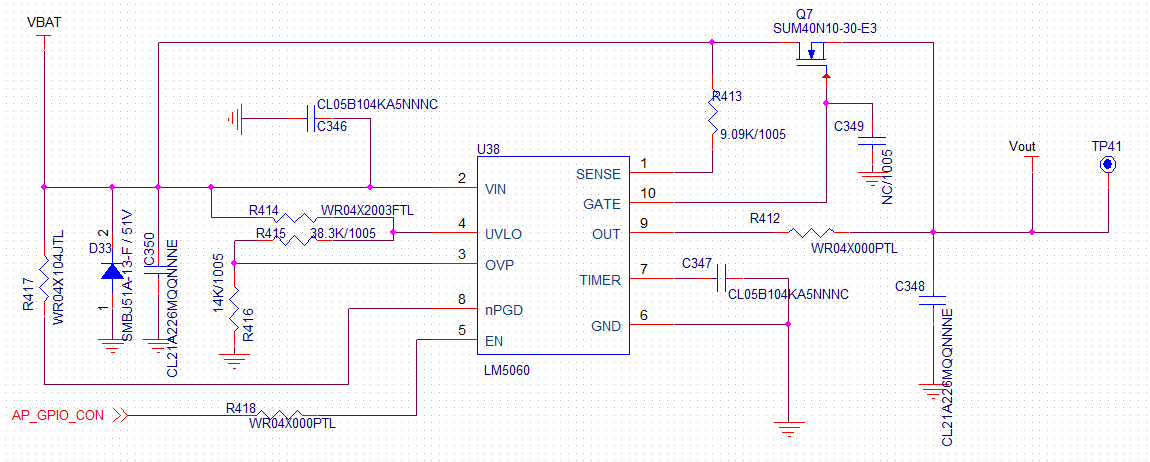

Could you help review schematic as attached file.

please let me know any comment for review.

0 Rakesh over 5 years ago

Hi Dexter,

What is the application use case ? end product ?

Schematic connections look good. What is the part number of D33, value of C349, Max output capacitance, max Vin voltage ?

Where does the output of LM5060 goes to ?

Best Regards, Rakesh

0 Dexter Choi over 5 years ago in reply to Rakesh

Expert 2795 points

Dear Rakesh,

End product is SVM (Surround view monitor) for Samsung(SM).

The output of LM5060 goes the main power such as LDO, DC/DC...etc

please refer to the spec.

0 Rakesh over 5 years ago in reply to Dexter Choi

Hi Dexter,

Schematic looks good.

TPS25940-Q1 would be better option for your system requirements.

Best Regards, Rakesh
