TPS3701: Propagation Delay while detecting an Under or Over Voltage

Shyama Agrawal

Part Number: TPS3701
Other Parts Discussed in Thread: TL431LI, INA240

Hello,

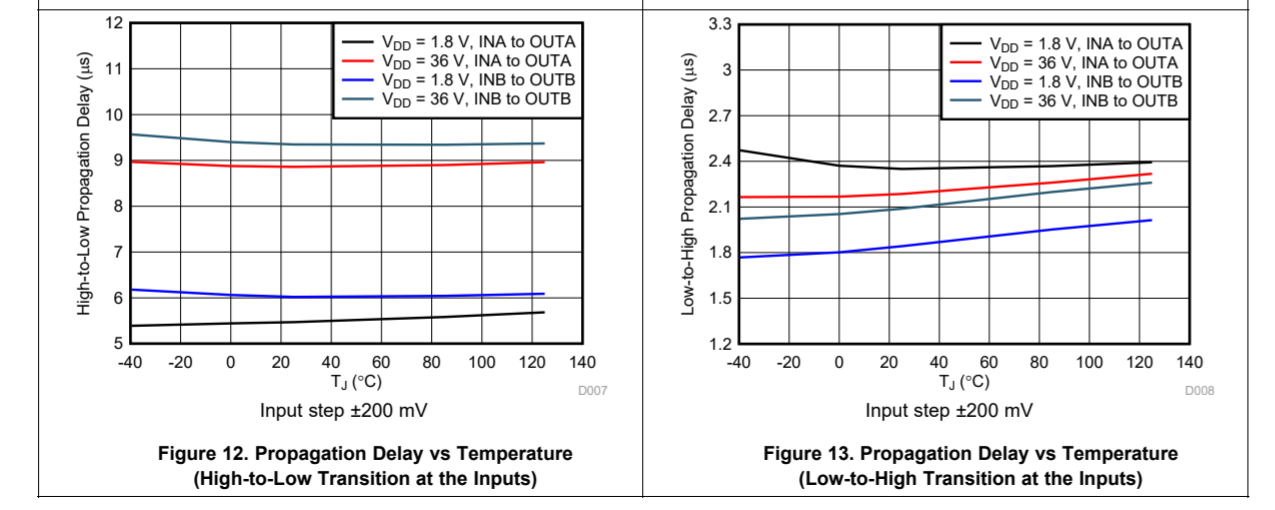

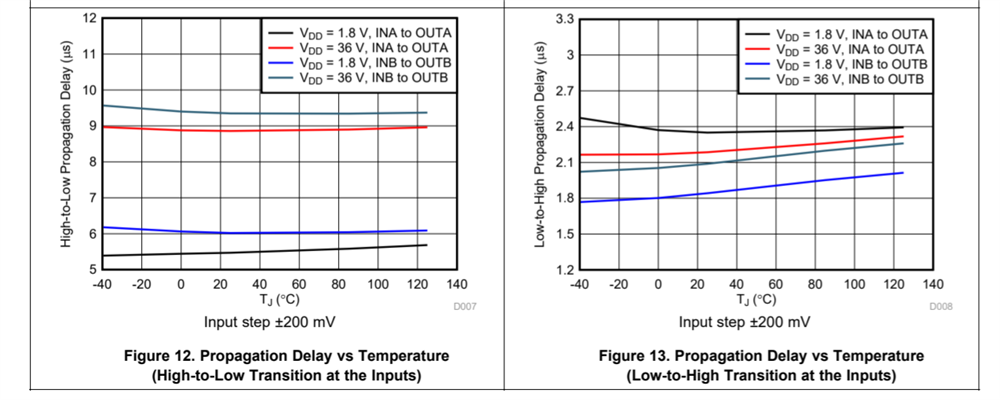

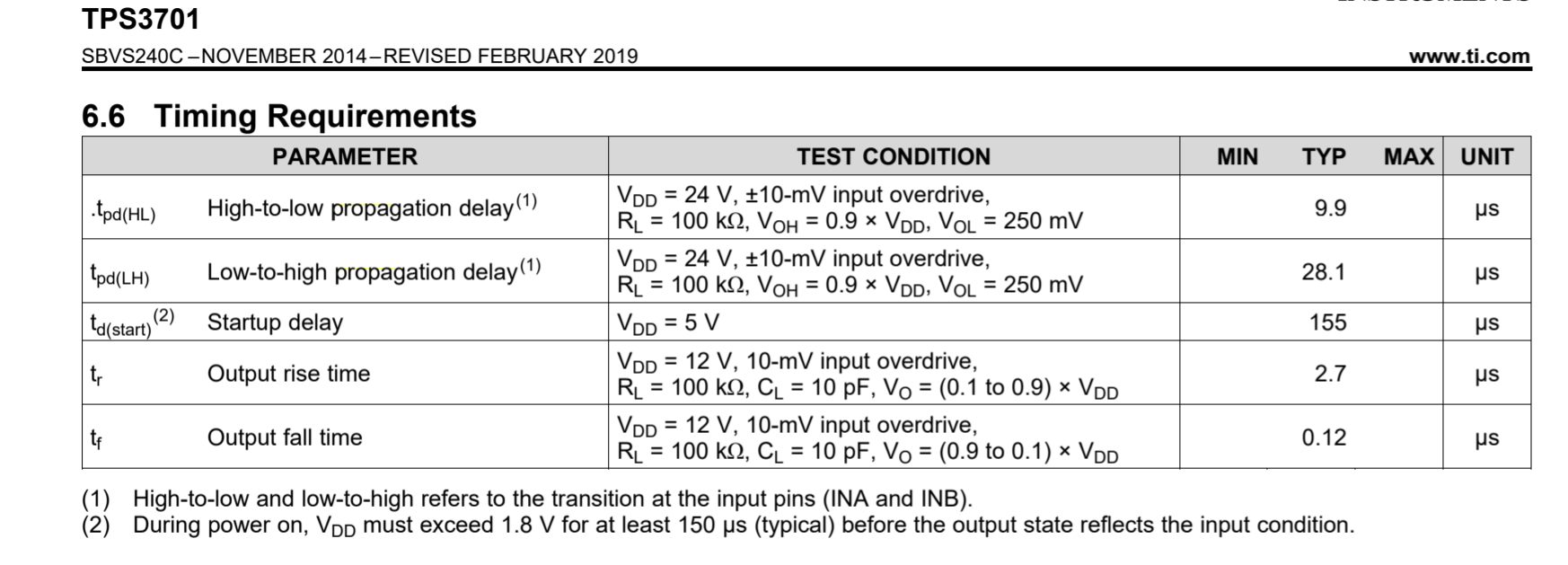

The propagation delay values given the table and graph of the datasheet doesn't seem to be in sync. Please let us know which value to consider while designing a circuit where propagation delay is critical. tPD(LH) is given as 28us in table while in graph tPD(LH) is in the range of 2-3 us.

Attached are the images of table and graph given in the datasheet and the datasheet itself. Refer Page - 6 (Table), 8(Graph)

tps3701.pdf

over 5 years ago

0 Abhinav.Sharma over 5 years ago

TI__Genius 9375 points

Hi Shyama,

I believe the graphs are out of sync with the datasheet specs, which means you should take what is in the timing requirements table as the correct data point. I will check on this further.

Thanks,
Abhinav.

0 Shyama Agrawal over 5 years ago in reply to Abhinav.Sharma

Intellectual 860 points

Hi,
Please keep me posted about the TPS3701 datasheet error issue. I want to use it for creating a over current trip signal for a current sense signal from a hall sensor. Thus, propagation delay must be kept to a minimum. It would be great if you could recommend an alternate IC too.

Would you suggest going for the design used in the attached application note?

Bidirectional current sensing with window comparator.pdf

0 Abhinav.Sharma over 5 years ago in reply to Shyama Agrawal

TI__Genius 9375 points

Hi Shyama,

Have you tried using a current sense amplifier such as the INA240 and a precision voltage reference such as the TL431LI?

Thanks,
Abhinav.
