TLC59213: TLC59213 Output Current

Shuji Ishiwata

Mastermind 8040 points

Part Number: TLC59213

Hi all,

I have a question about TLC59213.

I want to know about the output current.

"6.3 Recommended Operating Conditions" indicates output current and Duty.

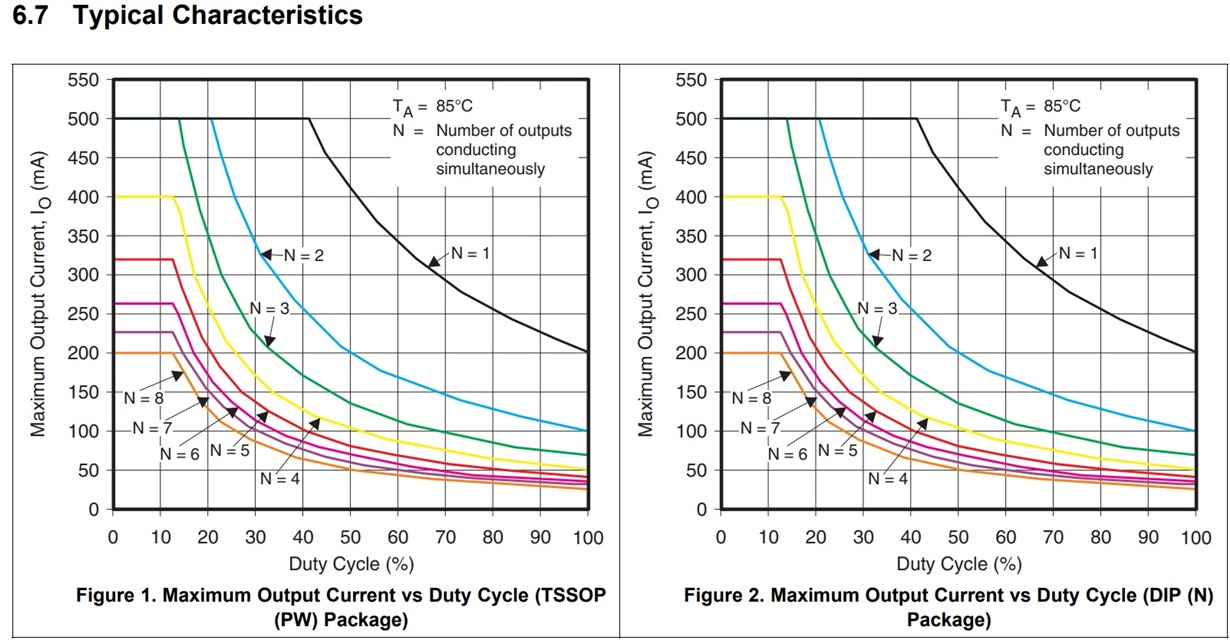

"6.7 Typical Characteristics" is a graph showing output current and Duty.

The correlation between "6.3" and "6.7" output currents and Duty is different.
What is this difference?
Package Power? Ta temperature?

Best Regards,
Ishiwata

over 5 years ago

0 Hardy Wu over 5 years ago

TI__Genius 12915 points

Hi Ishiwata,

Sorry that the device is old and I cannot find the original designer and test data, I am not sure why there are some gap between the table and graphs. I suggest to follow 6.7 figures.

0 Shuji Ishiwata over 5 years ago in reply to Hardy Wu

Mastermind 8040 points

Hi Hardy

The answer is not acceptable.
Please clarify the definitions of 6.3 and 6.7.

The customer is asking for an answer.

I think 6.7 indicates the maximum output current of the package power.
Check that this understanding is correct.

Best Regards,
Ishiwata

0 Shuji Ishiwata over 5 years ago in reply to Shuji Ishiwata

Mastermind 8040 points

Hi All,

I have been waiting for your reply, but have not heard from you.
Could you give me a response?

Best Regards,
Ishiwata

0 Hardy Wu over 5 years ago in reply to Shuji Ishiwata

TI__Genius 12915 points

Hi Ishiwata,

This thread seems the same as another one you post. So I closed this one.
