TPS23523: About IEC 62368

Hi Yusuke-san,

IEC62368 is applicable only for integrated current limiters (i.e., eFuses).

What is the end equipment ? Why IEC62368 support is needed ?

Best Regards, Rakesh

Hi Yusuke-san,

Can you please clarify on my questions.

Best Regards, Rakesh

Hi Rakesh,

Thank you for your support.
Application is a broadcast device.
I was told by the customer that the details could not be disclosed.

〉Why IEC62368 support is needed ?
I will contact you as soon as I confirm that.

Regards,
Yusuke

Hi Yusuke-san,

Thank you!

Will a positive rail supporting device TPS2663 suitable here?

Best Regards, Rakesh

Hi Rakesh-san,

Thank you for your response.

Customers are looking for efuse for negative voltage rail.
Can TPS support -52V?

Regards,
Yusuke

Hi Rakesh-san,

Thank you for your advice.
Could you tell me the simple schematic image you are thinking about?
I want to introduce it to customers.

Data sheet does not describe a circuit example assuming a negative rail.
And Is IEC62368 guaranteed for the negative voltage rail version TPS2663 circuit?

Regards,
Yusuke

Hi Yusuke-san,

This is how, I am thinking.. There won't be any impact on the current limit operation and hence the IEC62368 still applicable.

Best Regards, Rakesh

Hi Rakesh-san,

Thank you for your support.
Could tell me a little more about how to place GND

In the case of the circuit diagram that you showed,
How should the following pin settings be considered?

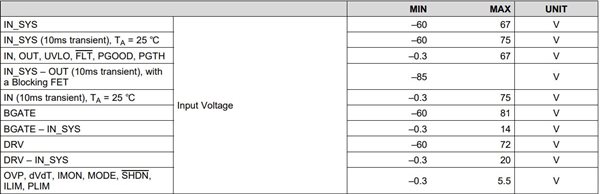

Please advise on how to set the GND of each pin and the concept of the maximum rating.

・UVLO
・OVP
・IMON
・ILIM
・dV/dT
・/SHDN

Regards,
Yusuke

Hi Yusuke-san,

Just to make it clear, the above solution with TPS2663 controls the RTN line. It does not control the -52V rail like low side controller TPS2352x. Please check whether this is acceptable for your customer.

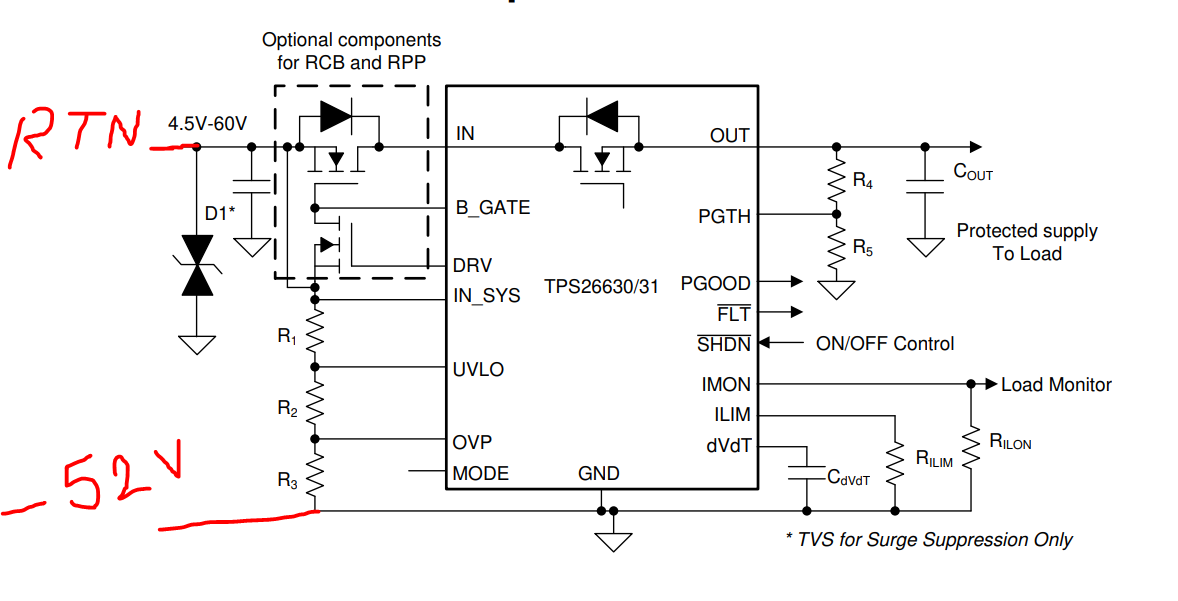

As shown above, the GND of the device is connected to -52V input. The external components at all the pins are referenced to -52V.

Best Regards, Rakesh
