LP8867-Q1: Which GND or PGND should we connect OUTX to if we don't use these OUTX?

Yoshiki Ochi

Part Number: LP8867-Q1

Hi team,

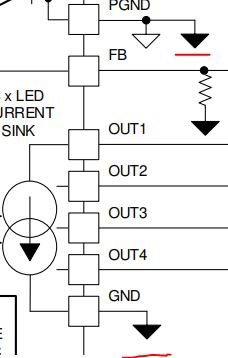

Which GND or PGND should we connect OUTX to if we don't use these OUTX?

Datasheet says "Current sink output for LP8867-Q1 This pin must be connected to ground if not used."
Which GND or PGND does ground mean?

Regards,
Ochi

0 Frank Qiu over 5 years ago

Hi Ochi-San.

PGND is the ground for the boost converter and GND is the ground for the current sink.

So you should connect the unused output pin to GND.

0 Yoshiki Ochi over 5 years ago in reply to Frank Qiu

Hi Frank,

It is really clear now. Thanks a lot.

Regards,
Ochi

0 Frank Qiu over 5 years ago in reply to Yoshiki Ochi
