TPS563219A: Layout, GND pattern under device

Katsu Matsunaga
Expert 7730 points
Part Number: TPS563219A

Hello,

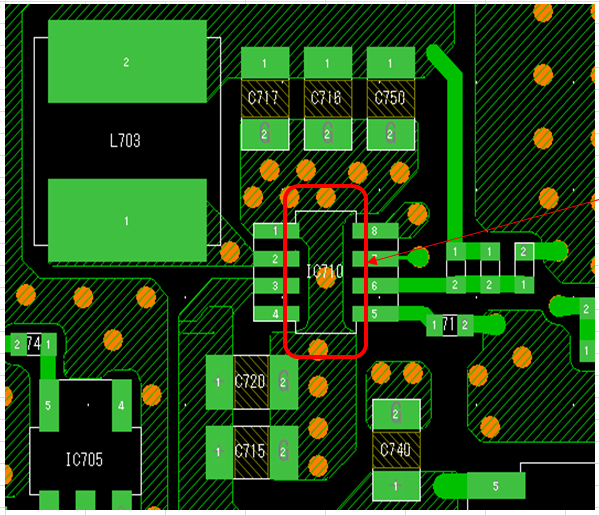

Would you please check layout of GND pattern below

IC701 is TPS563219A.

Is it okay below layout?

- GND pattern layout under the device and connects GND for VIN and VOUT.

- There is via hole under the device which connects to inner GND layer.

Please provide your comments to the layout.

Best regards, Katsu
