TPS62130: What's the negative transient spec for SW node

Shaquille Chen

Part Number: TPS62130
Other Parts Discussed in Thread: TPS53318

Dear Team,

Customer want to know what's the negative transient spec for SW node.

TPS62130 datasheet only have constant voltage spec.

They are looking for transient spec. like shown in TPS53318. ( -7V, <20ns)

Shaq

0 JohnTucker over 5 years ago

Shaq,

Unfortunately, it is not specified. If you post a waveform, I can give you my opinion.

0 Shaquille Chen over 5 years ago in reply to JohnTucker

Hi Tucker,

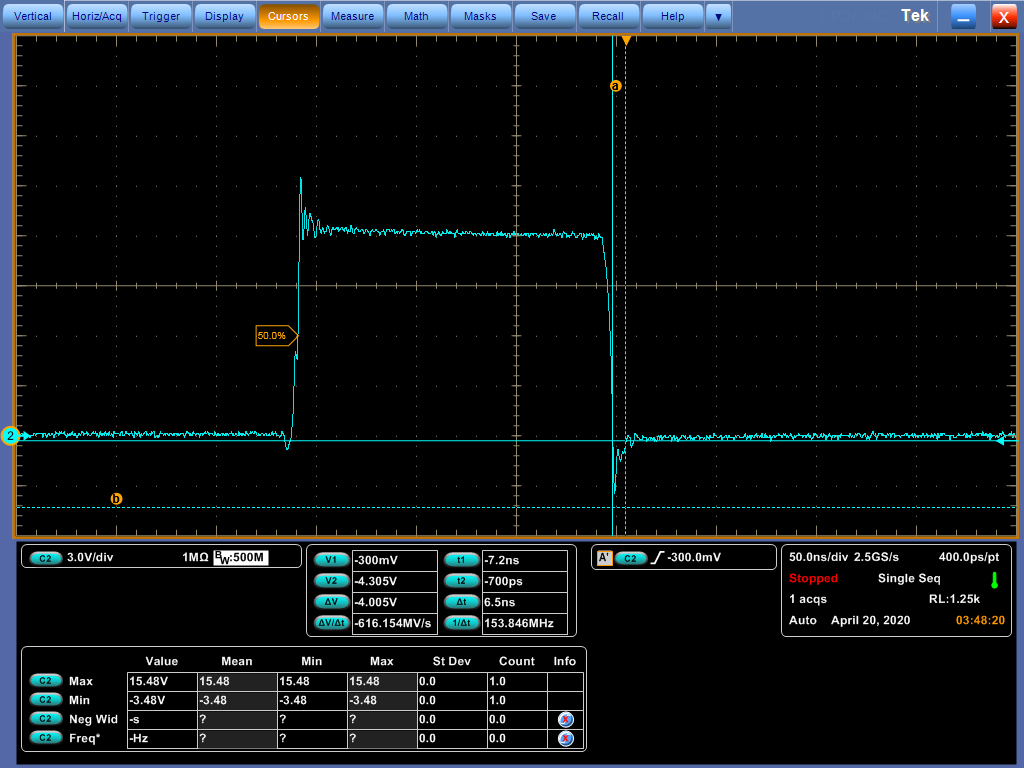

Here is customer's waveform. There are 6.5ns duration lower than -0.3V.

0 JohnTucker over 5 years ago in reply to Shaquille Chen

Shaq,

That looks about normal. If you use a differential probe (preferred method) you will see it significantly reduced.
