BQ78350-R2-DEVICE-FW: Documentattion regardng the BQ78350-R2-DEVICE-FW and the BQStudio

Albert Galofre

Intellectual 600 points

Part Number: BQ78350-R2-DEVICE-FW

Hi there,

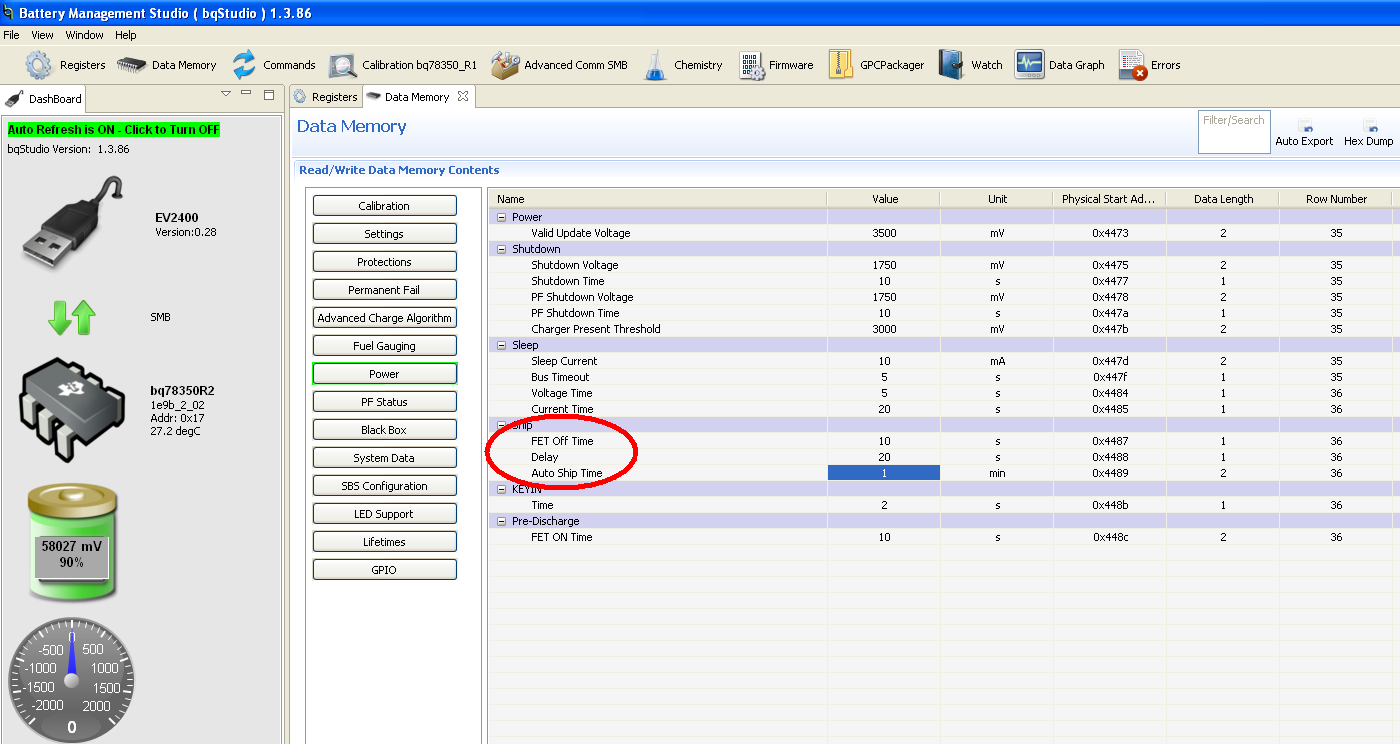

I'm working with the device BQ78350 with R2 release and the BQstudio, as you can see in the picture attach.

I would like to know where I can find a TI pdf (application note) regarding the parameter: Power->Ship>Auto ship time.

I have read the SLUUAN7B pdf, but I don't find this parameter.

In fact, I would like to know if there is a documentation regarding the BQ78350-R2-DEVICE-FW behavior. And how interact with the BQStudio.

Thanks a lot

over 5 years ago

0 Matt Sunna over 5 years ago

TI__Guru* 81034 points

Hi Albert,

For the BQ78350-R2, you need to refer to the BQ78350-R1 Technical Reference Manual along with The bq78350-R1 TRM Addendum for the bq78350-R2 Device.

In this document, you will find the description for Auto Ship Time.

One other app note that is helpful is the Using the BQ78350-R1 document: www.ti.com/.../slua924

Best regards,

Matt

0 Albert Galofre over 5 years ago in reply to Matt Sunna

Intellectual 600 points

Thanks!!!

I have fount it.

One more thing: when the KEYIN pin is active the DSG path is disable. And when the PRES pin is active all the path are disable.

In this conditions the SMB bus is available or disable? I mean the device will answer the SMBus commands, when some of this pins are active?

thanks a lot.

0 Matt Sunna over 5 years ago in reply to Albert Galofre

TI__Guru* 81034 points

Hi Albert,

Yes, the SMBus should still be available regardless of the KEYIN and PRES pin conditions.

Best regards,

Matt

0 Albert Galofre over 5 years ago in reply to Matt Sunna

Intellectual 600 points

ok thanks.

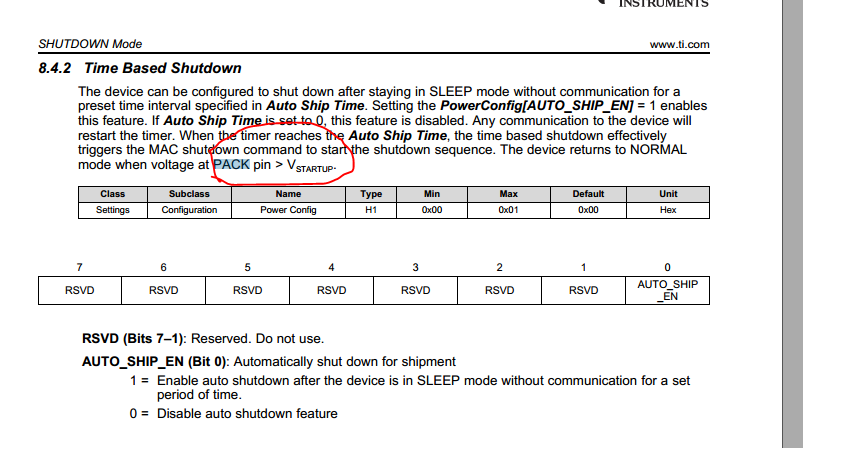

One more thing: the device can be shutdown based on time WITHOUT communications, see below.

Nevertheless, the device will restore the normal mode when "PACK pin > Vstartup".

Which PACK pin? What Vstartup?

thanks

0 Matt Sunna over 5 years ago in reply to Albert Galofre

TI__Guru* 81034 points

This appears to be an error in the documentation. The device will return to NORMAL the same way as for the MAC Shutdown command (when voltage at TS1 pin > VBOOT). I will get this corrected in the next revision of the document.

Best regards,

Matt

0 Albert Galofre over 5 years ago in reply to Matt Sunna

Intellectual 600 points

I expected it.

I'm going to try it in the lab.

Thanks a lot!!!!
