BQ24075: Pls help check the sch?

Sara Jia

Part Number: BQ24075

Hi Sir,

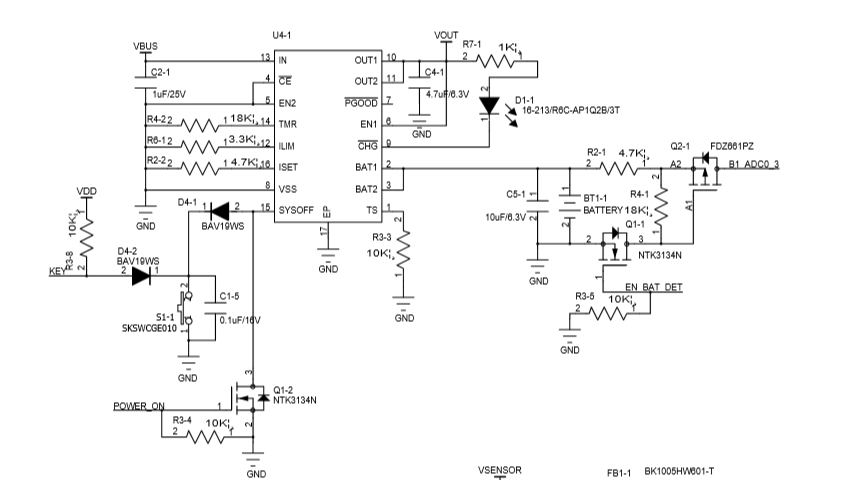

We encountered a problem when using BQ24075. We found that when our product is powered off and charged, it cannot be charged normally. We can only charge the battery when it is powered on. The schematic diwe used is as follows:

Pls give some recommendations on this case.

Thanks

Sara

over 5 years ago

0 Raheem over 5 years ago

TI__Mastermind 21590 points

Hello,

Can you elaborate on what you mean by powered off? Is VIN absent in this state? Or is there no load on VOUT?

0 Sara Jia over 5 years ago in reply to Raheem

Expert 2975 points

Hi Raheem,

Power off means no load.

Thanks.

Sara

0 Raheem over 5 years ago in reply to Sara Jia

TI__Mastermind 21590 points

What is the battery voltage this is observed? What is VIN voltage and what is PMID voltage?

Is SYSOFF high or low?

0 Sara Jia over 5 years ago in reply to Raheem

Expert 2975 points

HI Raheem,

What do you mean PMID?

Thanks very much.

Sara

0 Raheem over 5 years ago in reply to Sara Jia

TI__Mastermind 21590 points

I meant VOUT not PMID

0 Sara Jia over 5 years ago in reply to Raheem

Expert 2975 points

Hi Sir,

The Battery volt is 3.92V, Vin is 5V. Vout is 4.2V.

Sara

0 Raheem over 5 years ago in reply to Sara Jia

TI__Mastermind 21590 points

The DPPM threshold is 4.3V for this device. This means that the battery will not be charged until VOUT goes above 4.3V. You can increase the Input current limit to ensure the this doesnt occur.
