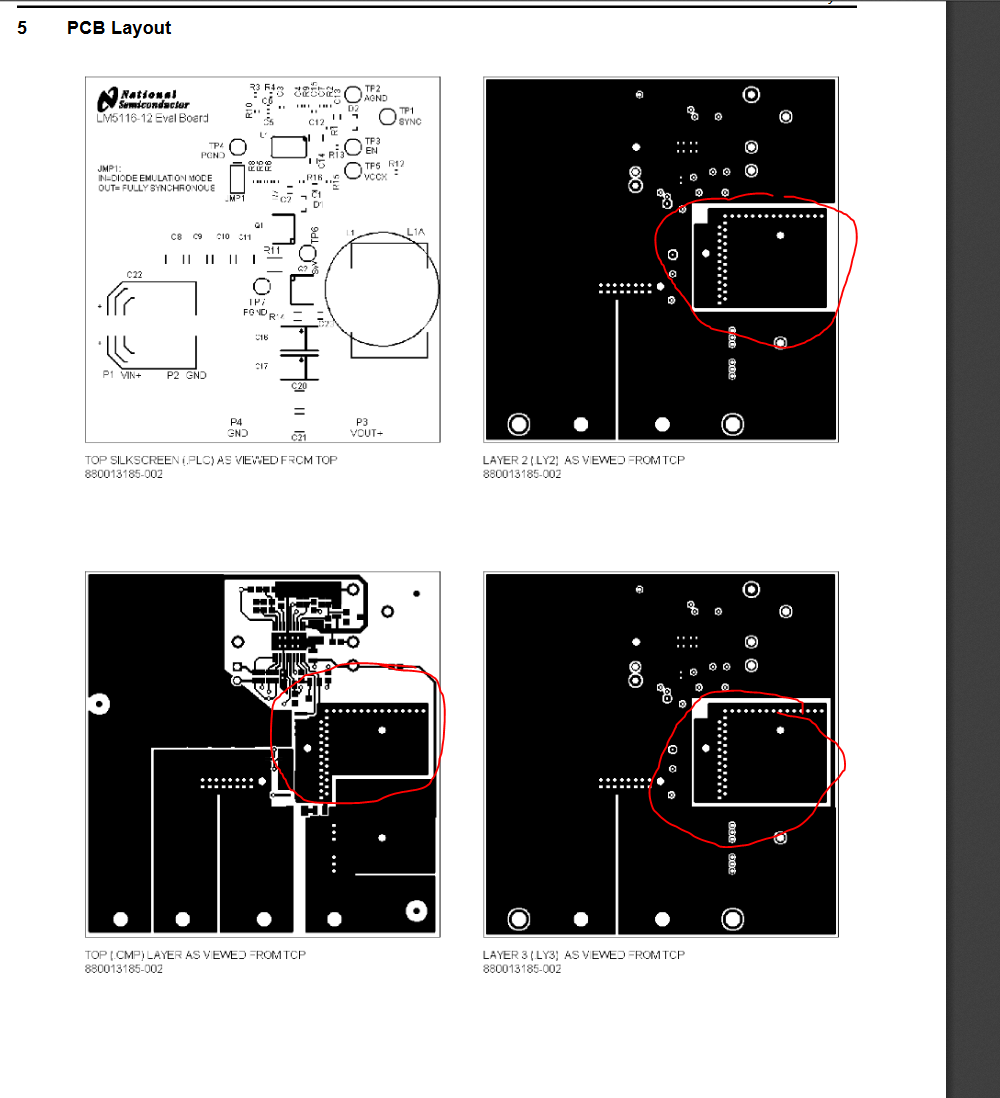

I do not understand, why there is always a isolated copper for each layer under SW node.
This thread has been locked.
If you have a related question, please click the "Ask a related question" button in the top right corner. The newly created question will be automatically linked to this question.
Tool/software: WEBENCH® Design Tools
I do not understand, why there is always a isolated copper for each layer under SW node.
The SW node should only be routed in top layer if possible.
This was most likely oversight by PCB designer.
Sorry for confusion.
For more info on EMI layout techniques, please visit: https://training.ti.com/emi-fundamentals
