LM5069: LM5069 When OVP & UVLO TIMER waveform

GARETH OU

Guru 11415 points

Part Number: LM5069

When OVP and UVLO , Will TIMER have a red waveform?

Thanks

0 Rakesh over 5 years ago

Hi Gareth,

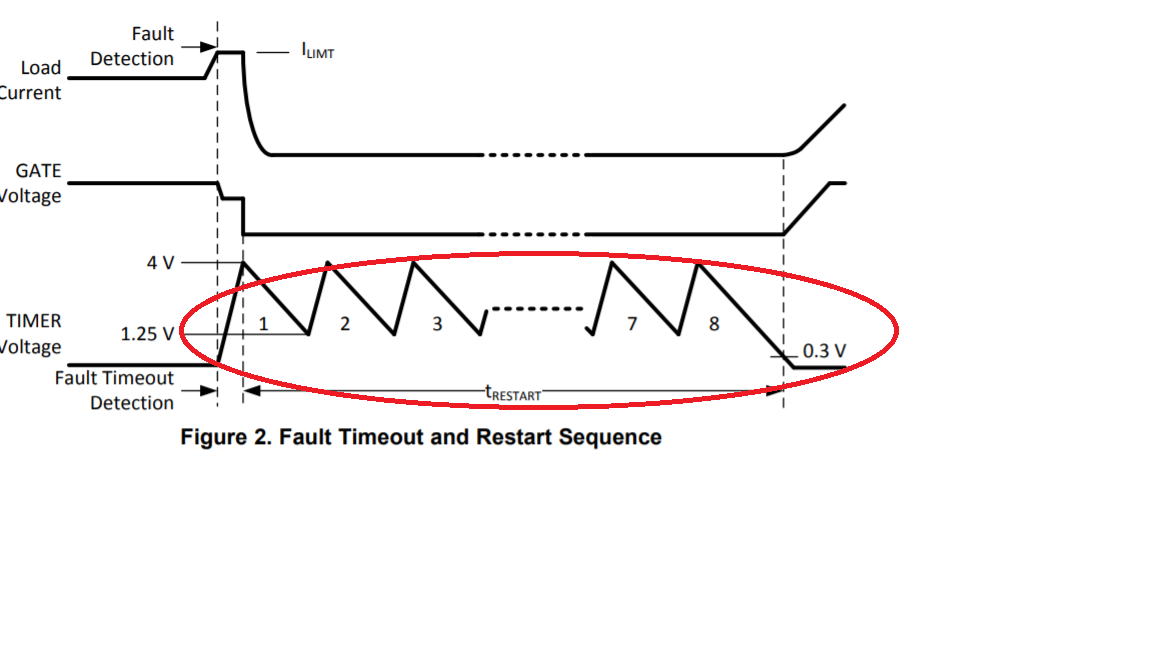

No. The timer cycles only for over current fault but not UVLO, OVP events

Best Regards, Rakesh

0 Tommy Tzeng over 5 years ago in reply to Rakesh

Genius 5780 points

Hi Rakesh,

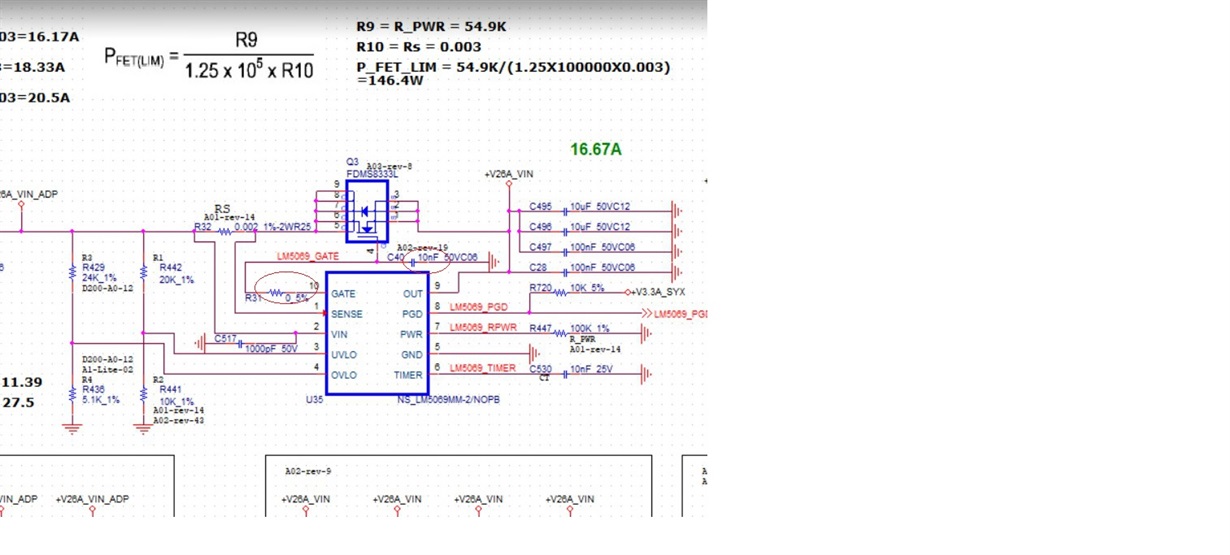

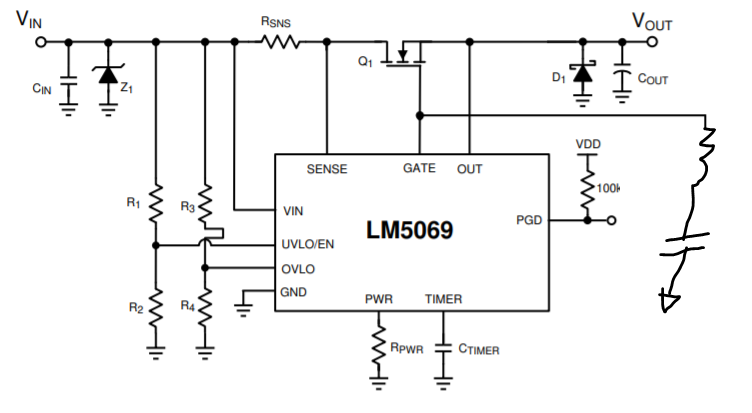

may i know LM5069 pin10 GATE pin. Can use RC delay to adjust soft start? like the as below schematic R31 & C40.

0 Rakesh over 5 years ago in reply to Tommy Tzeng

Hi Tommy,

Yes, the RC should be in series and then connected to GATE pin as shown below. This way, the R does not affect the turn-off speed of the MOSFET.

Best Regards, Rakesh
