TPS65131: TPS65131 temp simulation data (junction temp / case temp) per two cases.

Jung-Ho Seo

Expert 5940 points

Part Number: TPS65131

Hi BU expert,

my customer (LG display in Korea) is considering to use TPS65131 same in new project.

Before that, They need to simulate temperature of LCD panel based on IC’s temperature data.

Would you help me to get answer on temp simulation data of per below condition ?

if simulation is not possible, Calculated temperature(Tj / TC) is OK.

Condition is below. MP schedule is 1Q next year. IC’s usage is to provide positive/negative to source driver and gamma in Panel.

Case 1) VCC 3.3V, VDDP 6.0V(Out current 50mA), VDDN -6.0V(Out current 50mA)

Case 2) VCC 3.3V, VDDP 6.0V(Out current 320mA), VDDN -6.0V(Out current 320mA)

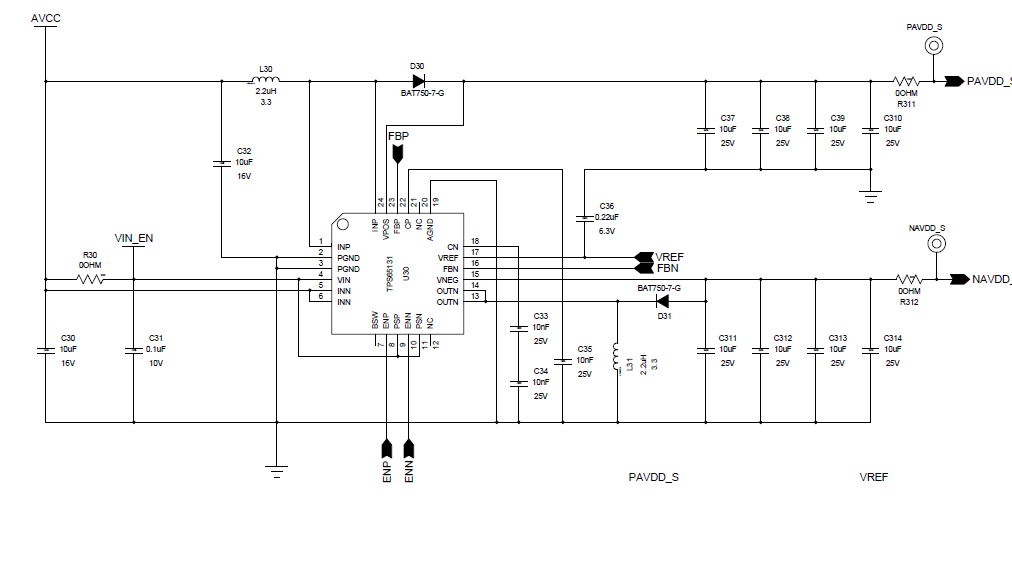

external_image

over 5 years ago

0 Liaqat Khan over 5 years ago

TI__Mastermind 18550 points

Hello Jung-Ho:

Tj/Tc is dependent on board and system design itself (how well thermal pad is connected to copper planes, how large copper planes are, if there is any circulating air in the system etc.). I can provide you an idea of measured temperature on the TPS65131EVM board under customer's conditions and that should be a good starting point for customer. Please allow me couple of days to make this measurement and get back to you.

Kind Regards,

Liaqat

0 Jung-Ho Seo over 5 years ago in reply to Liaqat Khan

TI__Expert 5940 points

Hi Liaqat,

Very thanks for your kind support. No problem to wait couple of days..

Regards,

JH.

0 Liaqat Khan over 5 years ago in reply to Liaqat Khan

TI__Mastermind 18550 points

Hi JH,

I measured following temperatures directly on case top of TPS65131 device.

Customer case 1: 32.1C

Customer Case 2: 58.4C

I hope this provides some idea for customer system use.

Kind Regards,

Liaqat
