WEBENCH® Tools/TPS61022: TPS61022 Webench Simulations

Guangyan Liu

Part Number: TPS61022

Tool/software: WEBENCH® Design Tools

Hi Team

Good day

Our customer use the Webench to simulate the TPS61022 reference design . In the data sheet , the reference design is Vin 2.75-4.35V /Vout 5V / Iout 3A

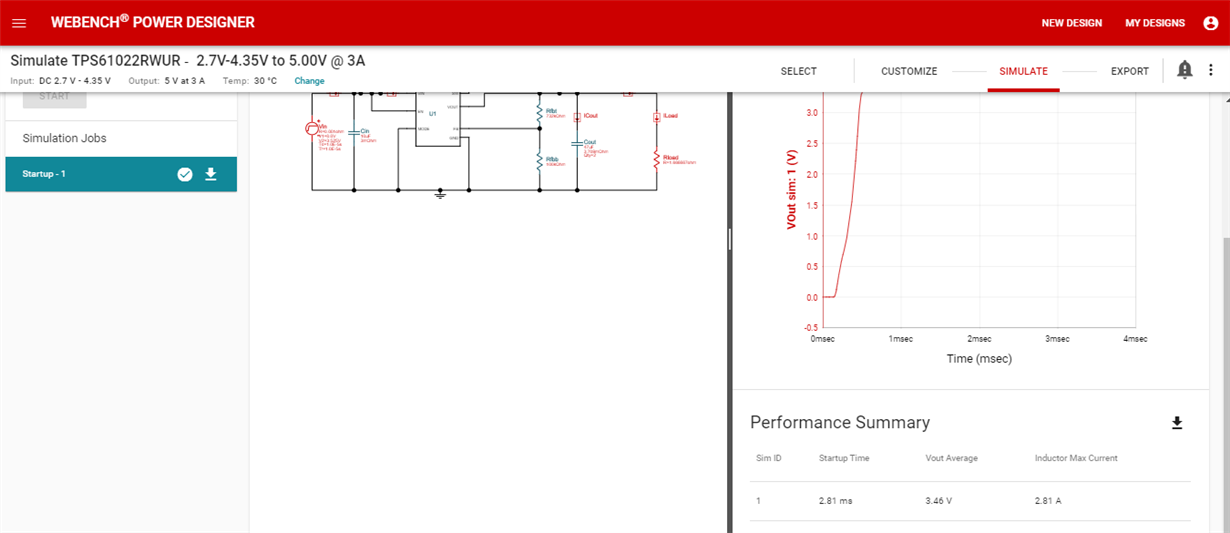

In the Webench system , it can create the schematic , but when we run the simulation . the output only 3.46V, here is the screenshot

I also use the TINA to simulate it , the same issue happened , I found if I change the Vin lower than 2V or current lower than 1A , it will be OK

So could you provide me the explanation for this phenomenon ?

Best regards

Leon.liu

over 5 years ago

0 Zack Liu over 5 years ago

TI__Mastermind 34231 points

Hi Leon,

Can you share your TINA file? I'll have a look at it.

0 Guangyan Liu over 5 years ago in reply to Zack Liu

TI__Intellectual 2130 points

Hi Zack

Thank you for your reply

I export the TINA file from the webench , here it isWBDesign155_TINA-TI.zip

BR,

Leon.liu

0 Zack Liu over 5 years ago in reply to Guangyan Liu

TI__Mastermind 34231 points

Hi Leon,

Attached is the TINA simulation that I made some little changes.

The main reason that you found the device cannot run is because TPS61022 has a soft-start input inrush current limit. So it cannot startup from a heavy load.

TPS61022 TINA Simulation.TSC

0 Guangyan Liu over 5 years ago in reply to Zack Liu

TI__Intellectual 2130 points

Hi Zack

Thank you for your help

I need to confirm one thing with you , the rush limitation , is this only happened in the simulation , does it will influence the customer application , our customer

will use the TPS61022 with 2A load at least .

Best regards,

Leon.liu

0 Zack Liu over 5 years ago in reply to Guangyan Liu

TI__Mastermind 34231 points

Hi Leon,

This input startup current limit only happens at startup.

Please see the datasheet part 7.3.2. There is detailed explanation.
