WEBENCH® Tools/LM2775: LM2775 WEBBENCH BOTTOM PCB LAYOUT

jae woo so

Part Number: LM2775

Tool/software: WEBENCH® Design Tools

HI,

I would use LM2775 device, and if simulating webench, there is cut-out in the pcb bottom.

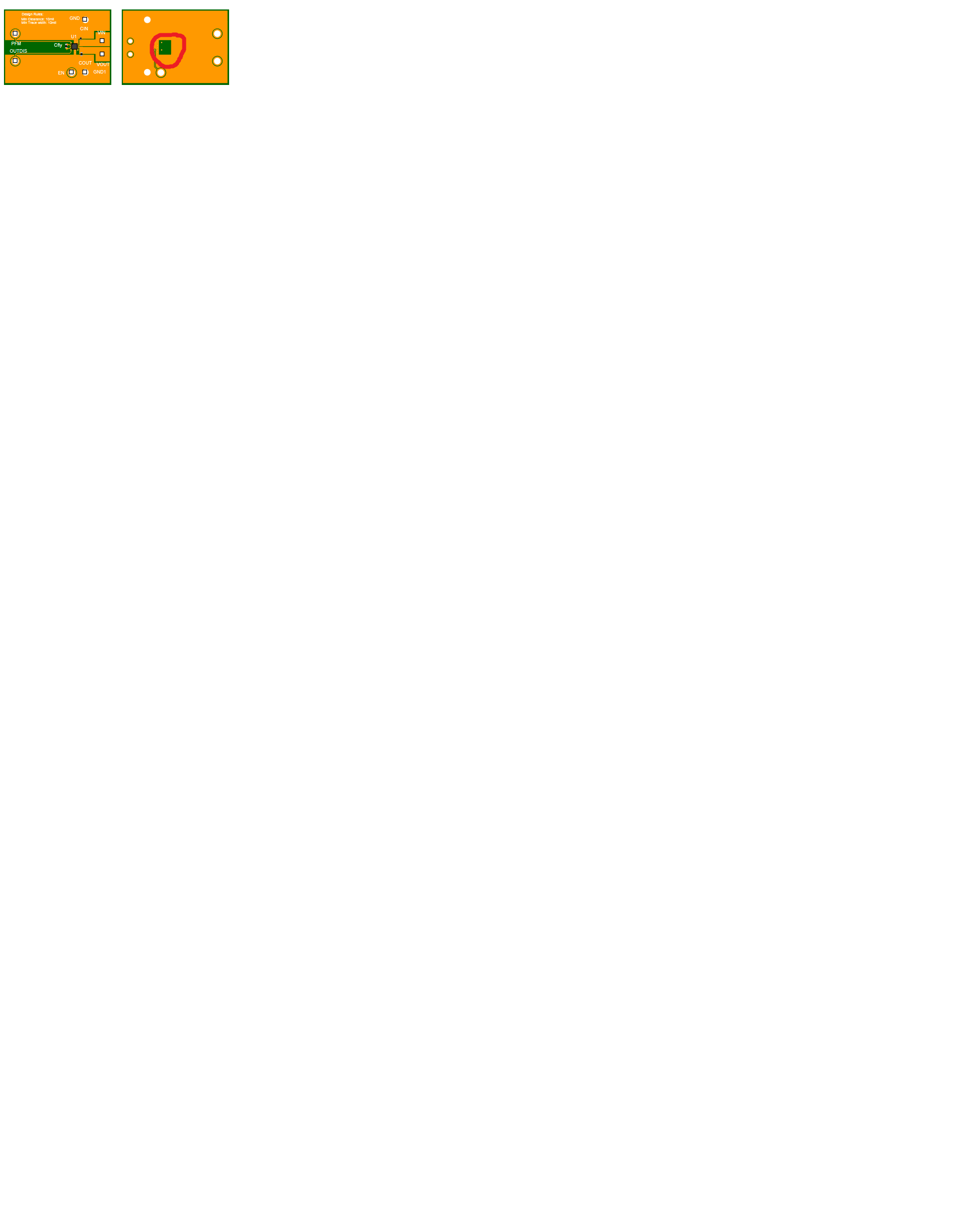

if pcb is 2 layer(top/bottom side), cut-out is below picture.

but, if i use 10 layer PCB, is cut-out all layer??

0 jae woo so over 5 years ago

HI,

I would use LM2775 device, and if simulating webench, there is cut-out in the pcb bottom.

if pcb is 2 layer(top/bottom side), cut-out is picture.

but, if i use 10 layer PCB, is cut-out all layer??

0 Youhao Xi over 5 years ago in reply to jae woo so

Hi Jae,

Thank you for consider our product. Yes you should.

Best Regards,

Youhao Xi, Applications Engineering
