WEBENCH® Tools/LM5164: Wide range power supply design

Muralikrishna Konukati

Part Number: LM5164

Tool/software: WEBENCH® Design Tools

Hi,

I am muralikrishna from Innolia Energy. I am using LM5164 IC in my design but i am facing some issues with this. Below changes made in the circuit and below are the observations.

1) Placed 68uH/1.3A inductor By using this IC has burn out.

2) Placed 68uH/2A inductor, i was getting 12V output but there is lot of noise and gradually the out has been decreased.

3) Placed 47uH/2.35A, now i am getting 4V output but there is lot of noise.

Attached schematics. Please help me out of these issue.

LM5164.docx

over 5 years ago

0 Iven Su over 5 years ago

TI__Expert 8245 points

Hi,

Could you please also help upload your layout? Thanks.

0 Muralikrishna Konukati over 5 years ago in reply to Iven Su

Prodigy 170 points

Hi Iven,

Thanks for your reply. Initially we are working on dot pcb, Once this is proved then we are planning to go for layout.

Thanks & Regards,

Muralikrishna.

0 Iven Su over 5 years ago in reply to Muralikrishna Konukati

TI__Expert 8245 points

Hi,

Then please take a picture of your board, maybe the layout and traces need to be improved, thanks.

0 Muralikrishna Konukati over 5 years ago in reply to Iven Su

Prodigy 170 points

Hi Iven,

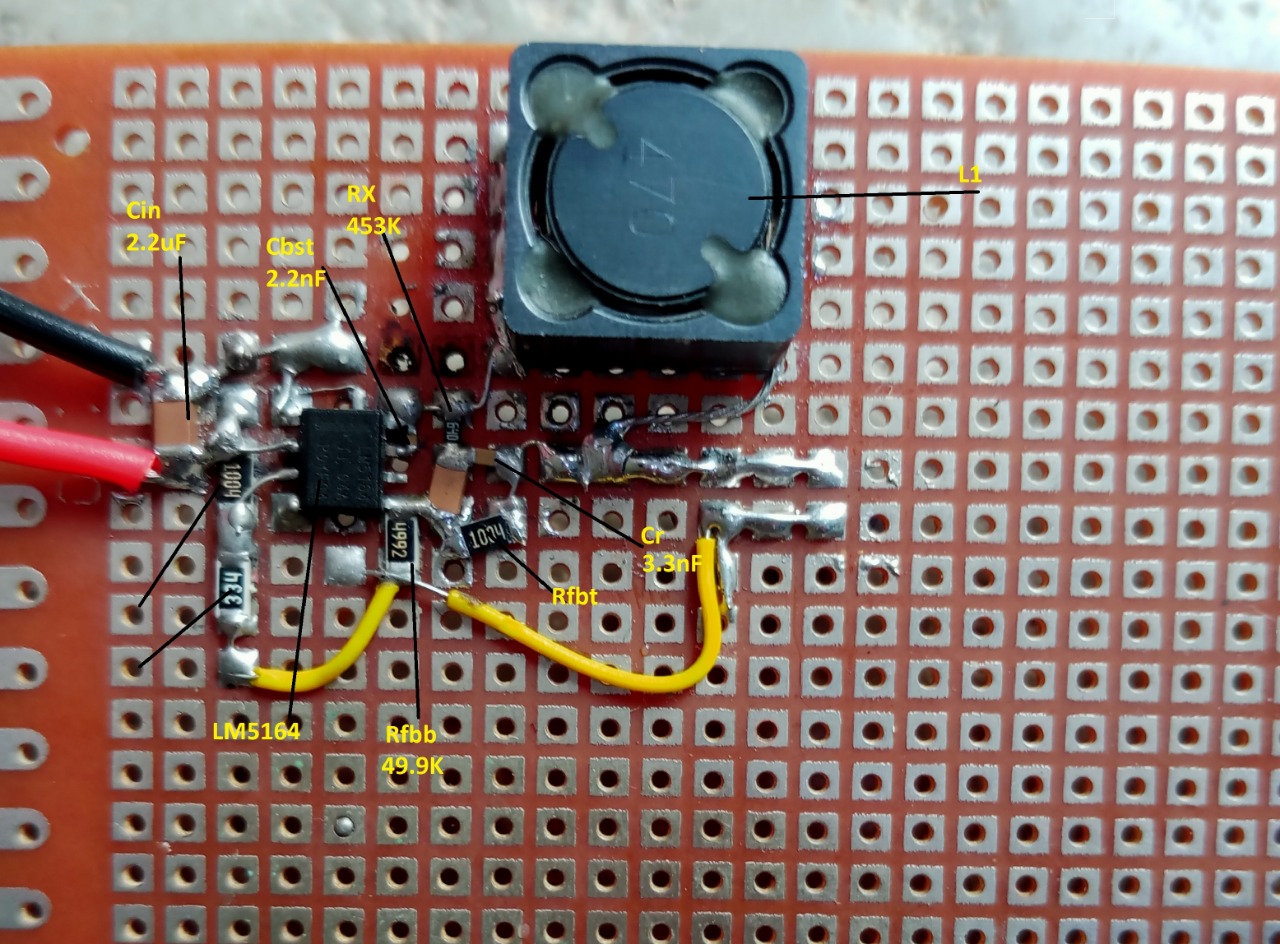

Attached image file.

Thanks & Regards,

Muralikrishna.

0 Iven Su over 5 years ago in reply to Muralikrishna Konukati

TI__Expert 8245 points

Hi,

Could you please mark all components designators? It looks there is no Ron and Cout in your board. Thanks.

0 Muralikrishna Konukati over 5 years ago in reply to Iven Su

Prodigy 170 points

Hi Iven,

Please find attached image with reference designator.

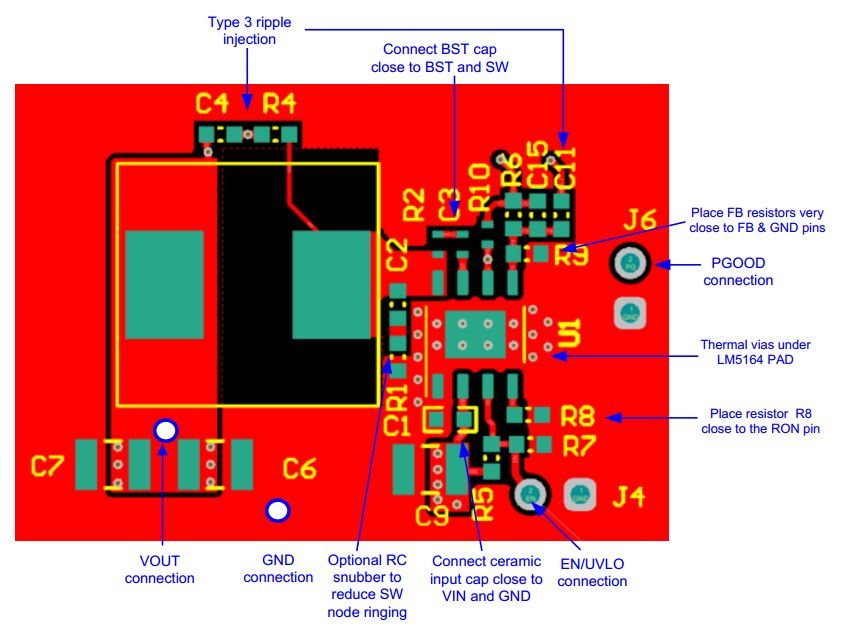

I am sharing my final schematic and Layout file, Can you please review and share your valuable feedbacks if any. Please suggest if anything to be implemented in the circuit still to reduce noise.

Thanks & Regards,

Muralikrishna.

9701620426.LM5164 design.zip
