TPS62088: How to measure stability in time domain?

Tony Wang5

Part Number: TPS62088
Other Parts Discussed in Thread: TPS54620

Hi,

Could you please tell me how to measure stability of TPS62088 in time domain?

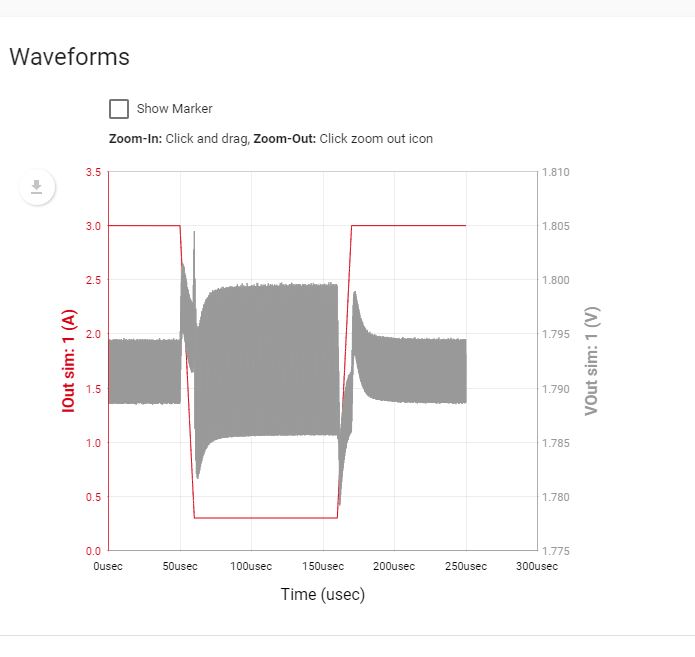

From the load transient simulation waveform below, it might not be possible to measure its stability from time domain.

Thanks,

Tony

0 Excel Regidor over 5 years ago

Hi Tony,

You can use the transient load waveform to give you a ball park on the phase margin. See attached app note for your reference.

It would be better to use the transient response based on the pspice model instead of Webench model for loop stability analysis.

Best regards,

Excel

0 Tony Wang5 over 5 years ago in reply to Excel Regidor

Hi Excel,

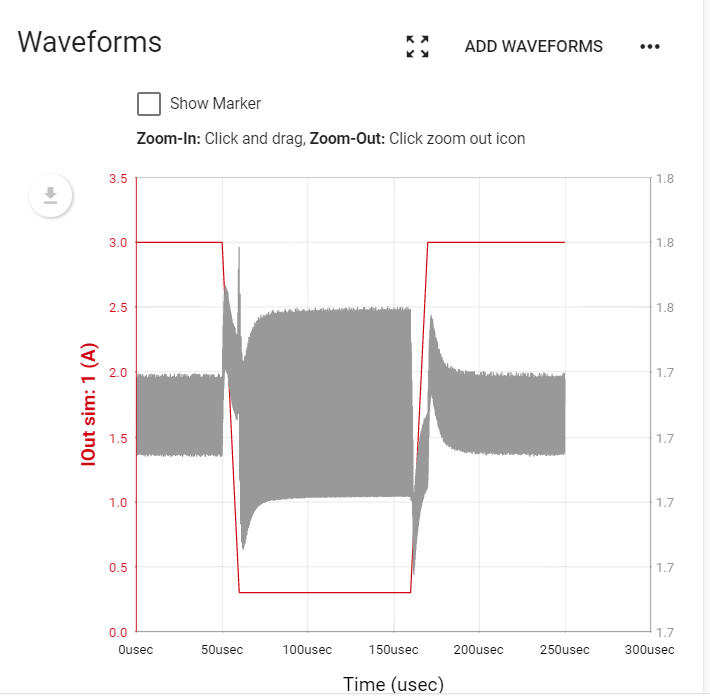

from first two attached load transient simulation waveforms,

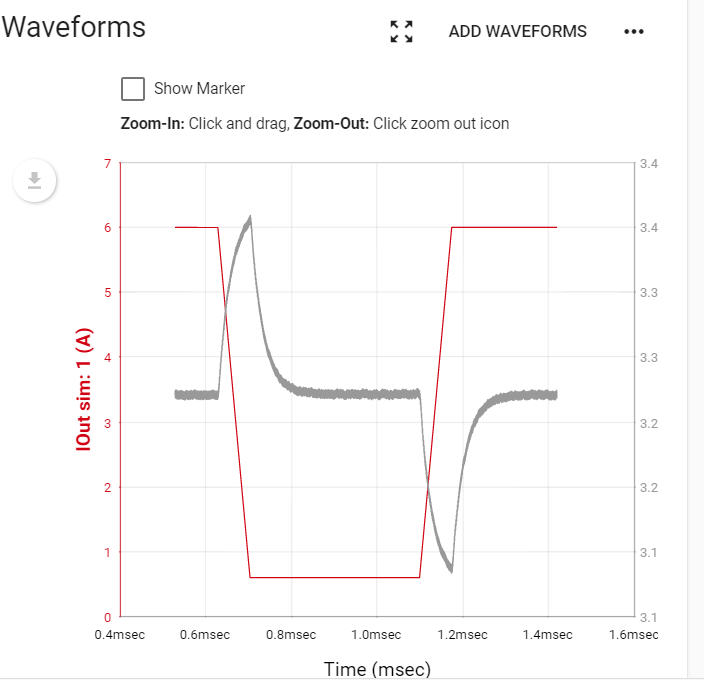

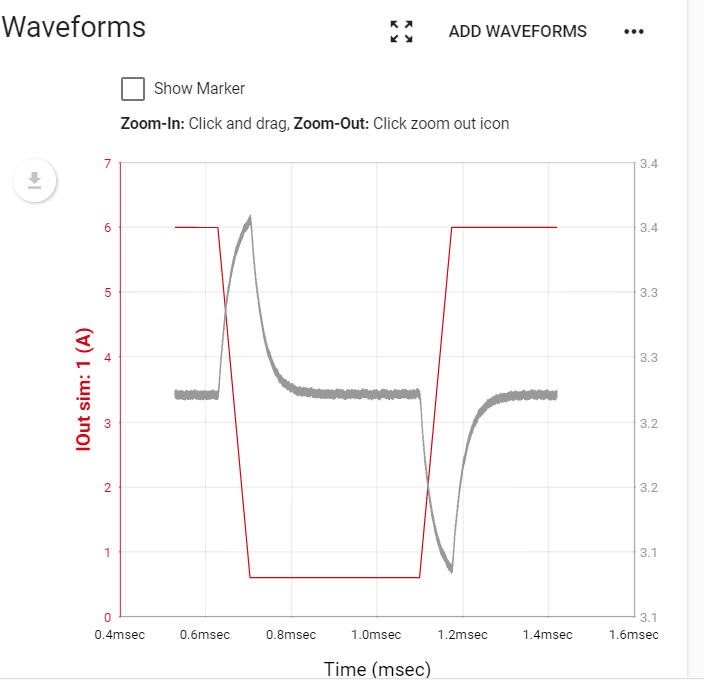

TPS54620 load transient waveform has a clear output curve, so we can see rings, but TPS60288 don't have a clear output waveform, we can't see rings.

without seeing rings, How can we estimate phase margin?

Thanks,

Tony

TPS62088,

TPS54620

0 Excel Regidor over 5 years ago in reply to Tony Wang5

Hi Tony,

You can use the Pspice model to have a clearer the transient response waveform. Please download the model in the link below.

Best regards,

Excel

0 Excel Regidor over 5 years ago in reply to Excel Regidor

Hi Tony,

If you don't have further queries, I will close this thread. You can re-open it but just posting your questions or comments.

Best regards,

Excel

0 Tony Wang5 over 5 years ago in reply to Excel Regidor

Hi Excel,

Please close this thread. Thanks for your help.

Tony
