BQ40Z80EVM-020: Connect Error of Battery Management Studio

Jinwook Baek1

Prodigy 90 points

Part Number: BQ40Z80EVM-020
Other Parts Discussed in Thread: BQSTUDIO, BQ40Z80, EV2400

Hi, I'm luke.

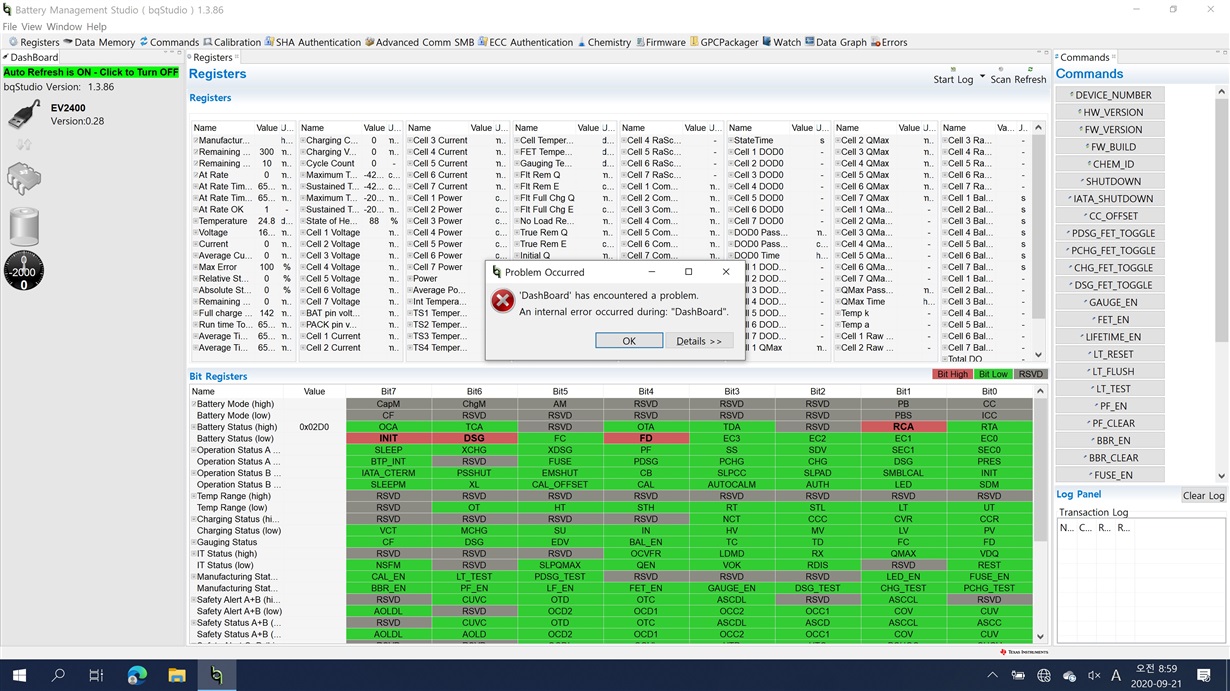

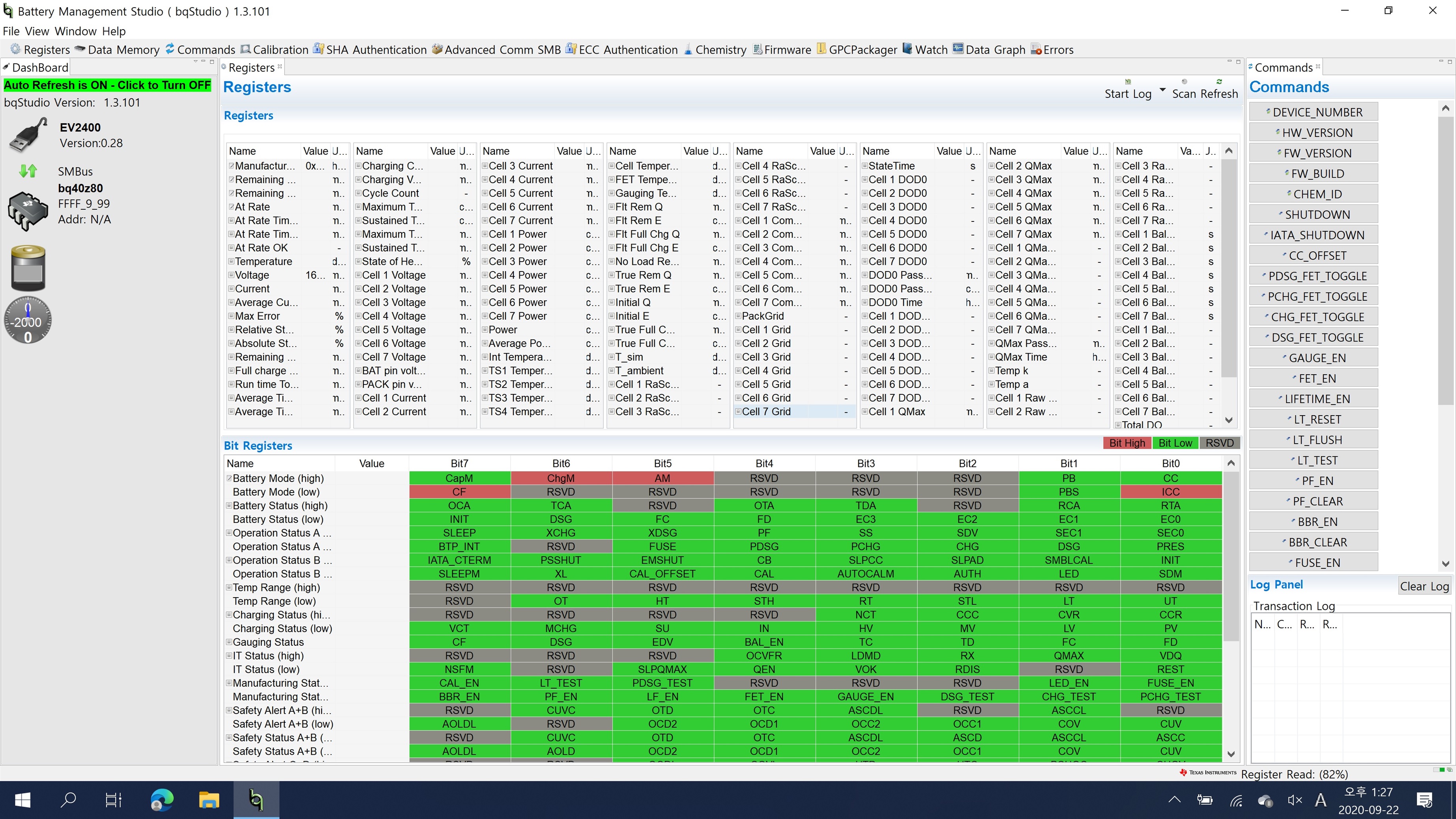

I'm preparing the development of BMS. But I got a error like below figure.

I'm trying to find a solution with reading datasheet but I haven't found the cause of the problem yet.

over 4 years ago

0 Wyatt Keller over 4 years ago

TI__Guru** 105590 points

Hello Luke,

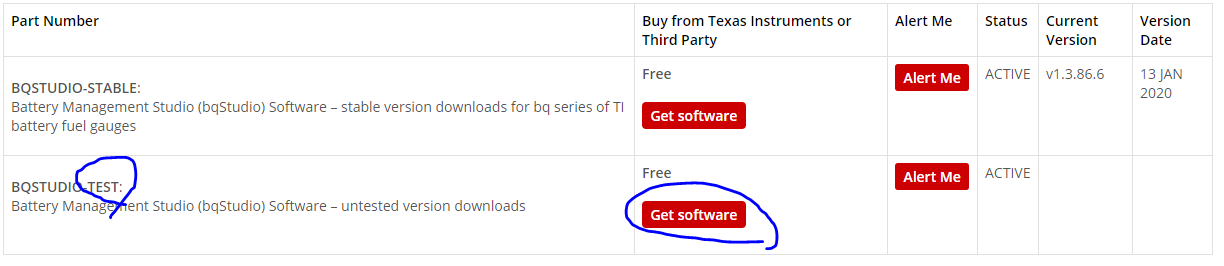

I would update your bqStudio to the TEST version, it may help fix some issues like this. If you are still encountering the issue we can give further advice.

Sincerely,

Wyatt Keller

0 Jinwook Baek1 over 4 years ago in reply to Wyatt Keller

Prodigy 90 points

Hi, I'm Jinwook.

As you told me, I changed the program and installed it.

However, the program was running, but we found that the disconnection was after a few seconds.

Do you know what happens when there is a problem?

Which part of the hardware should I check?

0 Wyatt Keller over 4 years ago in reply to Jinwook Baek1

TI__Guru** 105590 points

Hello Jinwook,

Make sure you are using the SMBus port on the EV2400 with the BQ40Z80 and you have the most up to date firmware for the EV2400. You can follow the EVM users guide for a lot of the procedure and connections needed.

Guide: www.ti.com/.../sluubz5.pdf

Sincerely,

Wyatt Keller
