BQ40Z50-R2: blinking LED status when charging done.

Dexter Choi

Expert 2795 points

Part Number: BQ40Z50-R2

Dear Sir,

My customer is using configured 4 LEDs. and good working for Charging, discharging.

They have some problem as below table.

please refer to the attached GG file.SDB-3S1PA.gg.csv

1. when charging done, 2 LEDs of 4 LEDs are blinking.

2. BATTERY gauge is jumped from 4% to 0% during discharging.

please let me know any advise about this issue.

Thanks.

over 4 years ago

0 Nick Brylski over 4 years ago

TI__Mastermind 19195 points

Hi Dexter,

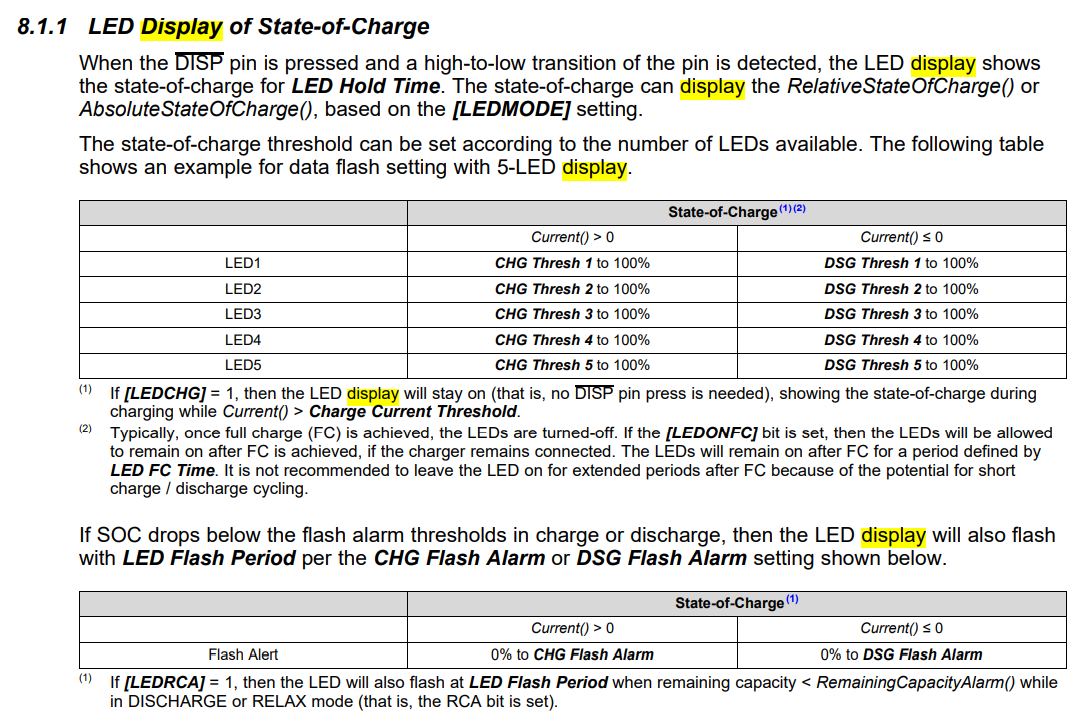

Which LEDs are blinking? Please refer to section 8 of TRM for info on LED operation.

Best,

0 Dexter Choi over 4 years ago in reply to Nick Brylski

Expert 2795 points

Dear Nick,

LED2,4 are blinking.

how to setting and configuration if using 4 LEDs.

0 Nick Brylski over 4 years ago in reply to Dexter Choi

TI__Mastermind 19195 points

Hi Dexter,

Looked at the log file, the device is unlearned. Completing a learning cycle should fix the SOC jumps. Also you should verifiy if they have a matching chemID.

Best,

0 Dexter Choi over 4 years ago in reply to Nick Brylski

Expert 2795 points

Dear Nick,

You mean if completing a learning cycle that the blinking issue is done?

how to set register configuration for using 4 LEDs.

Do you have example setting value for using 4 LEDs.

0 Nick Brylski over 4 years ago in reply to Dexter Choi

TI__Mastermind 19195 points

Hi Dexter,

LEDMODE controls LED display when charging. For LEDs to function the chg current has to be greater than the chg current threshold.

Best,

0 Dexter Choi over 4 years ago in reply to Nick Brylski

Expert 2795 points

Dear Nick,

if using 4 LEDs, how to set LED Display value.

please check setting values as below right? of not.

LED1 - 25%

LED2 - 50%

LED3 - 75%

LED4 - 100%

LED5 - 0%

0 Dexter Choi over 4 years ago in reply to Dexter Choi

Expert 2795 points

Dear Nick,

Could you please check this issue?

production date of this project is on middle of NOV.

Thanks.

0 Nick Brylski over 4 years ago in reply to Dexter Choi

TI__Mastermind 19195 points

Hi Dexter,

I'm looking into this.

Best,

0 Nick Brylski over 4 years ago in reply to Nick Brylski

TI__Mastermind 19195 points

Hi Dexter,

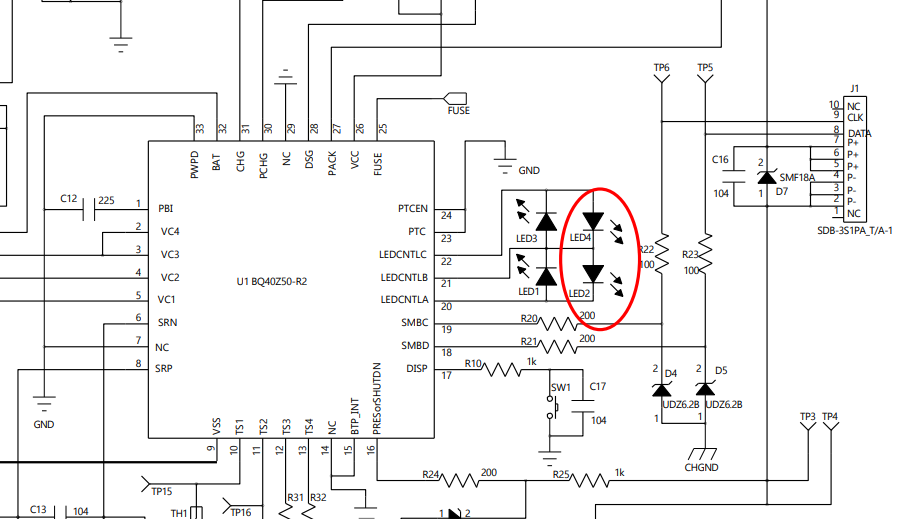

Can you upload the .gg file here? Also can you provide more detail on customers setup of the leds?

Best,

0 Dexter Choi over 4 years ago in reply to Nick Brylski

Expert 2795 points

Dear Nick,

When BATTERY is Full (SOC 100%).

It is different 4 LEDs status between DISP pin press button and command MAnufacturer Access = 0x002B.

could you please explain diffence thing when DISP pin press button or MAnufacturer Access = 0x002B.

When command MAnufacturer Access = 0x002B, the LED status is good working.
but when DISP pin press button, LED2, LED4 are brighter than LED1,LED3.

How to fix this issue. please advise me this issue.

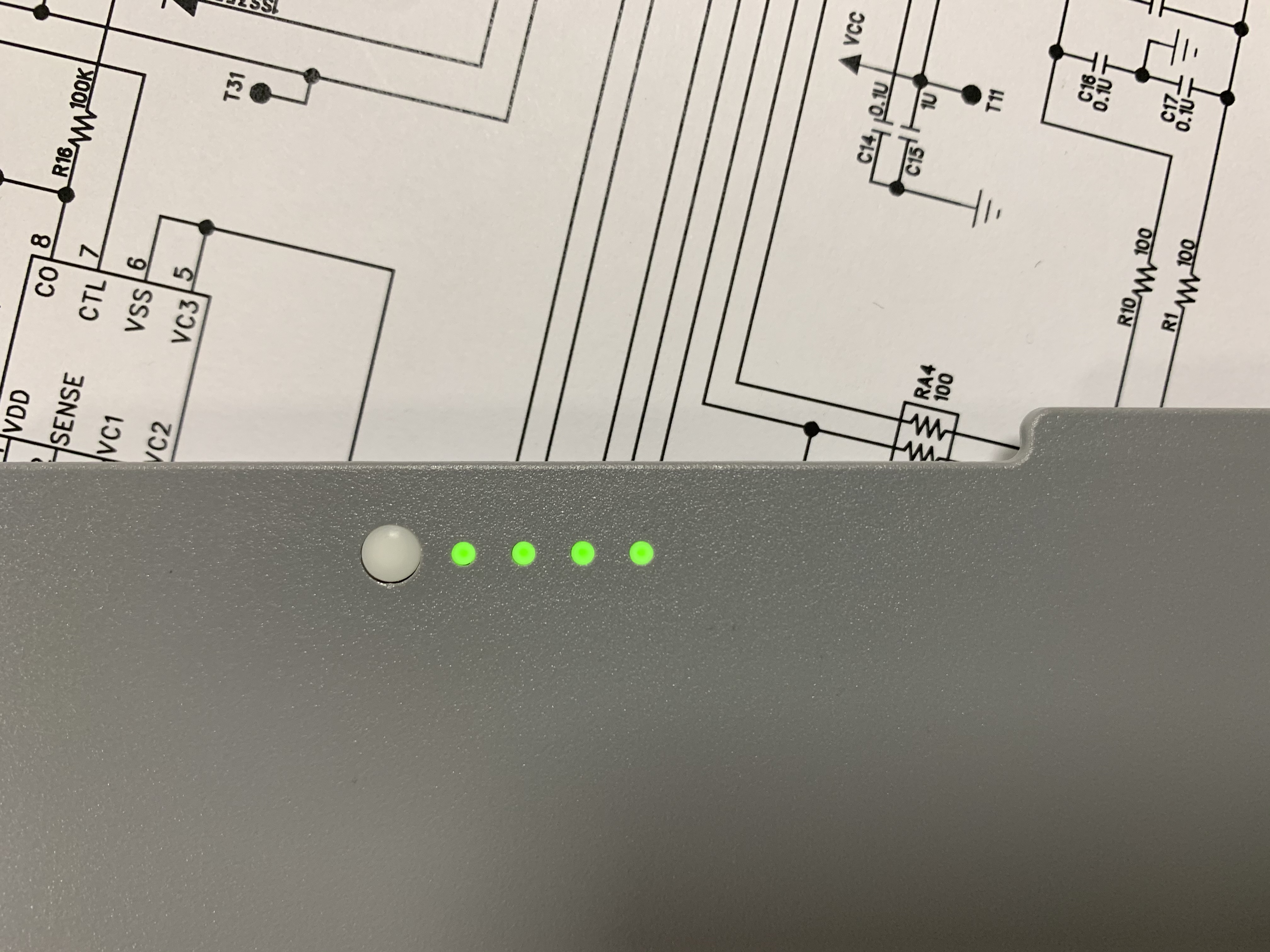

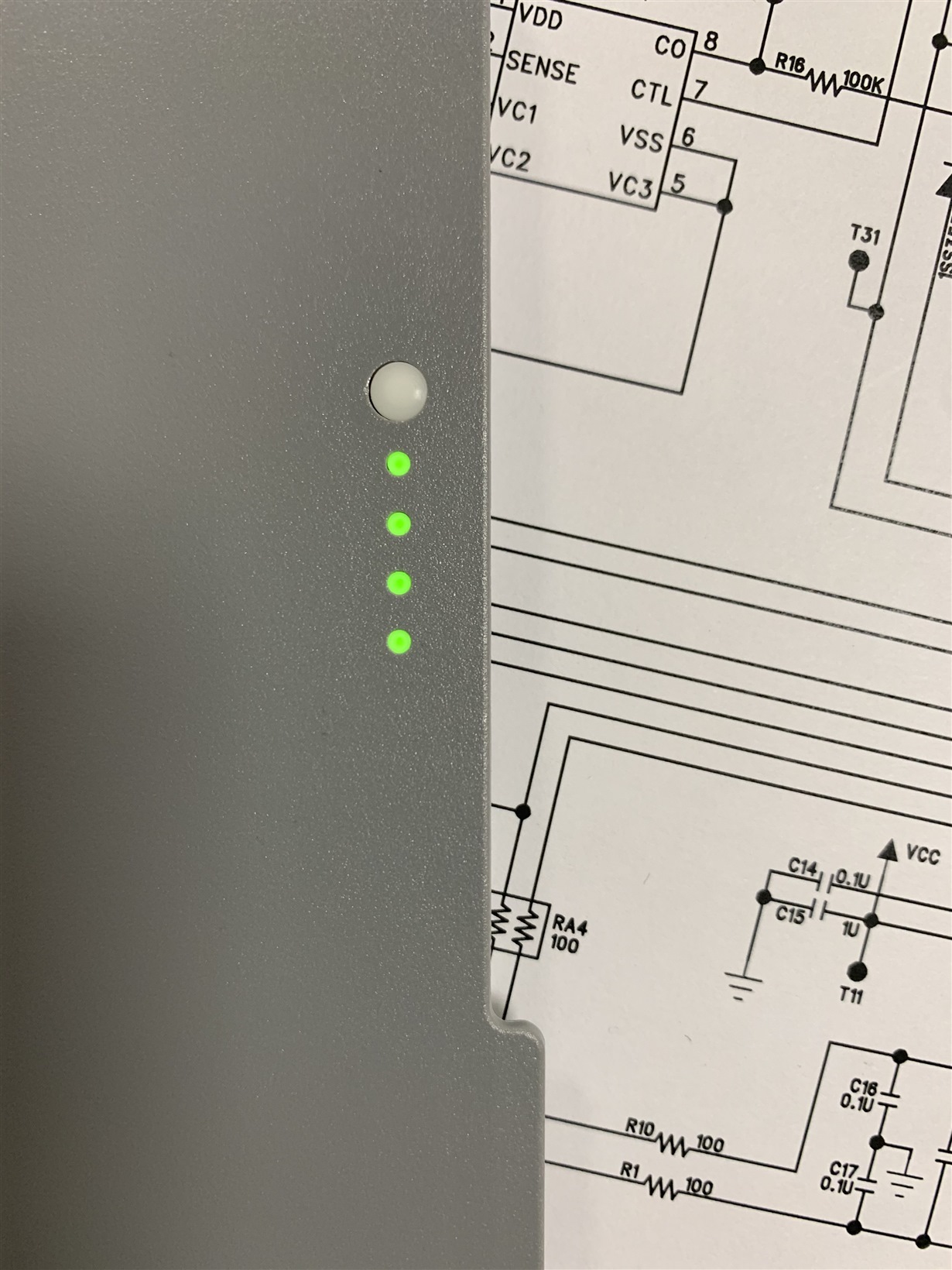

When Commend MAnufacturer Access = 0x002B

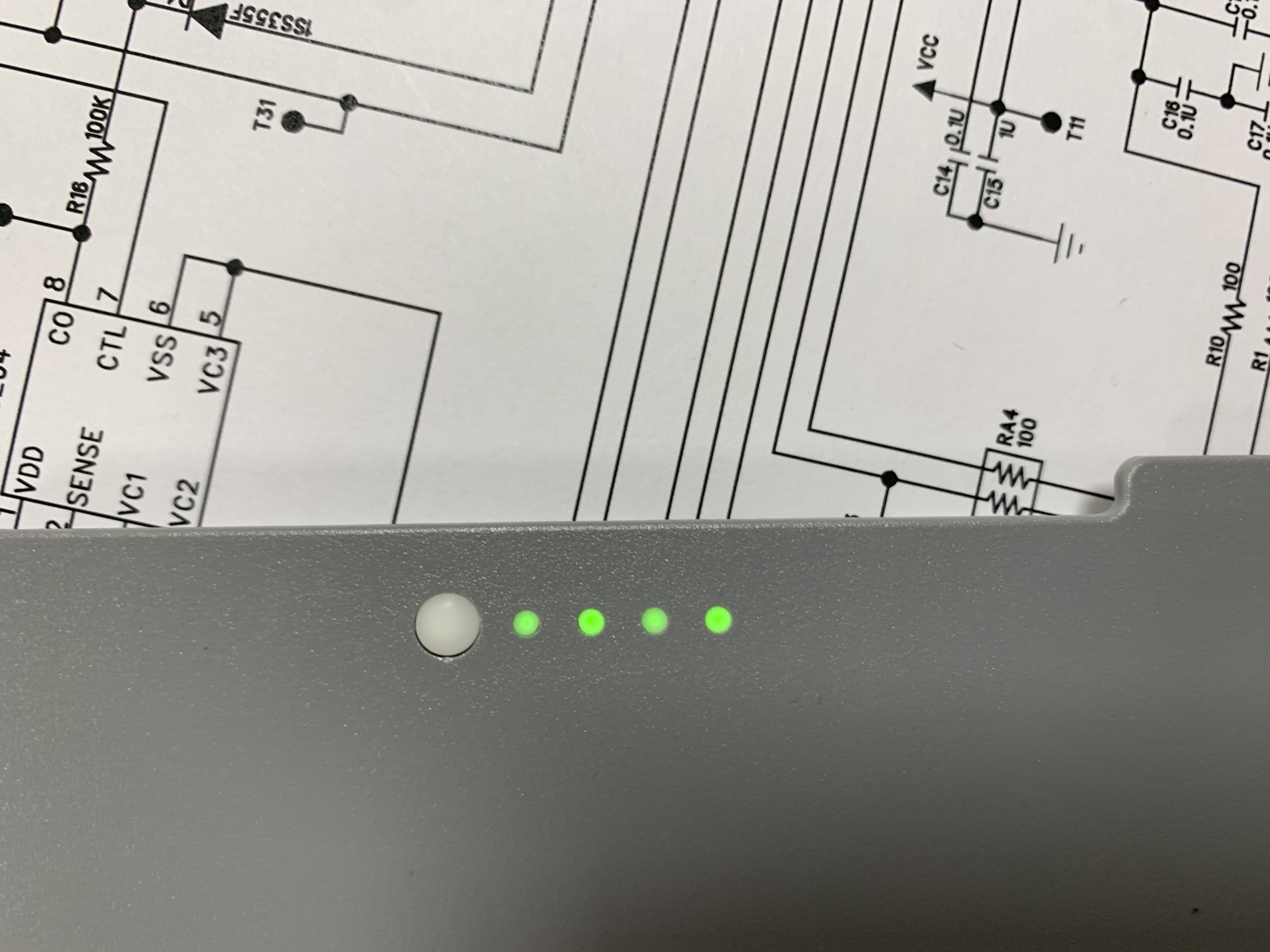

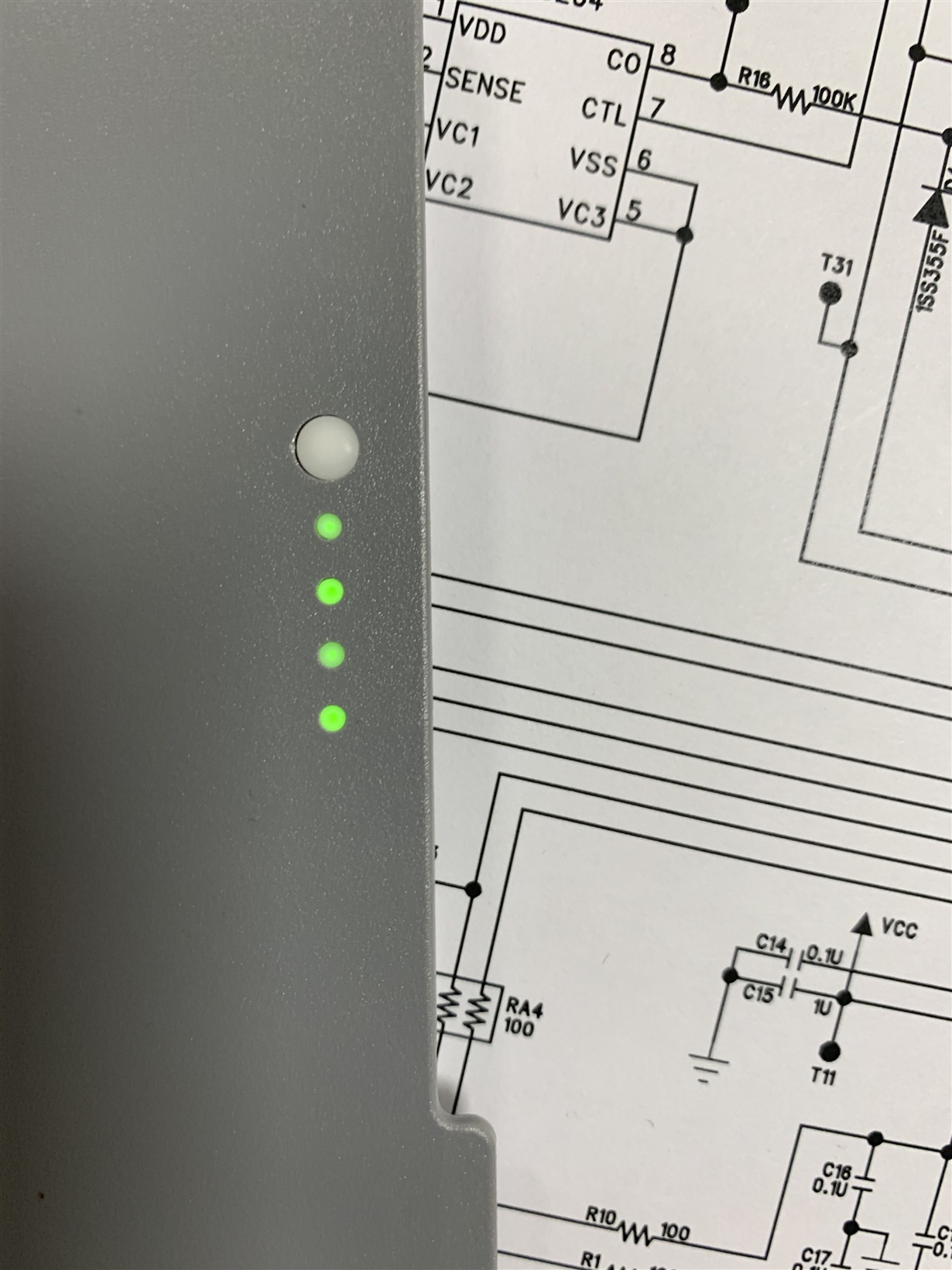

when Press Button.

GG file

7217.SDB-3S1PA.gg.csv

Schematic

Power management

Power management forum
