Hi team,
My customer has some question about the BQ40z80.
1. They want to know why there is a diode and a 2kohm between the DSG and the PACK pin

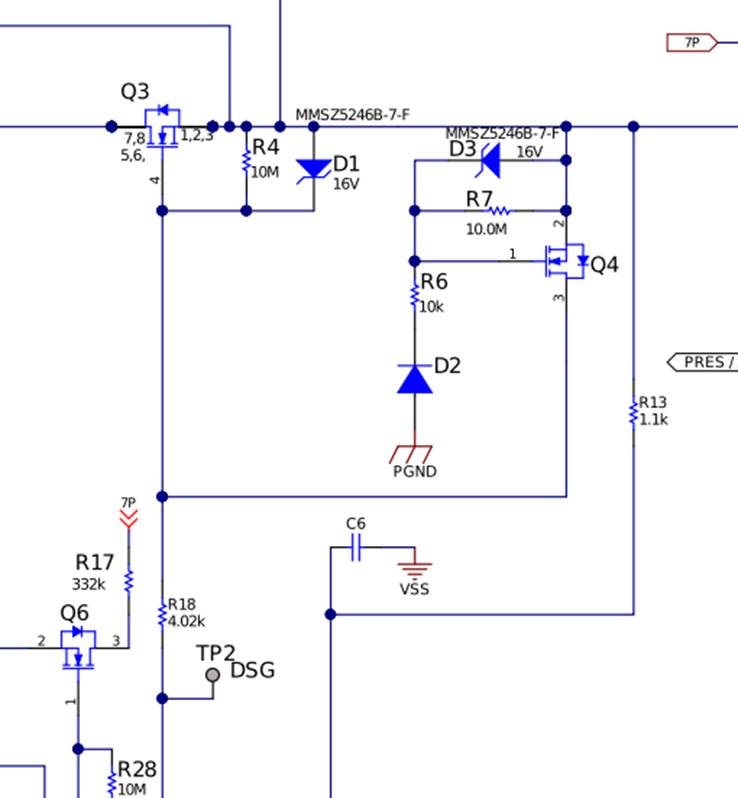

2. In the schematic, they want to check the reason why we need D1 and R6. How this circuit works?
3. How much current could DSG pin provide?
Thanks a lot!
Best regards,
Ella
Hi Ella,
D1 provides gate oxide protection for the DSG FET by limiting the maximum Vgs voltage. Refer to N-CH FET Drive in the EC table for more info.
For future reference on how to upload images here:
https://e2e.ti.com/support/site-support/f/1024/t/761613
Best,
Hi Nick,

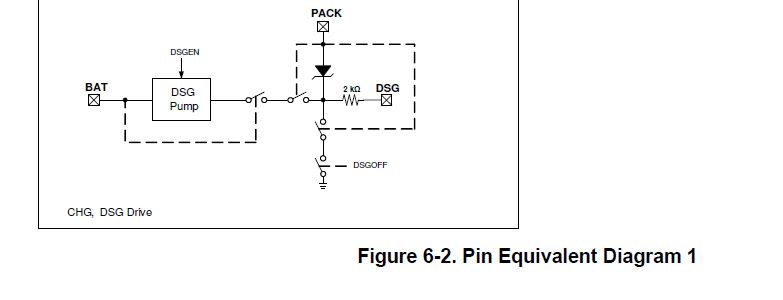

The customer want to know why the DSG is connected with Pack pin through the diode and 2Kohm. How much current could DSG pin provide to drive the FET. And where can I find the EC table? Thanks a lot!
Best regards,
Ella
Hi Nick,
Hi Ella,

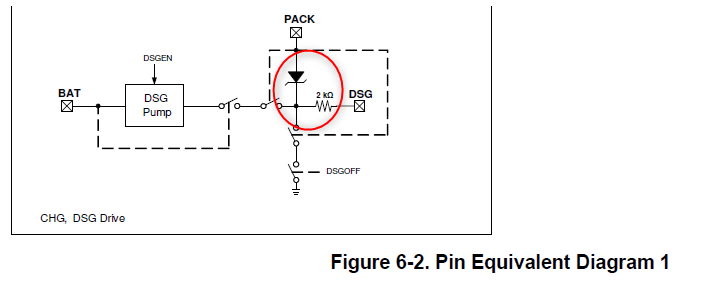

I think Ella is referring to the bq40z80's internal diode and resistor, right?
Personally, I think the 2k resistor is a protection for the DSG-Charge-Pump if the DSG Pin is shorted to GND because of an external error.
Or what is the purpose of it?

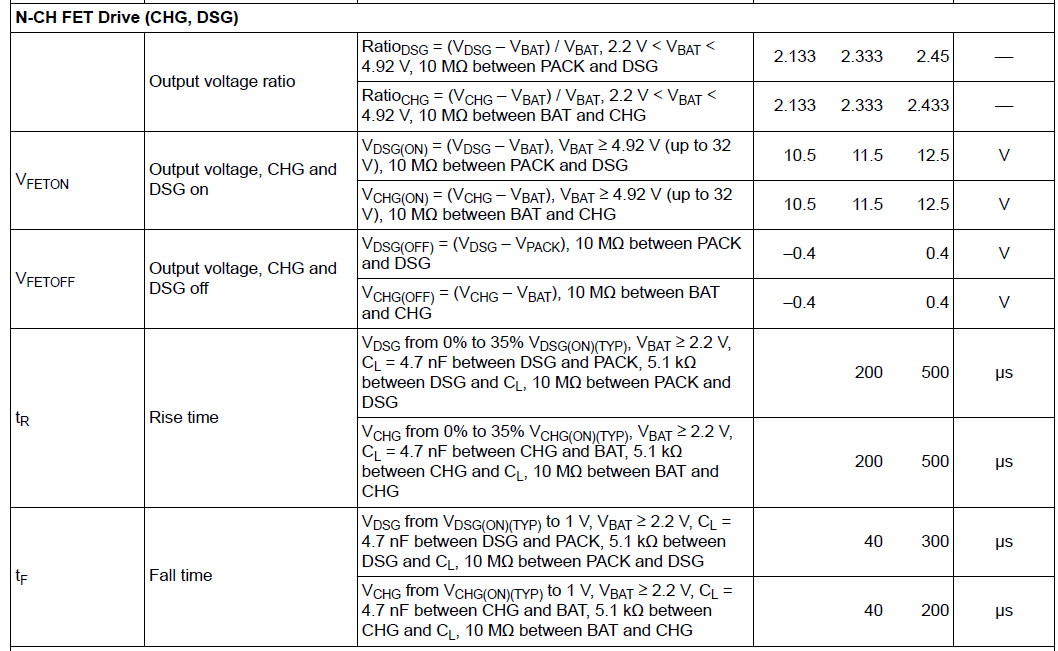

In the EC table I could not find a max current of the DSG-Charge-Pump:
What the purpose of the internal diode is I don't know.
