UCD3138: Failed to firmware download with TI Digital Power Manufacturing Tool

Tina hsieh
Prodigy 210 points
Part Number: UCD3138

Hello Experts,

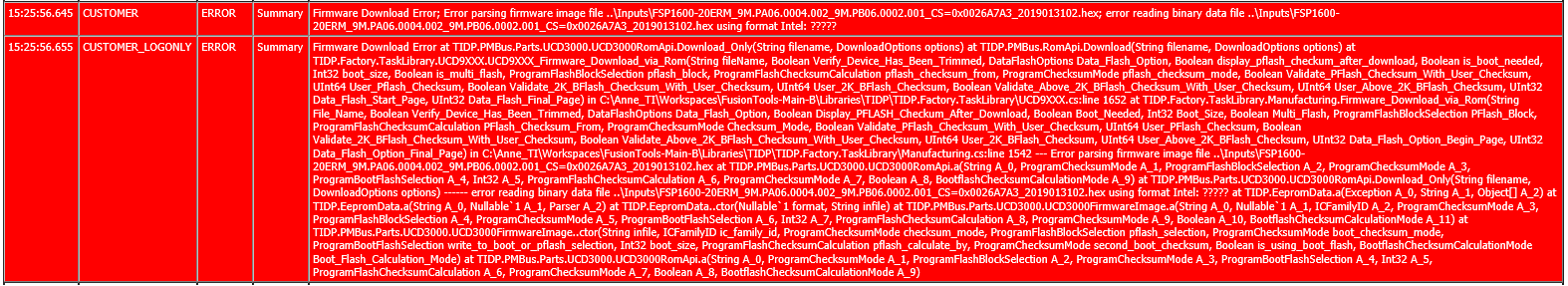

I use TI Digital Power Manufacturing Tool to firmware download failed, please see the detail as follows,

But I use another computer to firmware download the same file is pass, how can I do to troubleshoot?

Thanks!
