TPS56121: TPS56121 Pspice model error

Leonard Hoe

Part Number: TPS56121
Other Parts Discussed in Thread: PSPICE-FOR-TI

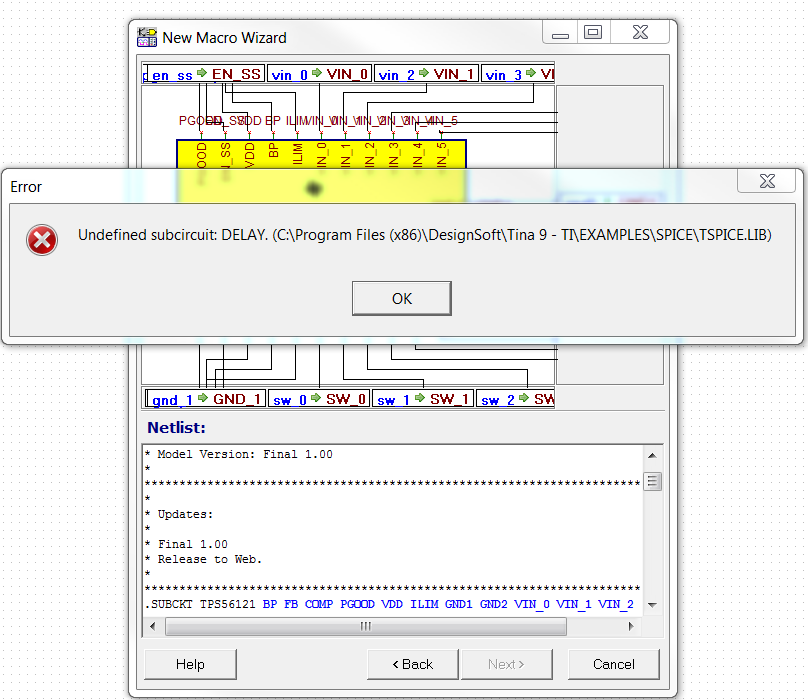

I am trying to simulate a dcdc TPS56121 buck converter circuit but I met a error on TINA and PSpice-for-TI. The error on TINA is "Undefined subcircuit: DELAY."

The error on PSpice is shown below

tran.out.1:

** Creating circuit file "tran.cir"
** WARNING: THIS AUTOMATICALLY GENERATED FILE MAY BE OVERWRITTEN BY SUBSEQUENT SIMULATIONS

*Libraries:
* Profile Libraries :
* Local Libraries :
.LIB "../../../tps56121.lib"
* From [PSPICE NETLIST] section of C:\SPB_Data\cdssetup\OrCAD_PSpiceTIPSpice_Install\17.4.0\PSpice.ini file:
.lib "nom_pspti.lib"
.lib "nom.lib"

*Analysis directives:
.TRAN 0 3m 0 20n
.OPTIONS ADVCONV
.OPTIONS ABSTOL= 10n
.OPTIONS ITL1= 1500
.OPTIONS ITL2= 400
.OPTIONS ITL4= 400
.OPTIONS VNTOL= 10u
.PROBE64 V(alias(*)) I(alias(*))
.INC "..\01_Startup.net"

**** INCLUDING 01_Startup.net ****
* source TPS56121
X_C7 VIN 0 CESR PARAMS: C=10u ESR=5m X=4 IC=0
C_C16 N14424535 N14424543 22p IC=0
C_C17 N14425259 N14425247 470p IC=0
R_R7 0 N14424543 20.5k
C_C14 SW N14424605 100n
C_C11 0 VIN 1u IC=0
X_C1 VIN 0 CESR PARAMS: C=22u ESR=5m X=3 IC=0
X_C4 VIN 0 CESR PARAMS: C=100u ESR=5m X=1 IC=0
R_R2 N14424605 0 5.1
R_RLoad 0 VOUT 0.08
X_C18 VOUT 0 CESR PARAMS: C=22u ESR=5m X=2 IC=0
R_R3 N14424729 N14424543 22.1k
C_C13 EN_SS 0 3.3n IC=0
R_R13 PGOOD BP 267k
V_VIN VIN 0
+PULSE 0 12 1u 10u 10u 1 2
R_R5 N14425247 VOUT 49.9
X_C20 VOUT 0 CESR PARAMS: C=10u ESR=5m X=1 IC=0
C_C15 N14424729 N14424535 1000p IC=0
R_R4 N14424543 N14425247 20.5k
X_C5 VIN 0 CESR PARAMS: C=1u ESR=5m X=1 IC=0
X_L1 SW VOUT LDCR PARAMS: L=680n DCR=2.3m IC=0
R_R1 ILIM 0 2.87k
X_C6 VIN 0 CESR PARAMS: C=3.3u ESR=5m X=1 IC=0
R_R6 N14425259 N14424543 1.27k
C_C12 0 BP 4.7u IC=0
X_C21 VOUT 0 CESR PARAMS: C=47u ESR=5m X=5 IC=0
X_U1 BP N14424543 N14424535 PGOOD VIN ILIM 0 0 VIN VIN VIN VIN VIN VIN
+ SW SW SW SW SW SW EN_SS 0 0 0 TPS56121 PARAMS: SS=0
