BQ40Z50: BQ40Z50-R1：External Cell Balancing

user6014640

Part Number: BQ40Z50
Other Parts Discussed in Thread: BQSTUDIO

Hello, I have two questions about the external balance of BQ40Z50:
1. The balance is calculated based on dQ, dQ = CellnDOD – CellLOWEST_SOC DOD × CellnQMax (mAh), which are the only parameters in BQstudio.
2. What is the difference between dQ and open balance.

over 4 years ago

0 Nick Brylski over 4 years ago

TI__Mastermind 19195 points

Hi User,

Can you clarify what you mean by open balance?

Thanks,

0 user6014640 over 4 years ago in reply to Nick Brylski

Prodigy 140 points

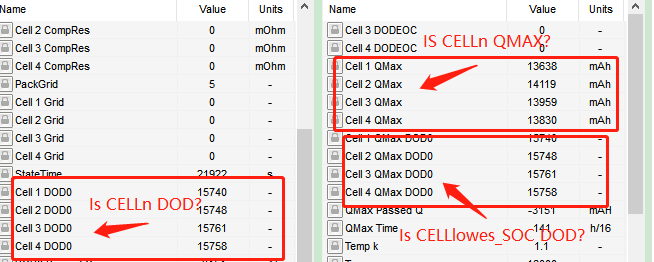

1. I read the specification that the balance opening is based on the dQ value. Which three parameters does the dQ calculation formula refer to? I can't find it in BQstudio.
2. How much greater the dQ value is to open the balance.
3. Bal Time=(CELLn QMAX—Cell_lowest QMAX) / (Bal time/mAh)

0 Nick Brylski over 4 years ago in reply to user6014640

TI__Mastermind 19195 points

Hi,

Refer to 13.5.12.3 Min Start Balance Delta, you can adjust the voltage difference when balancing begins.

Best,

0 user6014640 over 4 years ago in reply to Nick Brylski

Prodigy 140 points

Hello, which document are you looking at? The document I read is introduced in 14.4.12.3: Minimum cell voltage delta to start cell balancing during Relax Balance Interval checks. This condition is checked in RELAX mode and so it only applies if cell balancing at rest is enabled. This setting is in relax mode.
What about the charge balance setting?

Power management

Power management forum

BQ40Z50: BQ40Z50-R1：External Cell Balancing
