LMR62421: LMR62421 IC

Kunal Chaudhari

Part Number: LMR62421

Hello Zack,
We have done with LMR62421 placements.

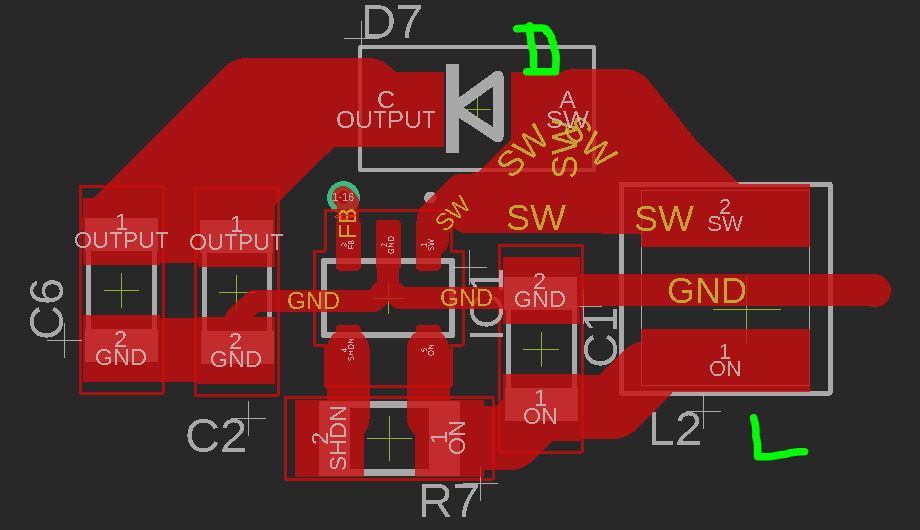

Please check the placements of a LMR62421 IC Placement..

Please tell, this placement is correct?

over 4 years ago

0 Zack Liu over 4 years ago

TI__Mastermind 34231 points

Hi Kunal,

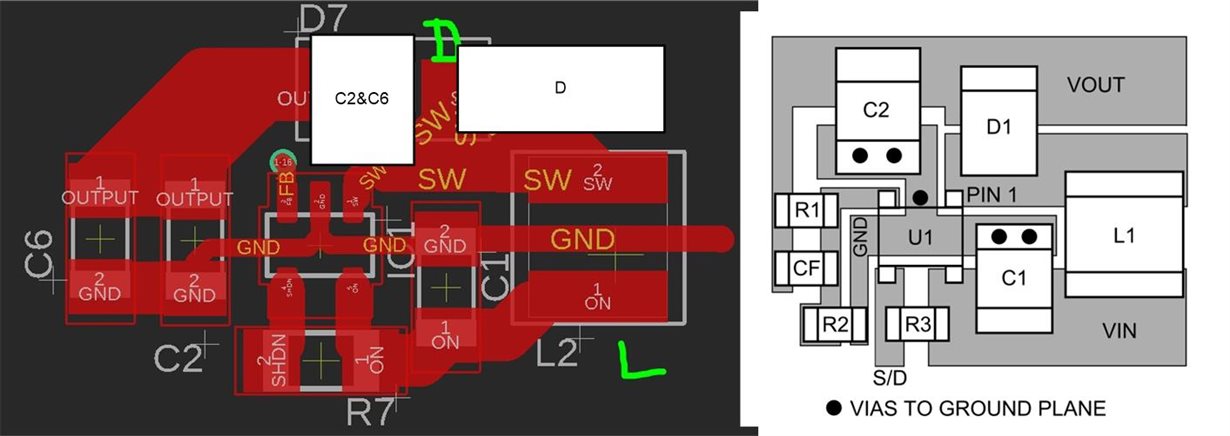

Please move the diode a little bit right like below picture. So that the output capacitor C2 and C6 could be placed close to IC GND pin. Connect the C2 C6 GND pad to IC GND pin with short, wide trace.
