TPS65400: Schematic review

Suman Reddy

Prodigy 100 points

Part Number: TPS65400

Hi,

We are facing issue that output voltage is 0V in all four outputs.

We float the I2C interface and expecting the output through hardware configuration.

Also confirm that regulator require initial program.

Voltage at EN pin is 2.1V.

Please review the schematics attached.

Please revert back as soon as possible.

over 4 years ago

0 Kevin Bradford over 4 years ago

TI__Prodigy 400 points

Hi Suman,

Unfortunately, your schematic did not post correctly. Please use the "Insert/Edit Media" or "Insert File" functions to attach an image or file. Thank you!

0 Zhao Ma over 4 years ago

TI__Genius 15135 points

Hi, Suman

1. Please re-attach your schematic using the method as Kevin said.

2. Some questions:

All of outputs always keep 0V? never worked?

Did you ever check the CE and RST_N pin voltage?

0 Suman Reddy over 4 years ago in reply to Kevin Bradford

Prodigy 100 points

Hi Kevin,

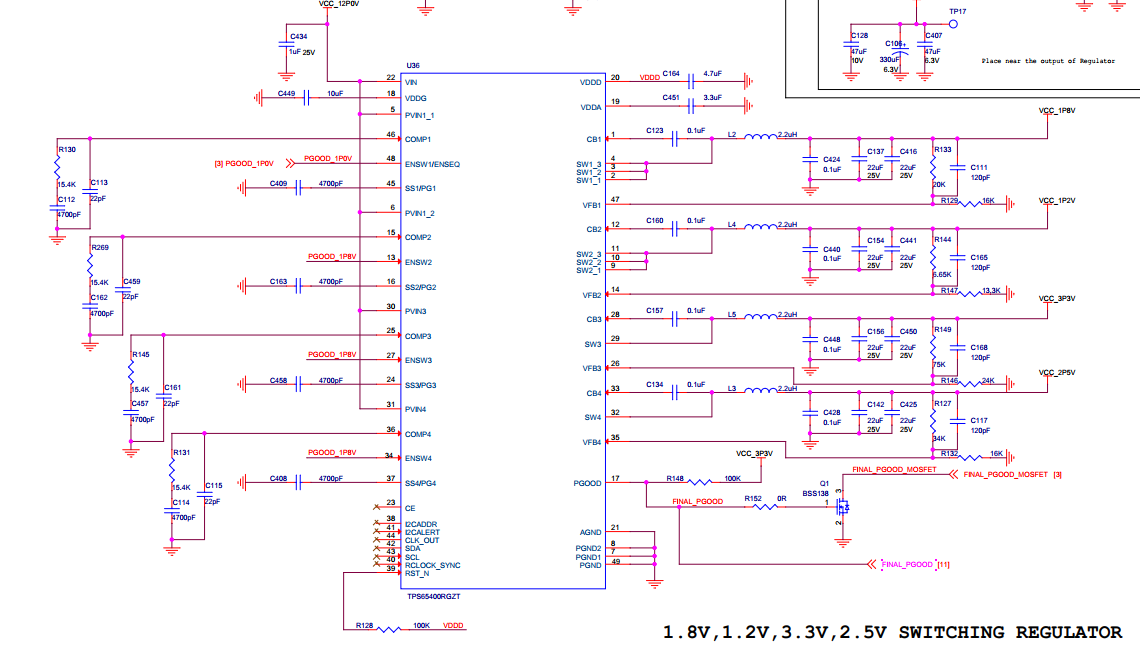

Please find the attached file.

0 Zhao Ma over 4 years ago in reply to Suman Reddy

TI__Genius 15135 points

Hi, Kevin

Comments:

1. please connect 374k resistor between pin40(Rclk_sync) and GND.

2. In layout, please place 22uF MLCC near to PVIN1/2 and place 22uF MLCC near to PVIN3/4 pin.

Then test again.

0 Suman Reddy over 4 years ago in reply to Zhao Ma

Prodigy 100 points

Hi,

Thanks for your review.

After placing the resistor, output supply is coming.
