UCD9090A: How to enable margining function?

Paul Yeh

Genius 16175 points

Part Number: UCD9090A

Hi team,

My customer would like to test UCD9090A margining function but it seems fail.

So could you advise how to enable this function?

BTW, currently customer used TI EVM board and GUI.

Thanks

0 yihe over 4 years ago

Hello

Please refer this chapter 4 of application note: https://www.ti.com/lit/an/slva845a/slva845a.pdf

Regards

Yihe

0 Paul Yeh over 4 years ago in reply to yihe

Yihe,

I forward this document to customer and they mentioned they just read this data before.

But it seems margining function is still no work.

So is it possible to provide simple configuration procedure for customer to do?

Thanks

0 Paul Yeh over 4 years ago in reply to Paul Yeh

Yihe,

I checked your application note and there is margining configuration in page13~15.https://www.ti.com/lit/an/slva845a/slva845a.pdf

Does customer just follow this sequence then they should see PWM waveform appeared in DPWM pin?

Thanks

0 yihe over 4 years ago in reply to Paul Yeh

They have to have margin circuit design in the board. After that, please follow the steps in the docs to configure and run.

Regards

Yihe

0 Paul Yeh over 4 years ago in reply to yihe

Yihe,

According to your suggestion, so customer needs to have closed loop circuit for margining function testing, am I right?

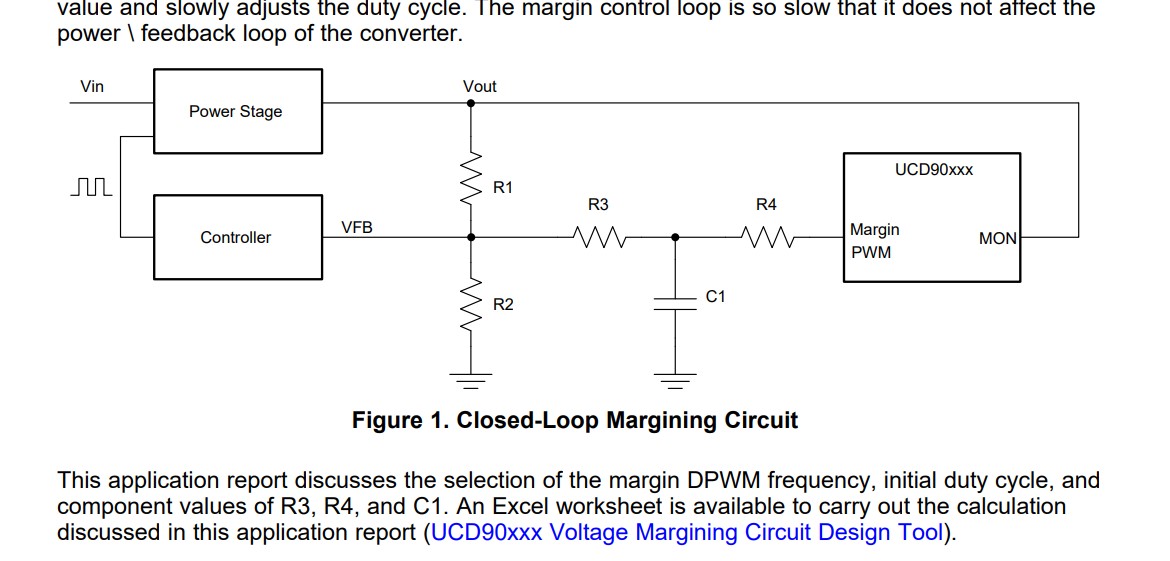

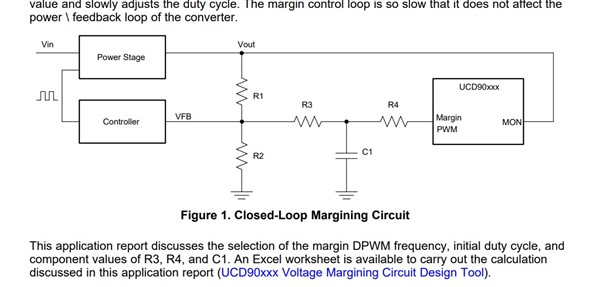

Please see below block diagram as circuit.

Thanks

0 yihe over 4 years ago in reply to Paul Yeh

Yes, a closed loop circuit is required for margining function. They can follow the https://www.ti.com/lit/zip/slvc676 to calculate the R/C values.

Regards

Yihe
