BQ40Z50EVM-561: Battery shuts down unexpectedly

RUNNING GAO

Part Number: BQ40Z50EVM-561
Other Parts Discussed in Thread: EV2400, , BQSTUDIO

Hi,

Thank you for reading my question.

I am using BQ40Z50EVM-561, EV2400 to evaluate a Li-Ion battery. After I switch on my battery, I can see some output from left dashboard. (Please see pic. below)

After 1 sec, however, the battery is shut down unexpectedly. It could be turned on again after pressing 'wake' button on EVM, but will shut down again after 1s.

I am not sure if it is a firmware problem or config problem.

1) Please suggest the firmware version and the instruction to upgrade it.

2) Regarding the config.

I failed to change the NR to high to put gauge in non-removable mode with the error at bottom is 'initial read fail...'

Please advise. Thank you.

Best regards,

Rayna

over 4 years ago

0 Nick Brylski over 4 years ago

TI__Mastermind 19195 points

Hi Rayna,

Does holding down the wake button keep the gauge awake? Then you can write to the NR bit.

Thanks,

0 Nick Brylski over 4 years ago in reply to Nick Brylski

TI__Mastermind 19195 points

The number of cells also needs to configured within DA config.

Nick

0 RUNNING GAO over 4 years ago in reply to Nick Brylski

Prodigy 250 points

Hi Nick,

Thank you for your prompt reply. Please see my update below.

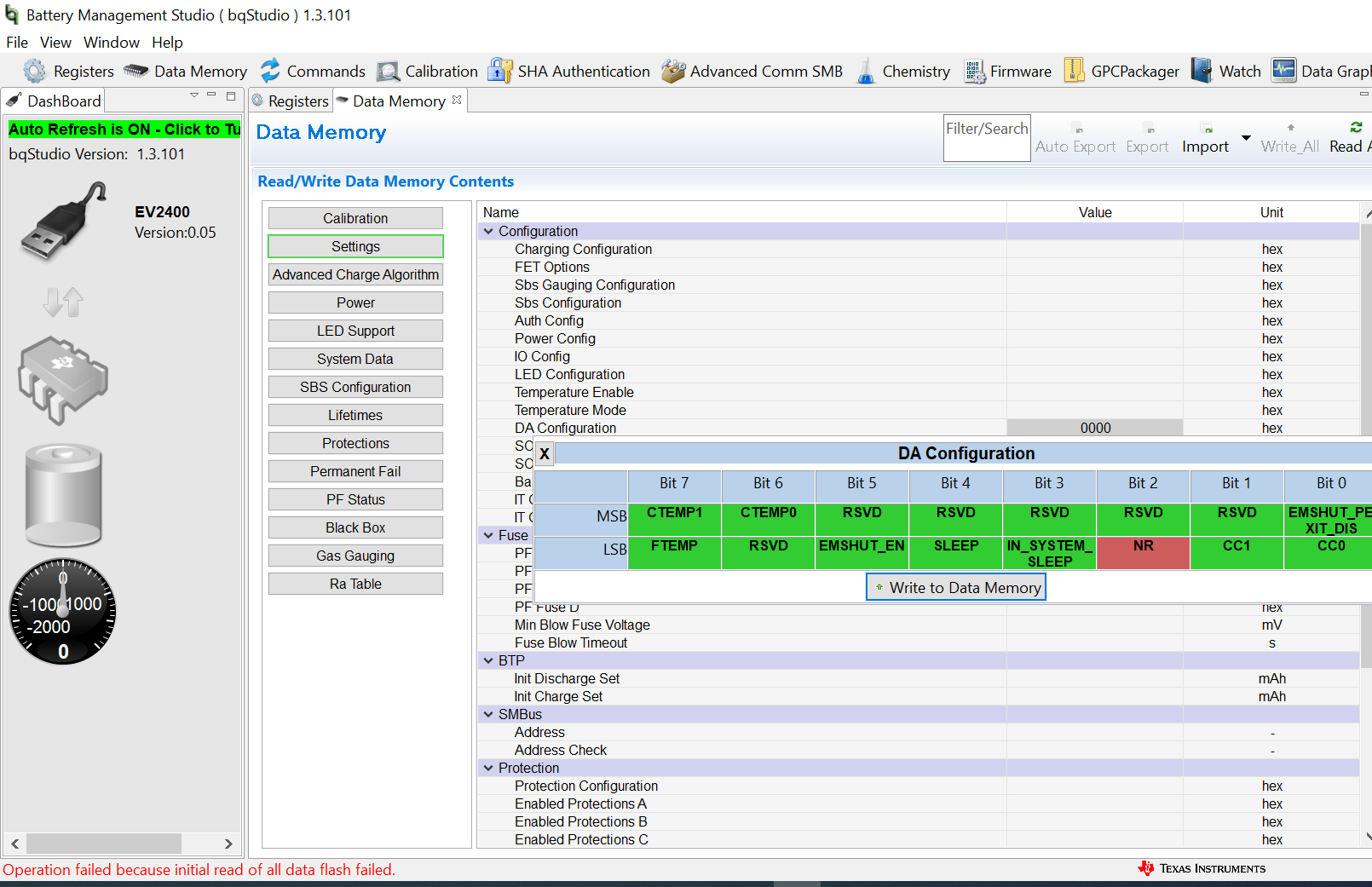

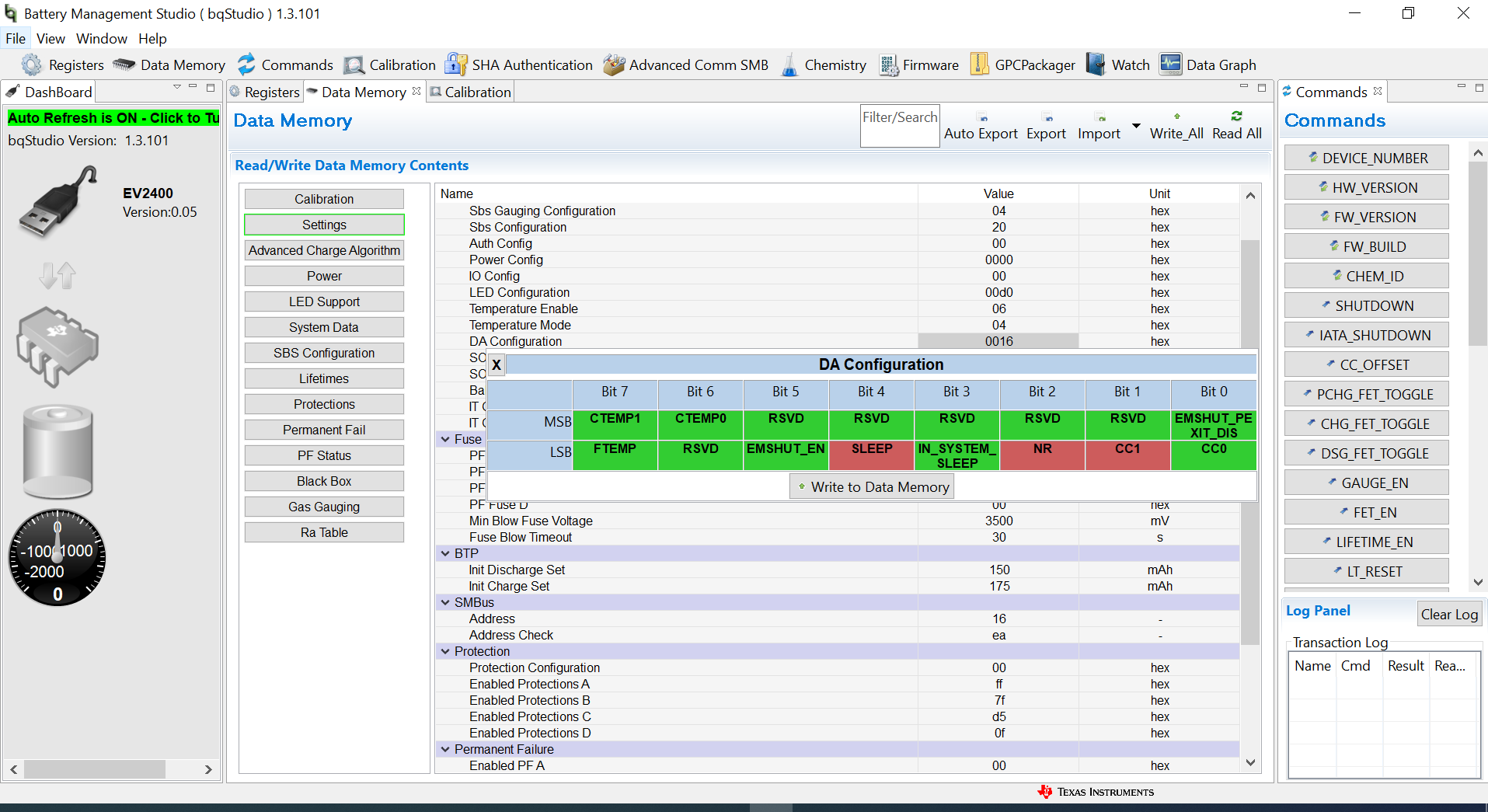

1) 'Keep holding wake button' is a good idea. I could config NR from DA Config. Could you please check it out for me if the settings are correct?

2) Even though I config the NR as above, once I release the 'wake' button from evaluation module, the battery back to shut down. You can also tell from the grey dashboard in above screenshot.

3) Could you please advise what bit I need to config for battery cells as you suggested? Any reference is appreciated here.

-Rayna

0 Nick Brylski over 4 years ago in reply to RUNNING GAO

TI__Mastermind 19195 points

Hi Rayna,

Can you attach the .gg here? Also an image of register and bit register after sending a reset command.

The number of cells must be configured in CC1/CC0.

Best regards,

0 RUNNING GAO over 4 years ago in reply to Nick Brylski

Prodigy 250 points

Sure, let me work on it. Could you please advise how to find .gg file you mentioned?

Also, I attached the hardware connection below, please confirm for me if the pin connection is correct. Thank you very much.

0 Nick Brylski over 4 years ago in reply to RUNNING GAO

TI__Mastermind 19195 points

Hi Rayna,

In bqstudio data memory tab it can be exported.

BR,

0 RUNNING GAO over 4 years ago in reply to Nick Brylski

Prodigy 250 points

Got it, please see the .gg file I attached. Thank you.

Data Memoery.gg.csv

0 Nick Brylski over 4 years ago in reply to RUNNING GAO

TI__Mastermind 19195 points

Hi Rayna,

Did you hit "write all" after setting NR bit to 1?

BR,

0 RUNNING GAO over 4 years ago in reply to Nick Brylski

Prodigy 250 points

Hi Nick,

Yes, I clicked 'write all' after the new setting.

Also, do you have chance to check out the hardware connection I attached in old response? I would like to confirm the pin side has no problem. Thanks.

Best,

Rayna

0 Nick Brylski over 4 years ago in reply to RUNNING GAO

TI__Mastermind 19195 points

Hi Rayna,

Not sure which responce you are referring to.

Please attach mage of register and bit register after sending a reset command.

THanks,

0 RUNNING GAO over 4 years ago in reply to Nick Brylski

Prodigy 250 points

Hi Nick,

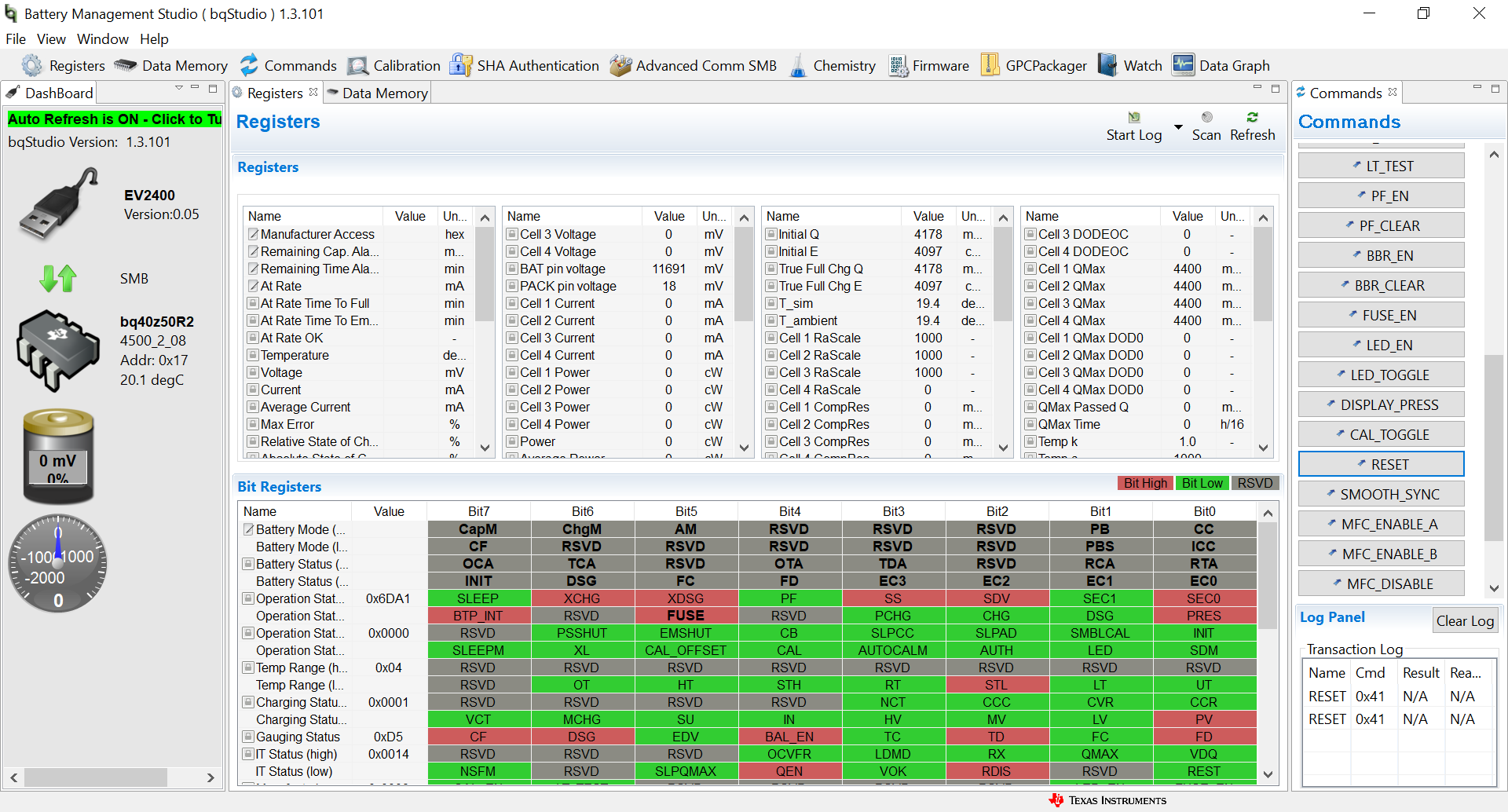

Below image is after I hit RESET command button in BQStudio, also the battery shuts down after releasing 'wake' button on EVM.

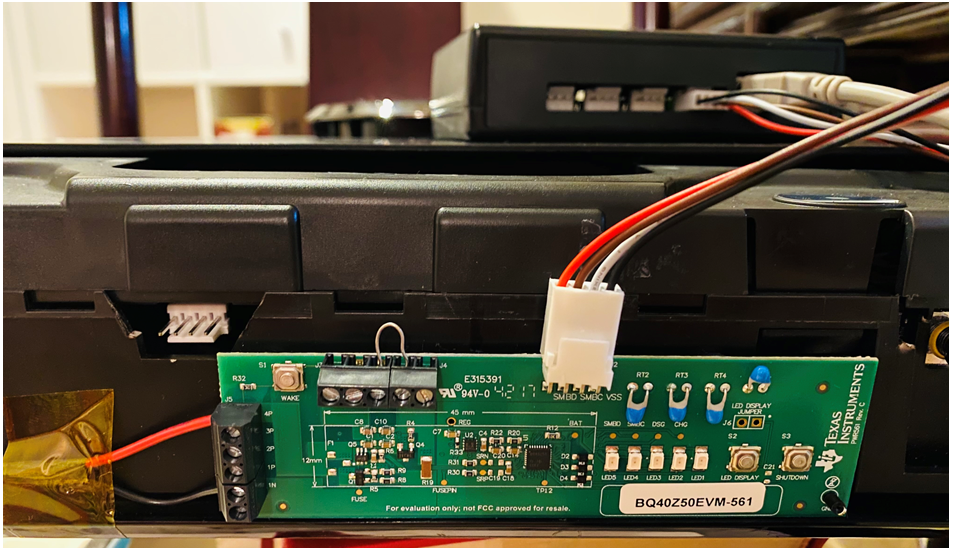

The hardware connection under this scenario shows below. Please confirm for me the pins are connected correct. Thanks.

Best,

Rayna

0 Nick Brylski over 4 years ago in reply to RUNNING GAO

TI__Mastermind 19195 points

Hi Rayna,

You need to configure the DA config (CC1/CC0) for the number of cells you are using. The default is 3 and must be changed if you are only using single cell.
For the connections to EVM please follow the EVM userguide: www.ti.com/.../sluuav7b.pdf

BR,

0 RUNNING GAO over 4 years ago in reply to Nick Brylski

Prodigy 250 points

Hi Nick,

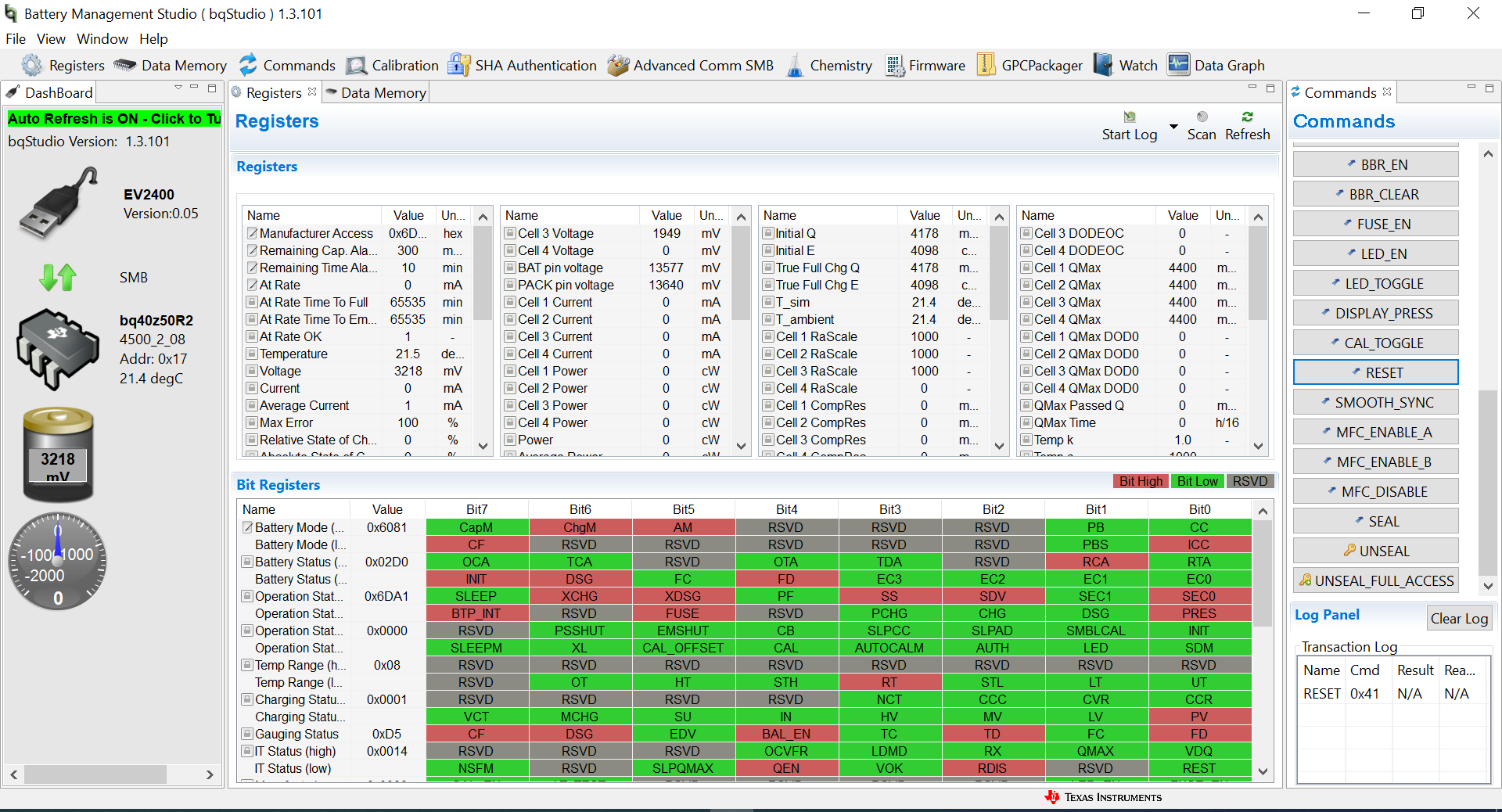

Please see the attachment for registers after pressing 'reset' command button. The battery shuts down again. I also attached .gg file for your reference. Thank you very much.

DA.gg.csv

0 Nick Brylski over 4 years ago in reply to RUNNING GAO

TI__Mastermind 19195 points

Hi Rayna,

Please follow steps 1 & 2 in my previous post as they should solve your issue

Thanks

0 RUNNING GAO over 4 years ago in reply to Nick Brylski

Prodigy 250 points

Update.

Good news, I happened to upgrade the firmware from R2 to R3 by forcing the battery awake, and finally it could stay alive all the time!

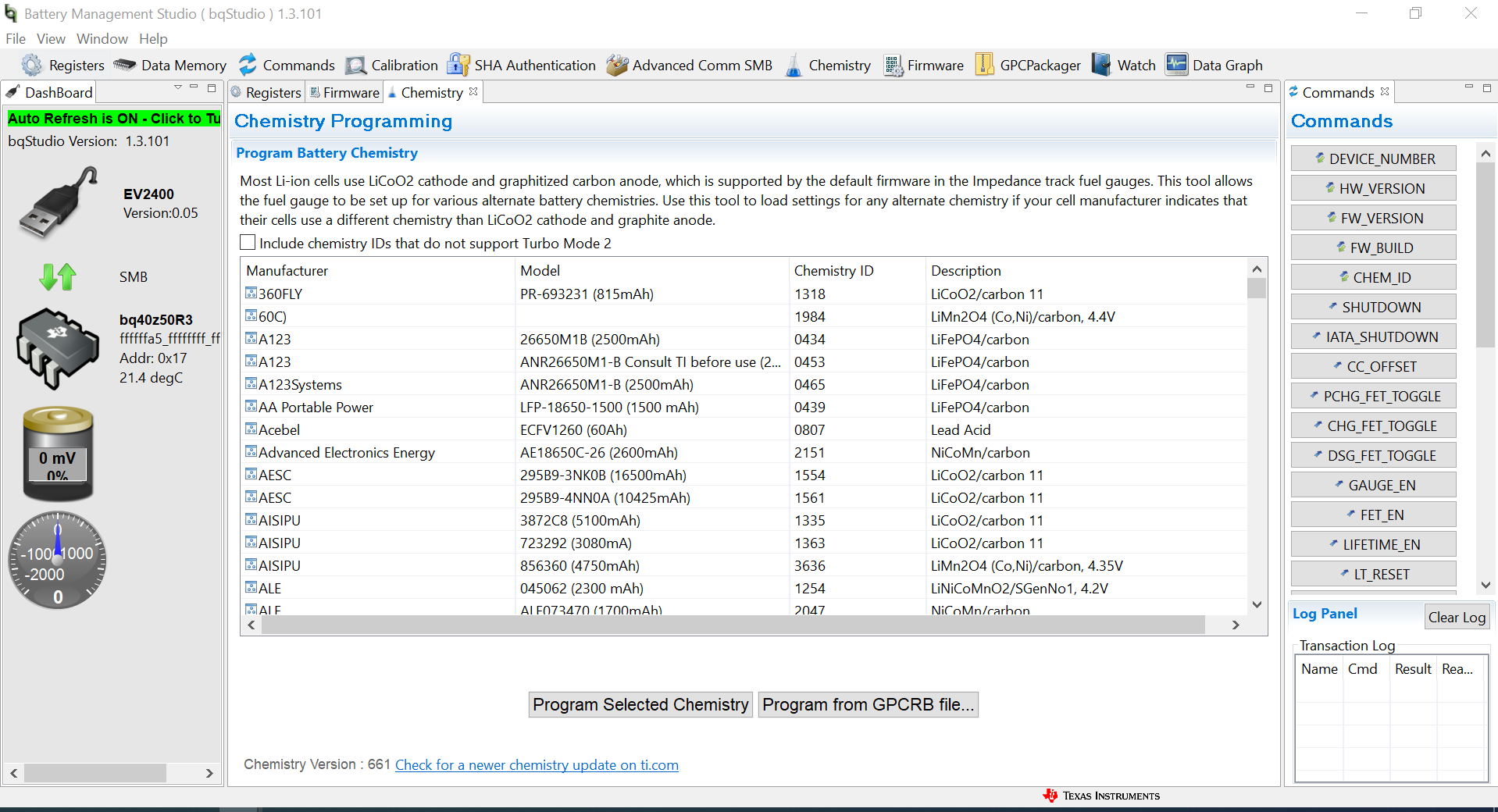

Next question is, how to config/train the battery as I notice the voltage and fuel % in dashboard is 0 (with actual fuel percent 46%). I guess I need to pick battery chemistry ID from below list. From my information, we are using Li-Ion battery. Could you please advise about the chem ID? Thank you.

0 Nick Brylski over 4 years ago in reply to RUNNING GAO

TI__Mastermind 19195 points

Hi Rayna,

If the original issue is solved please make a new post and we will get to your question.

Thanks,
