TPS92513EVM-001: LED dimming problem

FRANK1

Expert 8535 points

Part Number: TPS92513EVM-001

Hi Sir,

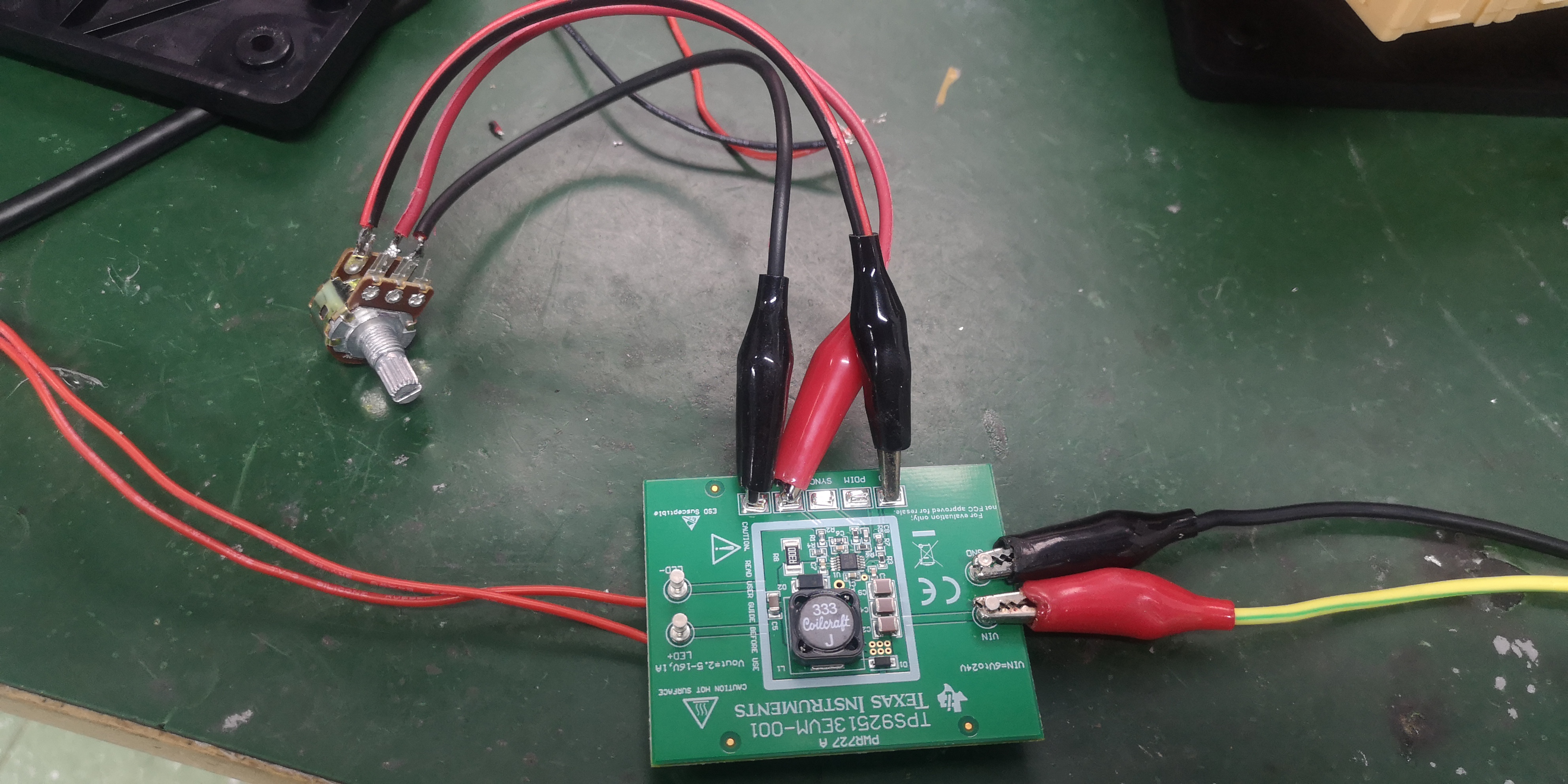

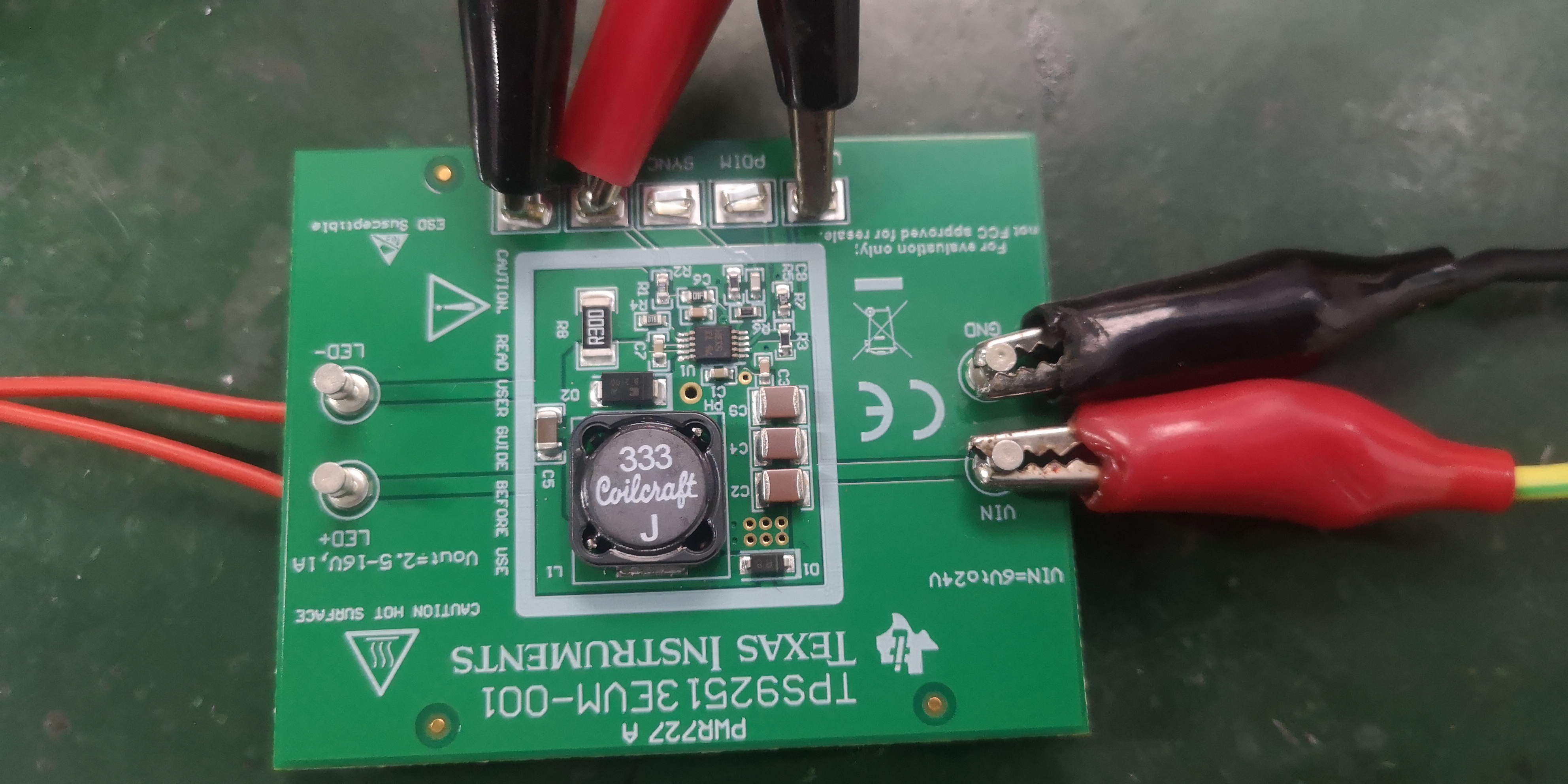

I purchased TI TPS92513EVM-001, I have a problem on Analog and PWM Dimming.

Dimming potentiometer 50K

Output DC12V

Output 3.5v/900mA

Problems: when the dimming potentiometer is adjusted to the minimum, the LED still has brightness and can't be turned off completely.

over 4 years ago

0 Sean Zhou over 4 years ago

TI__Mastermind 22745 points

Hi Frank,

Could you check what's the volatge value to "IADJ" pin when "the dimming potentiometer is adjusted to the minimum"? And you cna check the Figure 5 that there is some offset even the voltage on the "IADJ" pin is zero. So that is the normal behavior for this device, if you want to shutdown totally, you can pull down the "PDIM" pin to ground.

BR

Sean

0 FRANK1 over 4 years ago in reply to Sean Zhou

TI__Expert 8535 points

Hi Sean，

Thank you.

If I pull down the PWM pin, I can not adjust LED dimming by IADJ.

Do you have any solution to use IADJ only to adjust LED dimming and shutdown completely? no brightness at all.

we only want to use Analog Dimming.

Thanks.

0 FRANK1 over 4 years ago in reply to FRANK1

TI__Expert 8535 points

Hi Sean，

is there any update?

Thanks a lot.

0 Sean Zhou over 4 years ago in reply to FRANK1

TI__Mastermind 22745 points

Hi Frank,

I'm sorry that there is also a offset here for the "IADJ“ pin. So you can't adjust the current to sero when you only adjust the "IADJ" pin.

BR

Sean

0 FRANK1 over 4 years ago in reply to Sean Zhou

TI__Expert 8535 points

Hi Sean，

Thank you for your verification.

0 Sean Zhou over 4 years ago in reply to FRANK1

TI__Mastermind 22745 points

Hi Frank,

OK, let us know if you have more questions.

BR

Sean
