LM5060: gate keep low after EMC testing

Hi Chen,

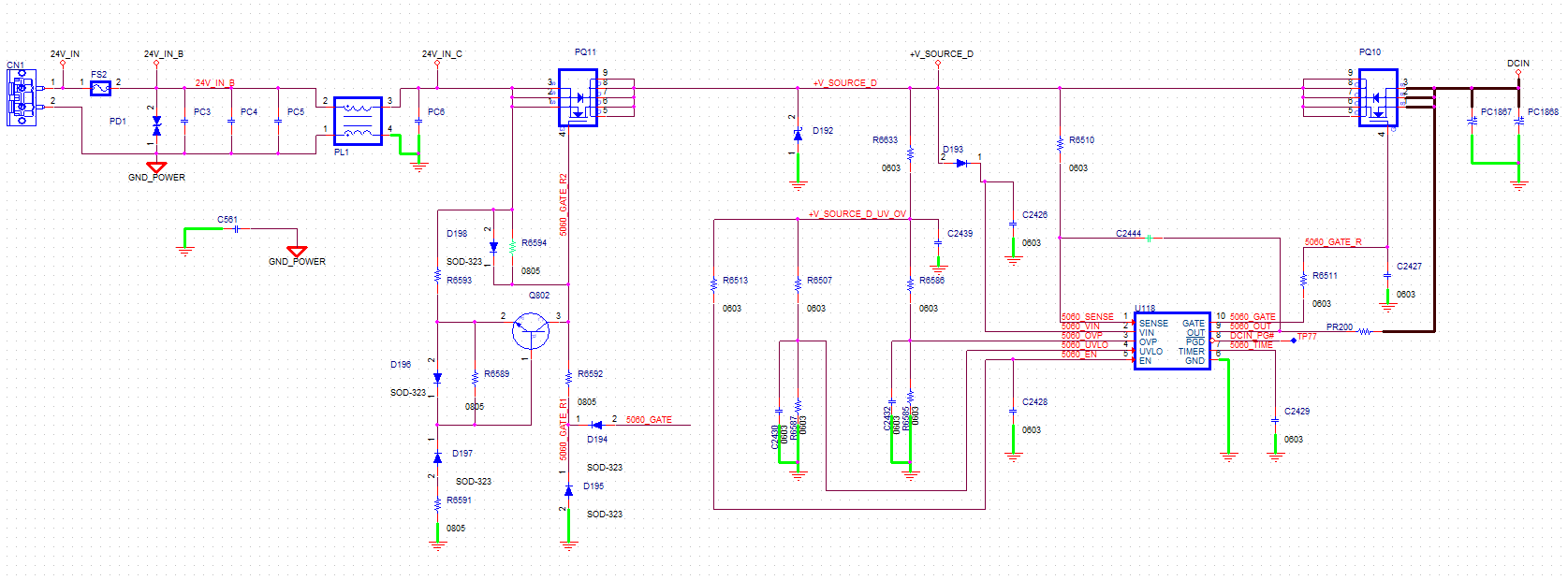

Can you please share the schematic to look at.?

Best Regards, Rakesh

Hi

it looks like LM5060 can not endure noise，and LM5060 can not recover anymore.(Gate become low)

do you have any suggestion

Hi Chen,

Schematic looks fine.

What is the source and supply profile during your testing ? Can you capture UV, OV, GATE, Timer waveforms during the test ?

We have not conducted similar tests on LM5060 and like to understand. Is there particular IEC standard you need to comply ?

Best Regards, Rakesh

hi

I don't have waveform on hand.

but I fond "timer" is become low.

I think fault detection is triggered

sense resistor is 100k.

is there any way to cancel the sense function?

how to make sensor NO sensitive?

Hi Chen,

You can increase sense resistor to increase the current limit threshold.

Please capture UV, OV, GATE, Timer waveforms during the test and provide us to understand the issue.

Best Regards, Rakesh

Hi

I update my testing result

when testing fail,  I fond "timer" becomes high ~

could you tell me , what is the correct waveform for timer pin?

Hi Chen,

Once the device hits overcurrent event, the TIMER starts charging from 0V and stays HIGH.

Best Regards, Rakesh
