BQ34110: Top/Bottom SOC % interval to fit

K.Yaita

Part Number: BQ34110
Other Parts Discussed in Thread: BQSTUDIO, GPCCEDV

Hi Team,

I would like to ask about GPCPackager in bqStudio.
Could you tell me what value to be set for "Top SOC % interval to fit" and "Bottom SOC % interval to fit"?
I would also like to know the meaning of these parameters.

Best Regards,
Yaita

over 4 years ago

0 Wyatt Keller over 4 years ago

TI__Guru** 105760 points

Hello Yaita,

You can reference the document in the GPCCEDV page, it gives the normal values for those settings. This is the range the gauge will correlate the voltage more directly with the SOC.

www.ti.com/.../GPCCEDV

Sincerely,

Wyatt Keller

0 K.Yaita over 4 years ago in reply to Wyatt Keller

Guru 29720 points

Hi Wyatt-san,

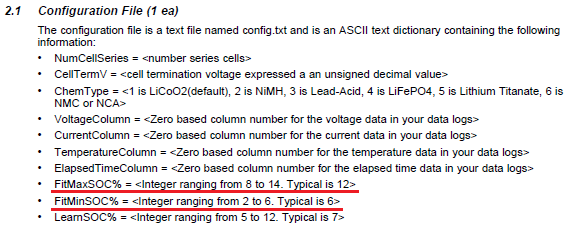

GPC guide shows the following.
Should we set "Top SOC % interval to fit"=12 and "Bottom SOC % interval to fit"=6 at first?

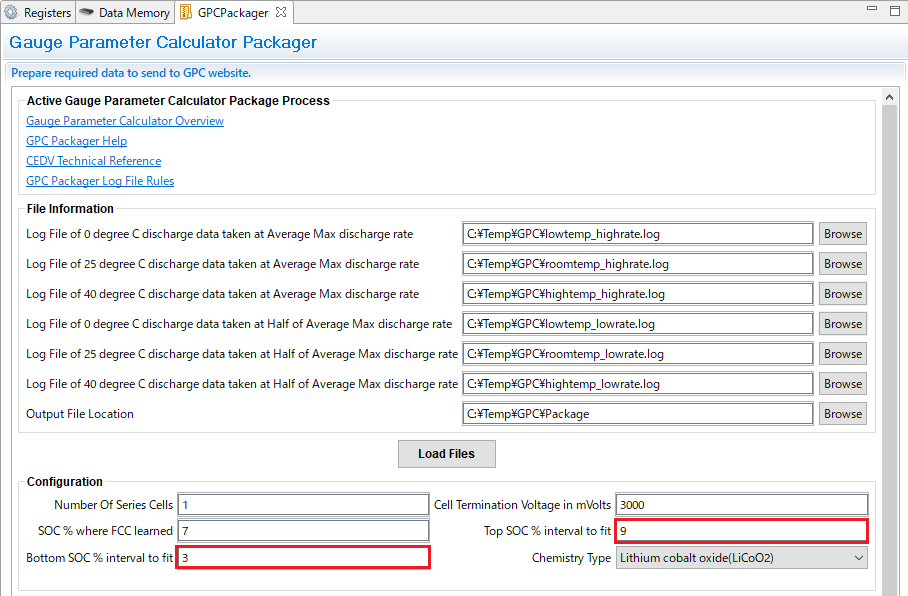

On the other hand, the dafault value of GPCPackager is "Top SOC % interval to fit"=9 and "Bottom SOC % interval to fit"=3 as the following, so I would like to clarify.

I would like to know what is the case we should adjust these parameters just for a reference.

Best Regards,
Yaita

0 Wyatt Keller over 4 years ago in reply to K.Yaita

TI__Guru** 105760 points

Hello Yaita-san,

I would use the recommended values in the guide document on the GPCCEDV webpage.

Sincerely,

Wyatt Keller
