TPS560430: TPS560430X3F

Kuramochi Tadahiko

Guru 28715 points

Part Number: TPS560430

Hi,

The following waveform was observed on TPS560430X3F schematic.

I think that converter mode moves from PFM to PWM.

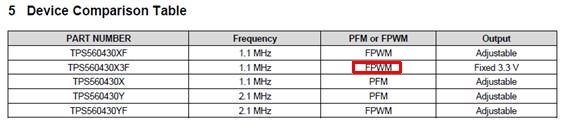

However, this device is TPS560430"X3F".

Is this behavior appropriate?

Best Regards,
Kuramochi

0 Wendy Wang1 over 4 years ago

Hi Kuramochi,

Mode transition from PFM to FPWM should be from light load to heavy load, while the waveform looks opposite.

Besides, when the high-side switch is on, the current drops instead. Which point does IOUT represents?

The behavior looks inappropriate. Could you please send us the schematic to review?

Best regards,

Wendy

0 Kuramochi Tadahiko over 4 years ago in reply to Wendy Wang1

Guru 28715 points

Hi Wendy-san,

Thank you for your reply.

In the first place, can TPS560430"X3F enter PFM mode?

Best Regards,

Kuramochi

0 Wendy Wang1 over 4 years ago in reply to Kuramochi Tadahiko

Hi Kuramochi,

No, it can't.

Best regards,

Wendy
