LM25085: PSPICE Simulation Error

Akash Tripathi1

Part Number: LM25085

Hey Team,

I am simulating a Buck Converter using the LM25085 and have a persistent error as follows:

'ERROR(ORPSIM-15143): Voltage source and/or inductor loop involving V_Vin1. You may break the loop by adding a series resistance'

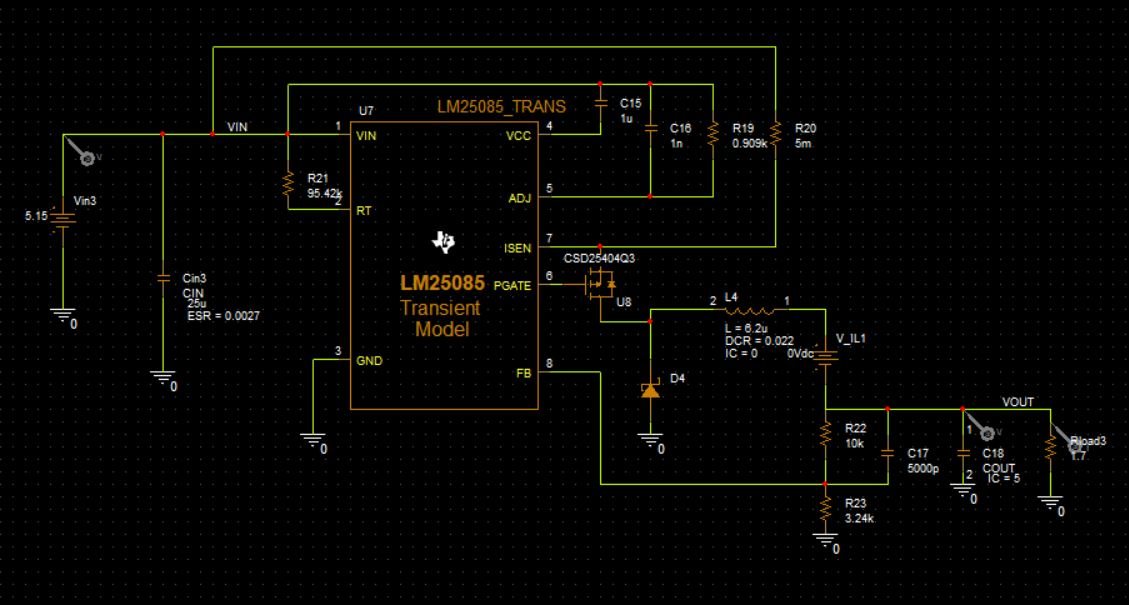

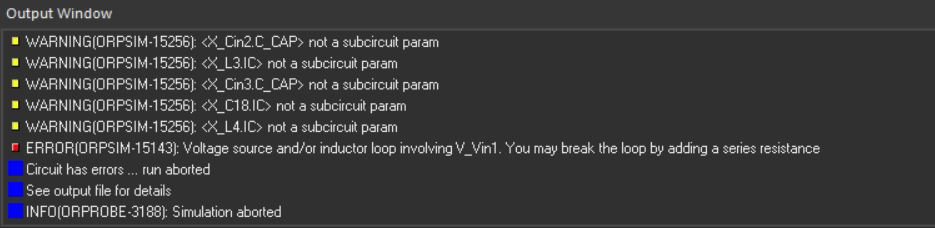

I am attaching the schematic and the error images for your reference.

Please help me rectify this, looking forward to your support

Thanks,

Akash

0 Daniel Li14 over 4 years ago

you can try to remove V_IL1 to see whether it work.

Thanks

0 Akash Tripathi1 over 4 years ago in reply to Daniel Li14

Hey,

Yes I have tried that i.e., removing the V_IL1 and the error still persists.

Please let me know if there is any other solution.

Regards,

Akash

0 Orlando Murray over 4 years ago in reply to Akash Tripathi1

Akash,

Is your CIN capacitance parameter ignored?

Your spice warnings lead me to believe C3 is not modeled as a capacitor.

I suggest using a capacitor model similar to C17 or one that doesn't give you warnings.

Hope this helps,

-Orlando
