Part Number: LM5176-Q1

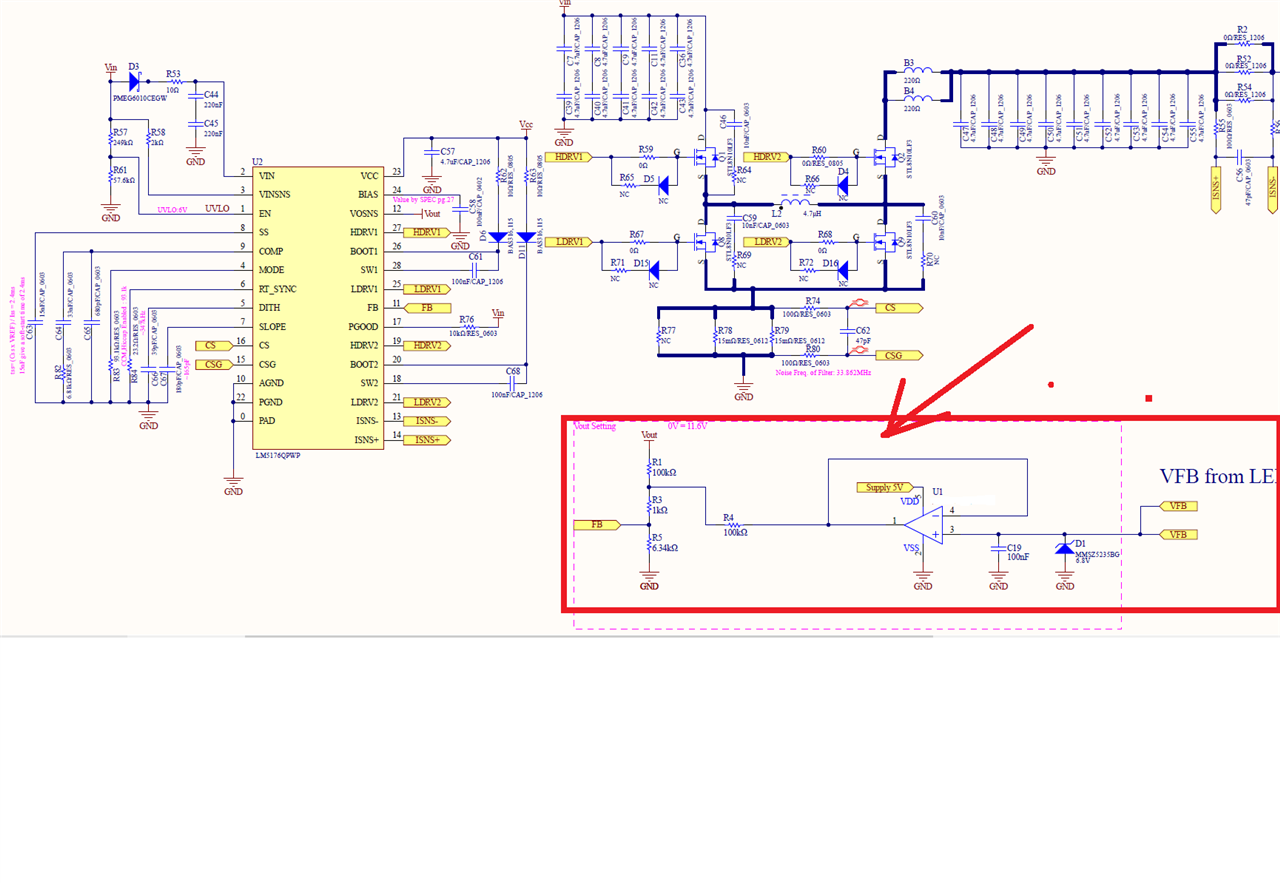

Can i use the circuit indicated below to control the output voltage ?

over 4 years ago

0 EM over 4 years ago

TI__Genius 11215 points

Hello PYTsai,

Thanks for your question. Are you trying to trim the Vout to different values? If yes, what is your nominal Vout and within which range would you like to trim it? Could you specify your Vin and the range for VFB?

Kind regards,

Elisabetta

0 5005526 over 4 years ago in reply to EM

Prodigy 10 points

What is the nominal Vout you want for your circuit ? 11.6V
Within which Vout range would you like to trim it? 8.3V~11.6V
The Vin range ? 9V~16V
The range for VFB? 0~5V

0 PYTsai over 4 years ago in reply to 5005526

TI__Genius 11900 points

Hi Elisabetta

Pls check my customer's voltage range information in the above poet, thanks!

+1 EM over 4 years ago in reply to PYTsai

TI__Genius 11215 points

Hello,

Schematics looks ok to trim in this range, please take into consideration that you might want to change the 100kOhm resistor (R4) to trim more or less accurately.

Kind regards,

Elisabetta
