TPS61023: PSpice model ERROR(ORPSIM-16592)

Srinjay Bhattacharya

Part Number: TPS61023

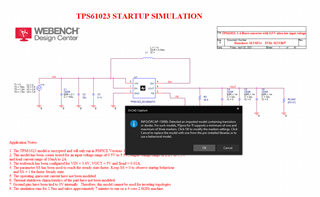

I received the following error while simulating the official PSpice for TI simulation file without making any changes to it:

Please guide me how to solve this unexpected behaviour.

Also the same device model TPS61023 is not available in the internal components library of PSpice for TI software.

Thank You,
With Regards,
Srinjay Bhattacharya

over 4 years ago

0 Jasper Li over 4 years ago

TI__Mastermind 46905 points

Hi Srinjay,

I think you can still simulation the model, but just limit the probe attached to the model. we need time to modify the model

0 Srinjay Bhattacharya over 4 years ago in reply to Jasper Li

Prodigy 140 points

As you can see from my previous attached image, I have not attached any probe and infact this is the official simulation model without any changes or modifications and still I am not able to run it.
Please let me know how shall I proceed so that I can atleast run the basic official model.

Thank You,
With Regards,
Srinjay Bhattacharya

0 Abbas Mehdi over 4 years ago in reply to Jasper Li

Intellectual 580 points

This does not help. It is creating bottlenecks in our developments. Please try to resolve this soon.

0 Jasper Li over 4 years ago in reply to Abbas Mehdi

TI__Mastermind 46905 points

Hi Abbas,

as I try, the simulation works after adding a voltage marker to the circuit. please try again.

0 Srinjay Bhattacharya over 4 years ago in reply to Jasper Li

Prodigy 140 points

Hi Jasper Li,

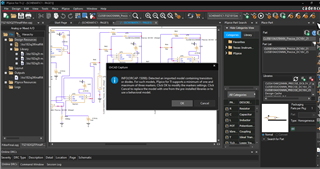

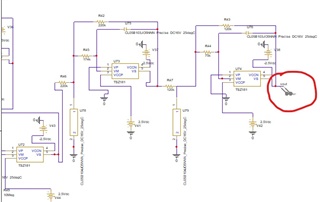

The problem didn;t solve and while using another 3rd party op-amp model, I faced the same problem of not more than two makers whereas I've used only 1 marker. Please look into this as well and try to resolve this soon.

Thank You,
With Regards,
Srinjay Bhattacharya

0 Jasper Li over 4 years ago in reply to Srinjay Bhattacharya

TI__Mastermind 46905 points

Hi Srinjay,

do you mean the TPS61023 can't simulate after adding a voltage to the output?

I also transit the post the model forum. hope expert from the model team can solve it.

0 JC Zhu over 4 years ago in reply to Jasper Li

TI__Mastermind 37350 points

Hi Jasper,

I just sent you an email about how to enable the model in PSpice for TI.

Thanks,

0 Srinjay Bhattacharya over 4 years ago in reply to JC Zhu

Prodigy 140 points

Hi Jasper,
No, I meant that despite using less than 3 markers, I get this error message and am unable to simulate. Also this is not only the case for TPS61023, but also for other 3rd party models as shown in my previous reply.
Please look into this as well and try to resolve this soon

Thanks,
Srinjay

0 JC Zhu over 4 years ago in reply to Srinjay Bhattacharya

TI__Mastermind 37350 points

Hi Srinjay,

I see that you've started a new thread at (+) Error message: INFO(ORCAP-15098) - Simulation, hardware & system design tools forum - Simulation, hardware & system design tools - TI E2E support forums.

In the future, please note that this is unnecessary. As Jasper mentioned, we can assign threads without the need to move them from one forum to another.

We'll continue this on your new thread and I am closing this one.

Thanks,
JC
