LM5155-Q1: Can't run simulation of LM5155-Q1_trans.opj(Flyback_Startup)

Shota Mago

Part Number: LM5155-Q1
Other Parts Discussed in Thread: LM5155,

Hi team,

My customer is designing a flyback converter using LM5155, and trying to simulate on PSPICE for TI.

He is trying to simulate LM5155-Q1 FLYBACK STARTUP SIMULATION which is incorporated to reference design whose project file is LM5155-Q1_TRANS.OPJ.

However, he can't place a marker on the schematic by error of "Markers can not be placed on a page that is not within the current hierarchy" though its schematic page is activated. When he try to change simulation profile to "Flyback-startup-trans" from "Startup-trans" default setting, the PC is frozen...

You can download the project file from here which can be accessed via TI internal network.

[Question]

What should we do to run the simulation of LM5155-Q1 FLYBACK STARTUP SIMULATION ?
The customer would like to simulate flyback converter with transformer which has AUX winding.
The reference design uses named "750317933" transformer. How can he model transformer with AUX winding?
Is it possible to edit 750317933 transformer?
I copied whole parts of LM5155-Q1 FLYBACK STARTUP SIMULATION to schematic of another new project. But it also can't run successfully because I think it doesn't include .lib faile of opto-coupler and transformer. Could you please send me these models offline?

Best regards,

Shota Mago

over 4 years ago

0 EM over 4 years ago

TI__Genius 11215 points

Hello,

Thanks for reaching out. Changing the simulation profile to "flyback startup trans" you should be able to run your simulation. Are you sure that the Pspice you are using is correctlly installed and updated? What happens if you download it again from the TI website and try to run it with one marker ? Are the other two simulation profiles working (e.g. the boost)?

Kind regards,

Elisabetta

0 Shota Mago over 4 years ago in reply to EM

TI__Expert 8110 points

Hi Elisabetta,

I recently installed PSPICE for TI again, and no problem so far.

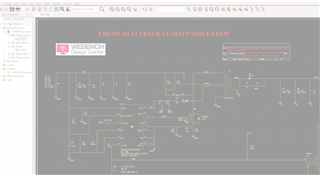

When I change the simulation profile to "flyback startup trans", my PC get frozen as below.

Other simulation profiles(Startup_trans, Steady_State-trans, Sepic) profile works properly.

So the problems occurs only at flyback.

What about 2nd and 3rd question?

Best regards,

Shota Mago

0 Shota Mago over 4 years ago in reply to Shota Mago

TI__Expert 8110 points

Hi Elisabetta,

I have update on these inquiry.

When I change simulation profile to flyback, PSPICE for TI gets freeze. But it recovers normal after waiting around 20min. Then, I could run the simulation.

Since it takes so long time for each action, I made another project using LM5155-Q1DSSS_TRANS.

I emulated 750317933 using 3 inductors and K_Linear. Also, I could save encrypted model of PS2811 as .lib file then imported to the project.

Finally, the new project is able to run simulation more smoothly.

Best regards,

Shota Mago

0 EM over 4 years ago in reply to Shota Mago

TI__Genius 11215 points

Hello,

Thanks for the update. The simulator should anyway not freeze in this way, I am currently in touch with the team that takes care on this type of issues to find out the root cause.

Kind regards,

Elisabetta

0 JC Zhu over 4 years ago in reply to EM

TI__Mastermind 37350 points

Hi Elisabetta,

I've duplicated the behavior. It could be something in the project. Will give you an update in a week.

Regards,
JC

0 JC Zhu over 4 years ago in reply to JC Zhu

TI__Mastermind 37350 points

Hi Elisabetta,

I heard back from the development team. The issue is reproducible at their end as well. I expect some update next week.

Regards,
JC

0 EM over 4 years ago in reply to JC Zhu

TI__Genius 11215 points

Hello JC,

Thanks for the update.

Kind regards,

Elisabetta

0 uccuser over 4 years ago in reply to EM

Prodigy 115 points

Hi Elisabetta,

i met the same problem when running with Flyback_Startup. Could you please get feedback to identify the problem ?

Thank you very much.

Xiaofeng

0 EM over 4 years ago in reply to uccuser

TI__Genius 11215 points

Hello Xiaofeng,

I myself am currently waiting for a feedback from the PSPICE team. Please monitor this thread for further updates.

Kind regards

0 uccuser over 4 years ago in reply to EM

Prodigy 115 points

Hallo Elisabetta,

Thank you for reply. The simulation works.

Is it possible to deliver a unencrypted model of flyback transformer so that user can adapt the simulation to his own application?

Kind Regards

0 EM over 4 years ago in reply to uccuser

TI__Genius 11215 points

Hello Xiaofeng,

I currently do not have an unencrypted transformer model.

Hello JC,

Can we provide the unencrypted model for Xiaofeng?

Kind regards.

0 uccuser over 4 years ago in reply to EM

Prodigy 115 points

Hallo Elisabetta,

Thank you for reply.

I am now trying to simulate with LTspice. I got all LTspice model except the LTspice model LM5155-Q. I can download a

LM5155-Q1_TRANS.LIB from your Webpage. But I can not creat the Symble of LM5155-Q in LTspice.

Can you send me a LTspice model for it ?

I open the uncrypted Pspice model of LM5155-Q in Pspice for TI and save the

.SUBCKT LM5155-Q1_TRANS

I generated a Symble of LM5155 in LTspice with the .SUBCKT LM5155-Q1_TRANS. But simulation runs into error with some error information in the textcode in .SUBCKT LM5155-Q1.

Can you help me.

Thank you!

0 JC Zhu over 4 years ago in reply to EM

TI__Mastermind 37350 points

HI Elisabetta,

I sent you an email about the unencrypted model. Please follow up.

Thanks,
JC

0 EM over 4 years ago in reply to uccuser

TI__Genius 11215 points

Hello Xiaofeng,

Unfortunately we do not support LT Spice simulations.

Kind regards.

0 JC Zhu over 4 years ago in reply to EM

TI__Mastermind 37350 points

All,

I am closing this as I don't see an outstanding issue here. Will come back and update it when there's an updated on the frozen issue caused by switching sim profiles.

Regards,
JC

0 JC Zhu over 4 years ago

TI__Mastermind 37350 points

Hi Xiaofeng,

I just split this into a different thread. It is difficult to look through a long thread with multiple questions from multiple users nonetheless.

here's the new thread:

(+) RE: LM5155-Q1: Can't run simulation of LM5155-Q1_trans.opj(Flyback_Startup) - Simulation, hardware & system design tools forum - Simulation, hardware & system design tools - TI E2E support forums

Thanks,
JC
