AM6412: am6412: how to configure gpio speed

baicai qin

Part Number: AM6412

Hi expert,

Linux SDK ti-processor-sdk-linux-am64xx-evm-09.00.00.03.

We have a gpio question need your help:
We are working on a custom board based on TI AM6412. We tested and found that main_gpio0 and main_gpio1 speed is about 2M.We tried to change gpio speed to 10M or higher, but we didn't know how to configure it. What is the maximum speed that gpio can support,and how can we configure the gpio speed?

Thanks!

over 1 year ago

0 Anshu Madwesh over 1 year ago

TI__Genius 17850 points

Hi Baicai,

Can you explain how you tested the GPIO speed?

I am currently looking into the device tree bindings documentation to see if there is any information about controlling the speed.

Best Regards,

Anshu

0 Anshu Madwesh over 1 year ago in reply to Anshu Madwesh

TI__Genius 17850 points

Hi Baicai,

GPIOs are software controlled and the peripheral does not have a clock that controls them. So, the 2MHz measured is the only speed it will operate at.

Best Regards,

Anshu

0 baicai qin over 1 year ago in reply to Anshu Madwesh

Prodigy 30 points

Hi Anshu,

Thank you very much for your reply

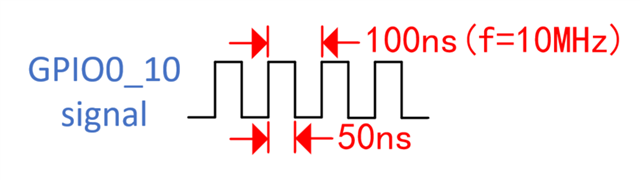

We would like to emulate the output of a CLK signal for an extended chip via gpio toggle, which needs to support a frequency of over 10M. The gpio toggle signal is as follows:

"GPIOs are software controlled and the peripheral does not have a clock that controls them." ,can we control the GPIO toggle speed through software in uboot or Linux kernel? if we can,how to control it

Thanks and regards,

Baicai

0 Anshu Madwesh over 1 year ago in reply to baicai qin

TI__Genius 17850 points

Hi Baicai,

Our PWM expert is currently out of office until the end of October. I will provide some resources for you to review.

AM64x Processor SDK Documentation on PWM: https://software-dl.ti.com/processor-sdk-linux/esd/AM64X/09_00_00_03/exports/docs/linux/Foundational_Components/Kernel/Kernel_Drivers/PWM.html

Other E2E threads that may be relevant:
https://e2e.ti.com/support/processors-group/processors/f/processors-forum/956962/compiler-am3352-using-timer-to-create-square-wave-output/3537090#3537090

https://e2e.ti.com/support/processors-group/processors/f/processors-forum/1242640/am625-ecap/4766153#4766153

https://e2e.ti.com/support/processors-group/processors/f/processors-forum/1241612/am6442-pru-icss-pwm-linux-driver

Best Regards,

Anshu

0 baicai qin over 1 year ago in reply to Anshu Madwesh

Prodigy 30 points

Hi Anshu,

Thank you for your help on this item.I will try it on my board later.

Thanks and regards,
Baicai
