TDA2EXEVM: video decoder camera capture from VIP

RAJ.M

Expert 2440 points

Part Number: TDA2EXEVM

Hi All,

We are using tda2ex evm with vision sdk 2.12.

We are running Linux(A15) + Bios(IPU).

1. We want to capture analog (interlace) video output from video decoder to VIP Port.

This is my usecase

UseCase: chains_vipSingleCam_SgxDisplay

Capture -> VPE_dei -> Display_M4 (IPU1_0)

// Graphics overlay display
GrpxSrc -> Display_Grpx

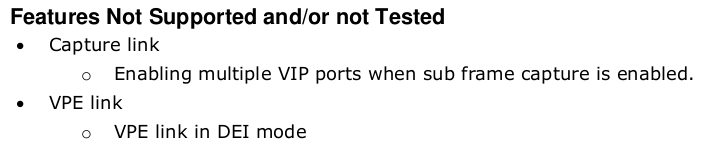

2. In vision SDK Datasheet

How to capture video decoder interlace video on Linux + bios mode?

3. In linux usecase /hlos/examples/adas/src/usecases/

what is SgxFrmcpy (A15) when we need to use?

Regards,

RAJ M

over 8 years ago

0 Yordan Kamenov over 8 years ago

TI__Mastermind 42515 points

Hi Raj,

I have forwarded your question to Linux video expert.

Regards,
Yordan

0 Nikhil Devshatwar over 8 years ago in reply to Yordan Kamenov

TI__Genius 9905 points

Current Vision SDK does not support analog video capture. The only way this can be achieved is by doing DEI in Linux. Linux driver support DEI using Linux VPE driver. You can do capture from Linux, perform the DEI and then share these buffers to Vision SDK Make sure that the buffers are allocated from a carved out area and mapped into IPU memory space. Regards, Nikhil D

0 RAJ.M over 8 years ago in reply to Nikhil Devshatwar

Expert 2440 points

Hi,

Current Vision SDK does not support analog video capture.

In BIOS only mode TVP5158(analog video) capture done and validated in vision SDK 2.12 as Shiju Sivasankaran told in another thread.

As you know TVP5158 output interlace so they will use DEI to convert progressive.

We want to achieve similar on Linux (usecase) + bios(VIP VPE DSS on IPU2(BIOS) side) mode.

Regards,

RAJ M

0 Nikhil Devshatwar over 8 years ago in reply to RAJ.M

TI__Genius 9905 points

Can you please elaborate your usecase (mentioned above) with the core information.

Is this like capture(IPU) -> VPE-DEI(A15) -> SgxFrmCpy(A15) -> Display(M4)

Above is possible. You have to write a VPE link on the A15 (which uses the V4L2 VPE driver for DEI)

Regards,
Nikhil D

0 RAJ.M over 8 years ago in reply to Nikhil Devshatwar

Expert 2440 points

Hi,

This is my usecase flow.

In the blow link already discussed about analog video capture(TVP5158).

https://e2e.ti.com/support/arm/automotive_processors/f/1021/t/574920.

We are running Linux(A15) + Bios(IPU). we want do capture tvp5158 as capture (IPU) -> VPE_DEI(IPU) ->Diplay(M4).

Regards,

RAJ M

0 Shiju Sivasankaran over 8 years ago in reply to RAJ.M

TI__Genius 13395 points

Hi
This TVP5158 video decoder is not supported on A15 linux in VSDK linux,
why can't you have the capture running on IPU (Bios)?
please refer the usecase \vision_sdk\examples\tda2xx\src\usecases\vip_single_rvc_cam_view_crc from vsdk 2.12, which is the closest one to your requirement.

regards, Shiju

0 RAJ.M over 8 years ago in reply to Shiju Sivasankaran

Expert 2440 points

Hi Shiju,

We have linux running on A15 and, we are going to configure the decoder from A15. capture, display from IPU(BIOS).

so we need Linux(A15) + Bios(IPU) usecase with DEI support

Regards,
RAJ M

0 Shiju Sivasankaran over 8 years ago in reply to RAJ.M

TI__Genius 13395 points

Raj
Then you will have to port these TVP drivers on Linux, TI do not have any plans to do this on A15 linux.
regards, Shiju

0 RAJ.M over 8 years ago in reply to Shiju Sivasankaran

Expert 2440 points

Hi shiju,

 Then you will have to port these TVP drivers on Linux, TI do not have any plans to do this on A15 linux.

We will port TVP driver on linux.

we need Linux(A15) + Bios(IPU) usecase with DEI support?

Regards,

RAJ M

0 Shiju Sivasankaran over 8 years ago in reply to RAJ.M

TI__Genius 13395 points

please go ahead and add the usecase, all necessary links are alreday supported.

refer VisionSDK_Overview_UsecaseGen.pdf & VisionSDK_Overview_UsecaseGen.pdf to auto-genrate the Usecase code

regards, Shiju
