EMIF default register value

ZIYANG YE

Intellectual 360 points

Other Parts Discussed in Thread: 66AK2E05

Hi,

I am trying to use EMIF16 interface,

the EMIF document of 66AK2E05 doesn't tell the reset value of 'WAIT map bits for CEx',

could you tell me what the default value is?

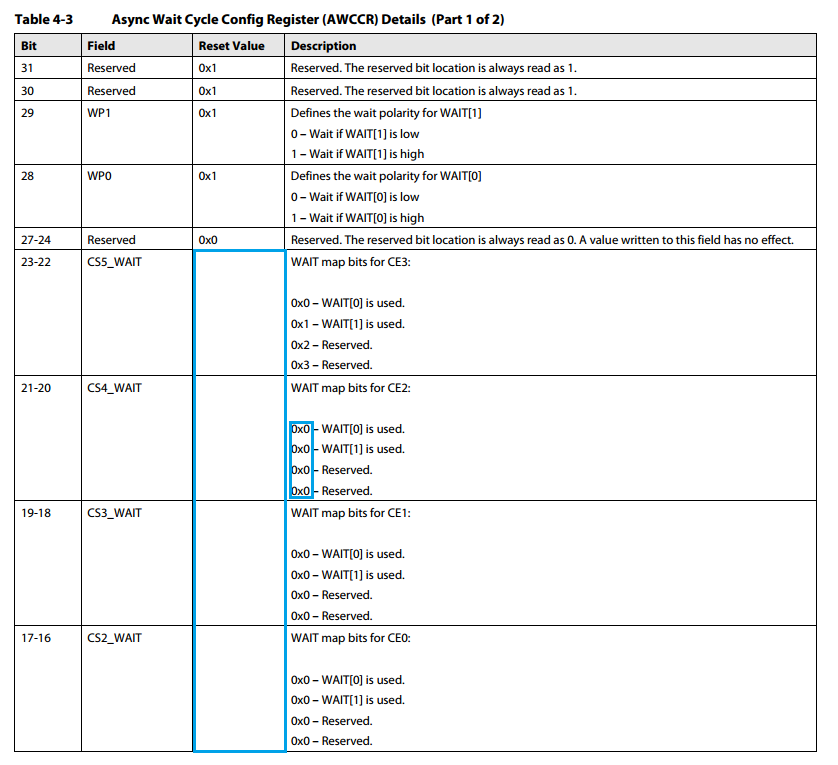

And is there a problem of the info below ?

0x0 WAIT[0] is used.

0x0 WAIT[1] is used.

0x0 Reserved.

Any help on this will be appreciated.

Regards,

kevin

over 9 years ago

0 Raja over 9 years ago

TI__Guru* 81335 points

Hi Kevin,

Thank you for your braining to our notice. I will file a litbug to correct the same.

I have observed the power on reset value of this AWCCR register is: 0xF0040080. I have checked this by connecting emulator to core0 after power on.

CS5_WAIT - 0x0 - WAIT[0] is used.
CS4_WAIT - 0x0 - WAIT[0] is used.
CS3_WAIT - 0x1 - WAIT[1] is used.
CS2_WAIT - 0x0 - WAIT[0] is used.

Thank you.

0 ZIYANG YE over 9 years ago in reply to Raja

Intellectual 360 points

Hi Rajasekaran K,

Thanks a lot for clarifying !

I need to change the value like CSx_WAIT on the arm side(linux),

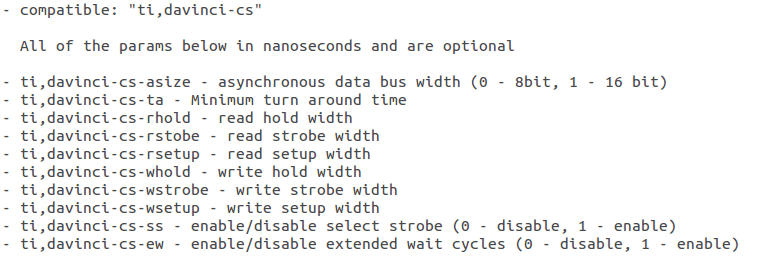

but it seems that I can only change the following paras(.dts file):

and I can't map the EMIF registers directly to change that: e2e.ti.com/.../454431

Could you give a little more information on this?

Thank you!

Regards,

kevin

0 Titusrathinaraj Stalin over 9 years ago in reply to ZIYANG YE

TI__Guru** 116100 points

Dear Kevin,
I checked the EMIF driver, we didn't implement CSx_WAIT, you can implement your own.
1) You have to add CSx_WAIT node in dts and parse the value then implement it in driver as "wsetup" done.
2) You can also do "__raw_writel" to write the particular CSx_WAIT value.

Driver location:

linux-keystone/drivers/memory/davinci-aemif.c

0 ZIYANG YE over 9 years ago in reply to Titusrathinaraj Stalin

Intellectual 360 points

Hi Titus S.，

Thank you! You answer is very helpful !

Regards,
kevin

0 Titusrathinaraj Stalin over 9 years ago in reply to ZIYANG YE

TI__Guru** 116100 points

Dear Kevin,
Thanks for your update.
