I have a AM5728 custom board.
I use ti-processor-sdk-linux-am57xx-evm-06.03.00.106-Linux-x86-Install.bin
I use am57xx-beagle-x15-common.dtsi, I just changed "assigned-clocks = <&l4per_clkctrl DRA7_MCASP3_CLKCTRL 24>" to "assigned-clocks = <&l4per_clkctrl DRA7_MCASP3_CLKCTRL 22>;"
/*
* Copyright (C) 2014-2016 Texas Instruments Incorporated - http://www.ti.com/
*
* This program is free software; you can redistribute it and/or modify
* it under the terms of the GNU General Public License version 2 as
* published by the Free Software Foundation.
*/
/dts-v1/;
#include "dra74x.dtsi"
#include "am57xx-commercial-grade.dtsi"
#include "dra74x-mmc-iodelay.dtsi"
#include "dra74-ipu-dsp-common.dtsi"
#include <dt-bindings/gpio/gpio.h>
#include <dt-bindings/interrupt-controller/irq.h>
/ {
compatible = "ti,am572x-beagle-x15", "ti,am5728", "ti,dra742", "ti,dra74", "ti,dra7";
aliases {
rtc0 = &mcp_rtc;
rtc1 = &tps659038_rtc;
rtc2 = &rtc;
display0 = &hdmi0;
sound0 = &sound0;
sound1 = &hdmi;
};
chosen {
stdout-path = &uart3;
};
memory@0 {
device_type = "memory";
reg = <0x0 0x80000000 0x0 0x80000000>;
};
reserved-memory {
#address-cells = <2>;
#size-cells = <2>;
ranges;
ipu2_memory_region: ipu2-memory@95800000 {
compatible = "shared-dma-pool";
reg = <0x0 0x95800000 0x0 0x3800000>;
reusable;
status = "okay";
};
dsp1_memory_region: dsp1-memory@99000000 {
compatible = "shared-dma-pool";
reg = <0x0 0x99000000 0x0 0x4000000>;
reusable;
status = "okay";
};
ipu1_memory_region: ipu1-memory@9d000000 {
compatible = "shared-dma-pool";
reg = <0x0 0x9d000000 0x0 0x2000000>;
reusable;
status = "okay";
};
dsp2_memory_region: dsp2-memory@9f000000 {
compatible = "shared-dma-pool";
reg = <0x0 0x9f000000 0x0 0x800000>;
reusable;
status = "okay";
};
};
main_12v0: fixedregulator-main_12v0 {
/* main supply */
compatible = "regulator-fixed";
regulator-name = "main_12v0";
regulator-min-microvolt = <12000000>;
regulator-max-microvolt = <12000000>;
regulator-always-on;
regulator-boot-on;
};
evm_5v0: fixedregulator-evm_5v0 {
/* Output of TPS54531D */
compatible = "regulator-fixed";
regulator-name = "evm_5v0";
regulator-min-microvolt = <5000000>;
regulator-max-microvolt = <5000000>;
vin-supply = <&main_12v0>;
regulator-always-on;
regulator-boot-on;
};
vdd_3v3: fixedregulator-vdd_3v3 {
compatible = "regulator-fixed";
regulator-name = "vdd_3v3";
vin-supply = <®en1>;
regulator-min-microvolt = <3300000>;
regulator-max-microvolt = <3300000>;
};
aic_dvdd: fixedregulator-aic_dvdd {
compatible = "regulator-fixed";
regulator-name = "aic_dvdd_fixed";
vin-supply = <&vdd_3v3>;
regulator-min-microvolt = <1800000>;
regulator-max-microvolt = <1800000>;
};
vtt_fixed: fixedregulator-vtt {
/* TPS51200 */
compatible = "regulator-fixed";
regulator-name = "vtt_fixed";
vin-supply = <&smps3_reg>;
regulator-min-microvolt = <3300000>;
regulator-max-microvolt = <3300000>;
regulator-always-on;
regulator-boot-on;
enable-active-high;
gpio = <&gpio7 11 GPIO_ACTIVE_HIGH>;
};
leds {
compatible = "gpio-leds";
led0 {
label = "beagle-x15:usr0";
gpios = <&gpio7 9 GPIO_ACTIVE_HIGH>;
linux,default-trigger = "heartbeat";
default-state = "off";
};
led1 {
label = "beagle-x15:usr1";
gpios = <&gpio7 8 GPIO_ACTIVE_HIGH>;
linux,default-trigger = "cpu0";
default-state = "off";
};
led2 {
label = "beagle-x15:usr2";
gpios = <&gpio7 14 GPIO_ACTIVE_HIGH>;
linux,default-trigger = "mmc0";
default-state = "off";
};
led3 {
label = "beagle-x15:usr3";
gpios = <&gpio7 15 GPIO_ACTIVE_HIGH>;
linux,default-trigger = "disk-activity";
default-state = "off";
};
};
gpio_fan: gpio_fan {
/* Based on 5v 500mA AFB02505HHB */
compatible = "gpio-fan";
gpios = <&tps659038_gpio 2 GPIO_ACTIVE_HIGH>;
gpio-fan,speed-map = <0 0>,
<13000 1>;
#cooling-cells = <2>;
};
hdmi0: connector {
compatible = "hdmi-connector";
label = "hdmi";
type = "a";
port {
hdmi_connector_in: endpoint {
remote-endpoint = <&tpd12s015_out>;
};
};
};
tpd12s015: encoder {
compatible = "ti,tpd12s015";
ports {
#address-cells = <1>;
#size-cells = <0>;
port@0 {
reg = <0>;
tpd12s015_in: endpoint {
remote-endpoint = <&hdmi_out>;
};
};
port@1 {
reg = <1>;
tpd12s015_out: endpoint {
remote-endpoint = <&hdmi_connector_in>;
};
};
};
};

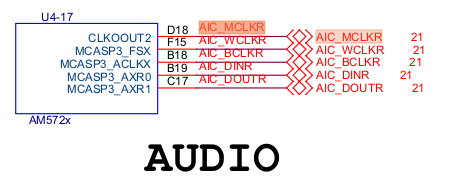

sound0: sound0 {
compatible = "simple-audio-card";
simple-audio-card,name = "BeagleBoard-X15";
simple-audio-card,widgets =
"Line", "Line Out",
"Line", "Line In";
simple-audio-card,routing =
"Line Out", "LLOUT",
"Line Out", "RLOUT",
"MIC2L", "Line In",
"MIC2R", "Line In";
simple-audio-card,format = "dsp_b";
simple-audio-card,bitclock-master = <&sound0_master>;
simple-audio-card,frame-master = <&sound0_master>;
simple-audio-card,bitclock-inversion;
simple-audio-card,cpu {
sound-dai = <&mcasp3>;
};
sound0_master: simple-audio-card,codec {
sound-dai = <&tlv320aic3104>;
clocks = <&clkout2_clk>;
};
};
};
&i2c1 {
status = "okay";
clock-frequency = <400000>;
tps659038: tps659038@58 {
compatible = "ti,tps659038";
reg = <0x58>;
interrupt-parent = <&gpio1>;
interrupts = <0 IRQ_TYPE_LEVEL_LOW>;
#interrupt-cells = <2>;
interrupt-controller;
ti,system-power-controller;
ti,palmas-override-powerhold;
tps659038_pmic {
compatible = "ti,tps659038-pmic";
regulators {
smps12_reg: smps12 {
/* VDD_MPU */
regulator-name = "smps12";
regulator-min-microvolt = < 850000>;
regulator-max-microvolt = <1250000>;
regulator-always-on;
regulator-boot-on;
};
smps3_reg: smps3 {
/* VDD_DDR */
regulator-name = "smps3";
regulator-min-microvolt = <1350000>;
regulator-max-microvolt = <1350000>;
regulator-always-on;
regulator-boot-on;
};
smps45_reg: smps45 {
/* VDD_DSPEVE, VDD_IVA, VDD_GPU */
regulator-name = "smps45";
regulator-min-microvolt = < 850000>;
regulator-max-microvolt = <1250000>;
regulator-always-on;
regulator-boot-on;
};
smps6_reg: smps6 {
/* VDD_CORE */
regulator-name = "smps6";
regulator-min-microvolt = <850000>;
regulator-max-microvolt = <1150000>;
regulator-always-on;
regulator-boot-on;
};
/* SMPS7 unused */
smps8_reg: smps8 {
/* VDD_1V8 */
regulator-name = "smps8";
regulator-min-microvolt = <1800000>;
regulator-max-microvolt = <1800000>;
regulator-always-on;
regulator-boot-on;
};
/* SMPS9 unused */
ldo1_reg: ldo1 {
/* VDD_SD / VDDSHV8 */
regulator-name = "ldo1";
regulator-min-microvolt = <1800000>;
regulator-max-microvolt = <3300000>;
regulator-boot-on;
regulator-always-on;
};
ldo2_reg: ldo2 {
/* VDD_SHV5 */
regulator-name = "ldo2";
regulator-min-microvolt = <3300000>;
regulator-max-microvolt = <3300000>;
regulator-always-on;
regulator-boot-on;
};
ldo3_reg: ldo3 {
/* VDDA_1V8_PHYA */
regulator-name = "ldo3";
regulator-min-microvolt = <1800000>;
regulator-max-microvolt = <1800000>;
regulator-always-on;
regulator-boot-on;
};
ldo4_reg: ldo4 {
/* VDDA_1V8_PHYB */
regulator-name = "ldo4";
regulator-min-microvolt = <1800000>;
regulator-max-microvolt = <1800000>;
regulator-always-on;
regulator-boot-on;
};
ldo9_reg: ldo9 {
/* VDD_RTC */
regulator-name = "ldo9";
regulator-min-microvolt = <1050000>;
regulator-max-microvolt = <1050000>;
regulator-always-on;
regulator-boot-on;
};
ldoln_reg: ldoln {
/* VDDA_1V8_PLL */
regulator-name = "ldoln";
regulator-min-microvolt = <1800000>;
regulator-max-microvolt = <1800000>;
regulator-always-on;
regulator-boot-on;
};
ldousb_reg: ldousb {
/* VDDA_3V_USB: VDDA_USBHS33 */
regulator-name = "ldousb";
regulator-min-microvolt = <3300000>;
regulator-max-microvolt = <3300000>;
regulator-boot-on;
};
regen1: regen1 {
/* VDD_3V3_ON */
regulator-name = "regen1";
regulator-boot-on;
regulator-always-on;
};
};
};
tps659038_rtc: tps659038_rtc {
compatible = "ti,palmas-rtc";
interrupt-parent = <&tps659038>;
interrupts = <8 IRQ_TYPE_EDGE_FALLING>;
wakeup-source;
};
tps659038_pwr_button: tps659038_pwr_button {
compatible = "ti,palmas-pwrbutton";
interrupt-parent = <&tps659038>;
interrupts = <1 IRQ_TYPE_EDGE_FALLING>;
wakeup-source;
ti,palmas-long-press-seconds = <12>;
};
tps659038_gpio: tps659038_gpio {
compatible = "ti,palmas-gpio";
gpio-controller;
#gpio-cells = <2>;
};
extcon_usb2: tps659038_usb {
compatible = "ti,palmas-usb-vid";
ti,enable-vbus-detection;
vbus-gpio = <&gpio4 21 GPIO_ACTIVE_HIGH>;
};
};
tmp102: tmp102@48 {
compatible = "ti,tmp102";
reg = <0x48>;
interrupt-parent = <&gpio7>;
interrupts = <16 IRQ_TYPE_LEVEL_LOW>;
#thermal-sensor-cells = <1>;
};
tlv320aic3104: tlv320aic3104@18 {
#sound-dai-cells = <0>;
compatible = "ti,tlv320aic3104";
reg = <0x18>;
assigned-clocks = <&clkoutmux2_clk_mux>;
assigned-clock-parents = <&sys_clk2_dclk_div>;
status = "okay";
adc-settle-ms = <40>;
AVDD-supply = <&vdd_3v3>;
IOVDD-supply = <&vdd_3v3>;
DRVDD-supply = <&vdd_3v3>;
DVDD-supply = <&aic_dvdd>;
};
eeprom: eeprom@50 {
compatible = "atmel,24c32";
reg = <0x50>;
};
};
&i2c3 {
status = "okay";
clock-frequency = <400000>;
mcp_rtc: rtc@6f {
compatible = "microchip,mcp7941x";
reg = <0x6f>;
interrupts-extended = <&crossbar_mpu GIC_SPI 2 IRQ_TYPE_EDGE_RISING>,
<&dra7_pmx_core 0x424>;
interrupt-names = "irq", "wakeup";
vcc-supply = <&vdd_3v3>;
wakeup-source;
};
};
&gpio7 {
ti,no-reset-on-init;
ti,no-idle-on-init;
};
&cpu0 {
vdd-supply = <&smps12_reg>;
voltage-tolerance = <1>;
};
&uart3 {
status = "okay";
interrupts-extended = <&crossbar_mpu GIC_SPI 69 IRQ_TYPE_LEVEL_HIGH>,
<&dra7_pmx_core 0x3f8>;
};
&davinci_mdio {
phy0: ethernet-phy@1 {
reg = <1>;
};
phy1: ethernet-phy@2 {
reg = <2>;
};
};
&mac {
status = "okay";
dual_emac;
};
&cpsw_emac0 {
phy-handle = <&phy0>;
phy-mode = "rgmii";
dual_emac_res_vlan = <1>;
};
&cpsw_emac1 {
phy-handle = <&phy1>;
phy-mode = "rgmii";
dual_emac_res_vlan = <2>;
};
&mmc1 {
status = "okay";
pinctrl-names = "default";
pinctrl-0 = <&mmc1_pins_default>;
bus-width = <4>;
cd-gpios = <&gpio6 27 GPIO_ACTIVE_LOW>; /* gpio 219 */
no-1-8-v;
};
&mmc2 {
status = "okay";
pinctrl-names = "default";
pinctrl-0 = <&mmc2_pins_default>;
vmmc-supply = <&vdd_3v3>;
vqmmc-supply = <&vdd_3v3>;
bus-width = <8>;
non-removable;
no-1-8-v;
};
&sata {
status = "okay";
};
&usb2_phy1 {
phy-supply = <&ldousb_reg>;
};
&usb2_phy2 {
phy-supply = <&ldousb_reg>;
};
&usb1 {
dr_mode = "host";
};
&omap_dwc3_2 {
extcon = <&extcon_usb2>;
};
&usb2 {
/*
* Stand alone usage is peripheral only.
* However, with some resistor modifications
* this port can be used via expansion connectors
* as "host" or "dual-role". If so, provide
* the necessary dr_mode override in the expansion
* board's DT.
*/
dr_mode = "peripheral";
};
&cpu_trips {
cpu_alert1: cpu_alert1 {
temperature = <50000>; /* millicelsius */
hysteresis = <2000>; /* millicelsius */
type = "active";
};
};
&cpu_cooling_maps {
map1 {
trip = <&cpu_alert1>;
cooling-device = <&gpio_fan THERMAL_NO_LIMIT THERMAL_NO_LIMIT>;
};
};
&thermal_zones {
board_thermal: board_thermal {
polling-delay-passive = <1250>; /* milliseconds */
polling-delay = <1500>; /* milliseconds */
/* sensor ID */
thermal-sensors = <&tmp102 0>;
board_trips: trips {
board_alert0: board_alert {
temperature = <40000>; /* millicelsius */
hysteresis = <2000>; /* millicelsius */
type = "active";
};
board_crit: board_crit {
temperature = <105000>; /* millicelsius */
hysteresis = <0>; /* millicelsius */
type = "critical";
};
};
board_cooling_maps: cooling-maps {
map0 {
trip = <&board_alert0>;
cooling-device =
<&gpio_fan THERMAL_NO_LIMIT THERMAL_NO_LIMIT>;
};
};
};
};
&gpu {
status = "ok";
};
&dss {
status = "ok";
vdda_video-supply = <&ldoln_reg>;
};
&bb2d {
status = "okay";
};
&hdmi {
status = "ok";
vdda-supply = <&ldo4_reg>;
port {
hdmi_out: endpoint {
remote-endpoint = <&tpd12s015_in>;
};
};
};
&pcie1_rc {
status = "ok";
gpios = <&gpio2 8 GPIO_ACTIVE_LOW>;
};
&mcasp3 {
#sound-dai-cells = <0>;
assigned-clocks = <&l4per_clkctrl DRA7_MCASP3_CLKCTRL 22>;
assigned-clock-parents = <&sys_clkin2>;
status = "okay";
op-mode = <0>; /* MCASP_IIS_MODE */
tdm-slots = <2>;
/* 4 serializers */
serial-dir = < /* 0: INACTIVE, 1: TX, 2: RX */
1 2 0 0
>;
tx-num-evt = <32>;
rx-num-evt = <32>;
};
&pruss_soc_bus1 {
status = "okay";
pruss1: pruss@4b200000 {
status = "okay";
};
};
&pruss_soc_bus2 {
status = "okay";
pruss2: pruss@4b280000 {
status = "okay";
};
};
&ipu2 {
status = "okay";
memory-region = <&ipu2_memory_region>;
};
&ipu1 {
status = "okay";
memory-region = <&ipu1_memory_region>;
};
&dsp1 {
status = "okay";
memory-region = <&dsp1_memory_region>;
};
&dsp2 {
status = "okay";
memory-region = <&dsp2_memory_region>;
};
#include "dra7-ipu-common-early-boot.dtsi"
This is my kernel log
the "assigned-clocks = <&l4per_clkctrl DRA7_MCASP3_CLKCTRL 24>"
DRA7_MCASP3_CLKCTRL 24_log.txt
the "assigned-clocks = <&l4per_clkctrl DRA7_MCASP3_CLKCTRL 22>"
U-Boot 2019.01-g333c3e72d3 (Apr 20 2020 - 04:15:00 +0000)
CPU : DRA752-GP ES2.0
Model: TI AM5728 BeagleBoard-X15
Board: UNKNOWN(BeagleBoard X15?) REV UNKNOWN
DRAM: 2 GiB
MMC: OMAP SD/MMC: 0, OMAP SD/MMC: 1
Loading Environment from FAT... *** Warning - bad CRC, using default environment
Loading Environment from MMC... *** Warning - bad CRC, using default environment
Warning: fastboot.board_rev: unknown board revision
am57x_idk_lcd_detect: Failed to get I2C device 0/56 (ret 1)
Net:
Warning: ethernet@48484000 using MAC address from ROM
eth0: ethernet@48484000
Hit any key to stop autoboot: 0
switch to partitions #0, OK
mmc0 is current device
SD/MMC found on device 0
** Unable to read file boot.scr **
** Unable to read file uEnv.txt **
switch to partitions #0, OK
mmc0 is current device
SD/MMC found on device 0
4571648 bytes read in 473 ms (9.2 MiB/s)
90792 bytes read in 12 ms (7.2 MiB/s)
## Flattened Device Tree blob at 88000000
Booting using the fdt blob at 0x88000000
Loading Device Tree to 8ffe6000, end 8ffff2a7 ... OK
Starting kernel ...
[ 0.000000] Booting Linux on physical CPU 0x0
[ 0.000000] Linux version 4.19.94-gbe5389fd85 (liqifang@liqifang-System-Product-Name) (gcc version 8.3.0 (GNU Toolchain for the A-profile 0
[ 0.000000] CPU: ARMv7 Processor [412fc0f2] revision 2 (ARMv7), cr=30c5387d
[ 0.000000] CPU: div instructions available: patching division code
[ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, PIPT instruction cache
[ 0.000000] OF: fdt: Machine model: TI AM5728 BeagleBoard-X15
[ 0.000000] Memory policy: Data cache writealloc
[ 0.000000] efi: Getting EFI parameters from FDT:
[ 0.000000] efi: UEFI not found.
[ 0.000000] Reserved memory: created CMA memory pool at 0x0000000095800000, size 56 MiB
[ 0.000000] OF: reserved mem: initialized node ipu2-memory@95800000, compatible id shared-dma-pool
[ 0.000000] Reserved memory: created CMA memory pool at 0x0000000099000000, size 64 MiB
[ 0.000000] OF: reserved mem: initialized node dsp1-memory@99000000, compatible id shared-dma-pool
[ 0.000000] Reserved memory: created DMA memory pool at 0x000000009d000000, size 32 MiB
[ 0.000000] OF: reserved mem: initialized node ipu1-memory@9d000000, compatible id shared-dma-pool
[ 0.000000] Reserved memory: created CMA memory pool at 0x000000009f000000, size 8 MiB
[ 0.000000] OF: reserved mem: initialized node dsp2-memory@9f000000, compatible id shared-dma-pool
[ 0.000000] cma: Reserved 24 MiB at 0x00000000fe400000
[ 0.000000] OMAP4: Map 0x00000000ffd00000 to (ptrval) for dram barrier
[ 0.000000] Hit pending asynchronous external abort (FSR=0x00001211) during first unmask, this is most likely caused by a firmware/bootloa.
[ 0.000000] DRA752 ES2.0
[ 0.000000] random: get_random_bytes called from start_kernel+0xb4/0x470 with crng_init=0
[ 0.000000] percpu: Embedded 15 pages/cpu s32396 r8192 d20852 u61440
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 464192
[ 0.000000] Kernel command line: console=ttyS2,115200n8 root=PARTUUID=c61aeb1a-02 rw rootfstype=ext4 rootwait
[ 0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes)
[ 0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes)
[ 0.000000] Memory: 1673044K/1863680K available (10240K kernel code, 347K rwdata, 2876K rodata, 2048K init, 269K bss, 34988K reserved, 155)
[ 0.000000] Virtual kernel memory layout:
[ 0.000000] vector : 0xffff0000 - 0xffff1000 ( 4 kB)
[ 0.000000] fixmap : 0xffc00000 - 0xfff00000 (3072 kB)
[ 0.000000] vmalloc : 0xf0800000 - 0xff800000 ( 240 MB)
[ 0.000000] lowmem : 0xc0000000 - 0xf0000000 ( 768 MB)
[ 0.000000] pkmap : 0xbfe00000 - 0xc0000000 ( 2 MB)
[ 0.000000] modules : 0xbf000000 - 0xbfe00000 ( 14 MB)
[ 0.000000] .text : 0x(ptrval) - 0x(ptrval) (12256 kB)
[ 0.000000] .init : 0x(ptrval) - 0x(ptrval) (2048 kB)
[ 0.000000] .data : 0x(ptrval) - 0x(ptrval) ( 348 kB)
[ 0.000000] .bss : 0x(ptrval) - 0x(ptrval) ( 270 kB)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[ 0.000000] rcu: Preemptible hierarchical RCU implementation.
[ 0.000000] Tasks RCU enabled.
[ 0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16
[ 0.000000] GIC: Using split EOI/Deactivate mode
[ 0.000000] OMAP clockevent source: timer1 at 32786 Hz
[ 0.000000] arch_timer: cp15 timer(s) running at 6.14MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x16af5adb9, max_idle_ns: 440795202250 ns
[ 0.000005] sched_clock: 56 bits at 6MHz, resolution 162ns, wraps every 4398046511023ns
[ 0.000019] Switching to timer-based delay loop, resolution 162ns
[ 0.000300] clocksource: 32k_counter: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 58327039986419 ns
[ 0.000310] OMAP clocksource: 32k_counter at 32768 Hz
[ 0.000780] Console: colour dummy device 80x30
[ 0.000822] Calibrating delay loop (skipped), value calculated using timer frequency.. 12.29 BogoMIPS (lpj=61475)
[ 0.000837] pid_max: default: 32768 minimum: 301
[ 0.000958] Mount-cache hash table entries: 2048 (order: 1, 8192 bytes)
[ 0.000973] Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes)
[ 0.001533] CPU: Testing write buffer coherency: ok
[ 0.001570] CPU0: Spectre v2: using ICIALLU workaround
[ 0.001782] /cpus/cpu@0 missing clock-frequency property
[ 0.001802] /cpus/cpu@1 missing clock-frequency property
[ 0.001815] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
[ 0.059915] Setting up static identity map for 0x80200000 - 0x80200060
[ 0.079925] rcu: Hierarchical SRCU implementation.
[ 0.100118] EFI services will not be available.
[ 0.119987] smp: Bringing up secondary CPUs ...
[ 0.200373] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
[ 0.200379] CPU1: Spectre v2: using ICIALLU workaround
[ 0.200501] smp: Brought up 1 node, 2 CPUs
[ 0.200513] SMP: Total of 2 processors activated (24.59 BogoMIPS).
[ 0.200523] CPU: All CPU(s) started in HYP mode.
[ 0.200530] CPU: Virtualization extensions available.
[ 0.201092] devtmpfs: initialized
[ 0.217873] VFP support v0.3: implementor 41 architecture 4 part 30 variant f rev 0
[ 0.218129] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.218148] futex hash table entries: 512 (order: 3, 32768 bytes)
[ 0.220811] pinctrl core: initialized pinctrl subsystem
[ 0.221331] DMI not present or invalid.
[ 0.221609] NET: Registered protocol family 16
[ 0.222754] DMA: preallocated 256 KiB pool for atomic coherent allocations
[ 0.223690] omap_hwmod: l3_main_2 using broken dt data from ocp
[ 0.416012] cpuidle: using governor ladder
[ 0.416047] cpuidle: using governor menu
[ 0.426552] OMAP GPIO hardware version 0.1
[ 0.450997] No ATAGs?
[ 0.451067] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
[ 0.451083] hw-breakpoint: maximum watchpoint size is 8 bytes.
[ 0.451917] OMAP DMA hardware revision 0.0
[ 0.463583] edma 43300000.edma: memcpy is disabled
[ 0.467001] edma 43300000.edma: TI EDMA DMA engine driver
[ 0.474230] omap-dma-engine 4a056000.dma-controller: OMAP DMA engine driver (LinkedList1/2/3 supported)
[ 0.475015] evm_5v0: supplied by main_12v0
[ 0.478337] omap-iommu 40d01000.mmu: 40d01000.mmu registered
[ 0.478514] omap-iommu 40d02000.mmu: 40d02000.mmu registered
[ 0.478755] omap-iommu 58882000.mmu: 58882000.mmu registered
[ 0.479010] omap-iommu 55082000.mmu: 55082000.mmu registered
[ 0.479383] omap-iommu 41501000.mmu: 41501000.mmu registered
[ 0.479556] omap-iommu 41502000.mmu: 41502000.mmu registered
[ 0.479837] iommu: Adding device 58820000.ipu to group 1
[ 0.479916] iommu: Adding device 55020000.ipu to group 2
[ 0.480040] iommu: Adding device 40800000.dsp to group 0
[ 0.480263] iommu: Adding device 41000000.dsp to group 3
[ 0.481545] SCSI subsystem initialized
[ 0.482577] palmas 0-0058: Irq flag is 0x00000008
[ 0.513960] palmas 0-0058: Muxing GPIO 2b, PWM 0, LED 0
[ 0.515523] SMPS12: supplied by regulator-dummy
[ 0.517116] SMPS3: supplied by regulator-dummy
[ 0.518678] SMPS45: supplied by regulator-dummy
[ 0.520399] SMPS6: supplied by regulator-dummy
[ 0.521747] SMPS7: supplied by regulator-dummy
[ 0.523077] SMPS8: supplied by regulator-dummy
[ 0.524272] SMPS9: supplied by regulator-dummy
[ 0.524930] LDO1: supplied by regulator-dummy
[ 0.540601] random: fast init done
[ 0.541324] LDO2: supplied by regulator-dummy
[ 0.561191] LDO3: supplied by regulator-dummy
[ 0.581207] LDO4: supplied by regulator-dummy
[ 0.601229] LDO5: supplied by regulator-dummy
[ 0.601892] LDO6: supplied by regulator-dummy
[ 0.602545] LDO7: supplied by regulator-dummy
[ 0.603214] LDO8: supplied by regulator-dummy
[ 0.603880] LDO9: supplied by regulator-dummy
[ 0.621267] LDOLN: supplied by regulator-dummy
[ 0.641290] LDOUSB: supplied by regulator-dummy
[ 0.663675] omap_i2c 48070000.i2c: bus 0 rev0.12 at 400 kHz
[ 0.664283] omap_i2c 48060000.i2c: bus 2 rev0.12 at 400 kHz
[ 0.664482] media: Linux media interface: v0.10
[ 0.664524] videodev: Linux video capture interface: v2.00
[ 0.664601] pps_core: LinuxPPS API ver. 1 registered
[ 0.664611] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 0.664632] PTP clock support registered
[ 0.664662] EDAC MC: Ver: 3.0.0
[ 0.665438] omap-mailbox 48840000.mailbox: omap mailbox rev 0x400
[ 0.665700] omap-mailbox 48842000.mailbox: omap mailbox rev 0x400
[ 0.680889] Advanced Linux Sound Architecture Driver Initialized.
[ 0.681668] clocksource: Switched to clocksource arch_sys_counter
[ 0.690024] NET: Registered protocol family 2
[ 0.690603] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes)
[ 0.690632] TCP established hash table entries: 8192 (order: 3, 32768 bytes)
[ 0.690695] TCP bind hash table entries: 8192 (order: 4, 65536 bytes)
[ 0.691000] TCP: Hash tables configured (established 8192 bind 8192)
[ 0.691073] UDP hash table entries: 512 (order: 2, 16384 bytes)
[ 0.691108] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)
[ 0.691243] NET: Registered protocol family 1
[ 0.711717] RPC: Registered named UNIX socket transport module.
[ 0.711728] RPC: Registered udp transport module.
[ 0.711736] RPC: Registered tcp transport module.
[ 0.711745] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 0.723128] hw perfevents: no interrupt-affinity property for /pmu, guessing.
[ 0.723325] hw perfevents: enabled with armv7_cortex_a15 PMU driver, 7 counters available
[ 0.724298] Initialise system trusted keyrings
[ 0.724435] workingset: timestamp_bits=14 max_order=19 bucket_order=5
[ 0.729399] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.729861] NFS: Registering the id_resolver key type
[ 0.729889] Key type id_resolver registered
[ 0.729898] Key type id_legacy registered
[ 0.729940] ntfs: driver 2.1.32 [Flags: R/O].
[ 0.732195] Key type asymmetric registered
[ 0.732207] Asymmetric key parser 'x509' registered
[ 0.732255] bounce: pool size: 64 pages
[ 0.732289] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 245)
[ 0.732300] io scheduler noop registered
[ 0.732310] io scheduler deadline registered
[ 0.732412] io scheduler cfq registered (default)
[ 0.732423] io scheduler mq-deadline registered
[ 0.732433] io scheduler kyber registered
[ 0.738121] pinctrl-single 4a003400.pinmux: 282 pins, size 1128
[ 0.752085] dra7-pcie 51000000.pcie: Linked as a consumer to phy-4a094000.pciephy.1
[ 0.752468] dra7-pcie 51000000.pcie: host bridge /ocp/axi@0/pcie@51000000 ranges:
[ 0.752511] dra7-pcie 51000000.pcie: IO 0x20003000..0x20012fff -> 0x00000000
[ 0.752537] dra7-pcie 51000000.pcie: MEM 0x20013000..0x2fffffff -> 0x20013000
[ 1.751906] dra7-pcie 51000000.pcie: Phy link never came up
[ 1.752055] dra7-pcie 51000000.pcie: PCI host bridge to bus 0000:00
[ 1.752069] pci_bus 0000:00: root bus resource [bus 00-ff]
[ 1.752082] pci_bus 0000:00: root bus resource [io 0x0000-0xffff]
[ 1.752093] pci_bus 0000:00: root bus resource [mem 0x20013000-0x2fffffff]
[ 1.757864] PCI: bus0: Fast back to back transfers disabled
[ 1.763226] PCI: bus1: Fast back to back transfers enabled
[ 1.763271] pci 0000:00:00.0: BAR 0: assigned [mem 0x20100000-0x201fffff 64bit]
[ 1.763292] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
[ 1.763619] pcieport 0000:00:00.0: Signaling PME with IRQ 170
[ 1.763750] pcieport 0000:00:00.0: AER enabled with IRQ 170
[ 1.767392] vdd_3v3: supplied by regen1
[ 1.767636] aic_dvdd_fixed: supplied by vdd_3v3
[ 1.767706] vtt_fixed: supplied by smps3
[ 1.817772] Serial: 8250/16550 driver, 10 ports, IRQ sharing enabled
[ 1.821383] console [ttyS2] disabled
[ 1.821439] 48020000.serial: ttyS2 at MMIO 0x48020000 (irq = 45, base_baud = 3000000) is a 8250
[ 2.914370] console [ttyS2] enabled
[ 2.919989] omap_rng 48090000.rng: Random Number Generator ver. 20
[ 2.920527] random: crng init done
[ 2.929808] omapdss_dss 58000000.dss: Linked as a consumer to regulator.22
[ 2.936859] DSS: OMAP DSS rev 6.1
[ 2.943169] omapdss_hdmi5 58040000.encoder: Linked as a consumer to regulator.16
[ 2.950678] omapdss_hdmi5 58040000.encoder: Dropping the link to regulator.16
[ 2.971404] brd: module loaded
[ 2.980818] loop: module loaded
[ 2.988132] libphy: Fixed MDIO Bus: probed
[ 3.051694] davinci_mdio 48485000.mdio: davinci mdio revision 1.6, bus freq 1000000
[ 3.059390] libphy: 48485000.mdio: probed
[ 3.068339] davinci_mdio 48485000.mdio: phy[1]: device 48485000.mdio:01, driver Micrel KSZ9031 Gigabit PHY
[ 3.078063] davinci_mdio 48485000.mdio: phy[2]: device 48485000.mdio:02, driver Micrel KSZ9031 Gigabit PHY
[ 3.088317] cpsw 48484000.ethernet: Detected MACID = e8:eb:11:6b:0c:6a
[ 3.094946] cpsw 48484000.ethernet: initialized cpsw ale version 1.4
[ 3.101334] cpsw 48484000.ethernet: ALE Table size 1024
[ 3.106647] cpsw 48484000.ethernet: cpts: overflow check period 500 (jiffies)
[ 3.114664] cpsw 48484000.ethernet: cpsw: Detected MACID = e8:eb:11:6b:0c:6b
[ 3.122773] PPP generic driver version 2.4.2
[ 3.127210] PPP BSD Compression module registered
[ 3.131957] PPP Deflate Compression module registered
[ 3.137041] PPP MPPE Compression module registered
[ 3.142090] i2c /dev entries driver
[ 3.148715] gpio-fan gpio_fan: GPIO fan initialized
[ 3.154761] tmp102 0-0048: initialized
[ 3.161596] cpu cpu0: Linked as a consumer to regulator.6
[ 3.167307] cpu cpu0: Linked as a consumer to regulator.29
[ 3.174478] sdhci: Secure Digital Host Controller Interface driver
[ 3.180688] sdhci: Copyright(c) Pierre Ossman
[ 3.186290] sdhci-pltfm: SDHCI platform and OF driver helper
[ 3.192627] omap_gpio 4805d000.gpio: Could not set line 27 debounce to 200000 microseconds (-22)
[ 3.201448] sdhci-omap 4809c000.mmc: Got CD GPIO
[ 3.206275] sdhci-omap 4809c000.mmc: Linked as a consumer to regulator.28
[ 3.213144] sdhci-omap 4809c000.mmc: 4809c000.mmc supply vqmmc not found, using dummy regulator
[ 3.221924] sdhci-omap 4809c000.mmc: Linked as a consumer to regulator.0
[ 3.228695] sdhci-omap 4809c000.mmc: Dropping the link to regulator.0
[ 3.235395] sdhci-omap 4809c000.mmc: Linked as a consumer to regulator.13
[ 3.242374] sdhci-omap 4809c000.mmc: no pinctrl state for ddr_3_3v mode
[ 3.276140] mmc0: SDHCI controller on 4809c000.mmc [4809c000.mmc] using ADMA
[ 3.283863] sdhci-omap 480b4000.mmc: Linked as a consumer to regulator.3
[ 3.290655] sdhci-omap 480b4000.mmc: Dropping the link to regulator.3
[ 3.297223] sdhci-omap 480b4000.mmc: Linked as a consumer to regulator.3
[ 3.329901] mmc1: SDHCI controller on 480b4000.mmc [480b4000.mmc] using ADMA
[ 3.338934] ledtrig-cpu: registered to indicate activity on CPUs
[ 3.347983] mmc0: host does not support reading read-only switch, assuming write-enable
[ 3.356341] tlv320aic3x-codec 0-0018: Linked as a consumer to regulator.3
[ 3.363424] tlv320aic3x-codec 0-0018: Linked as a consumer to regulator.4
[ 3.371906] clk: failed to reparent l4per_cm:clk:0168:22 to sys_clkin2: -22
[ 3.379090] mmc0: new SDHC card at address 0001
[ 3.384561] NET: Registered protocol family 10
[ 3.394212] mmcblk0: mmc0:0001 SD16G 14.6 GiB
[ 3.400009] Segment Routing with IPv6
[ 3.403790] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
[ 3.410261] NET: Registered protocol family 17
[ 3.414952] mmcblk0: p1 p2
[ 3.415073] Key type dns_resolver registered
[ 3.422472] Registering SWP/SWPB emulation handler
[ 3.427350] omap_voltage_late_init: Voltage driver support not added
[ 3.433807] Power Management for TI OMAP4+ devices.
[ 3.439480] ti-iodelay 4844a000.padconf: Set reg 0x18c Delay(a: 0 g: 120), Elements(C=0 F=2)0x29002
[ 3.448591] ti-iodelay 4844a000.padconf: Set reg 0x190 Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.457547] ti-iodelay 4844a000.padconf: Set reg 0x194 Delay(a: 174 g: 0), Elements(C=0 F=4)0x29004
[ 3.466678] ti-iodelay 4844a000.padconf: Set reg 0x1a4 Delay(a: 265 g: 360), Elements(C=0 F=13)0x2900d
[ 3.466705] Loading compiled-in X.509 certificates
[ 3.476043] ti-iodelay 4844a000.padconf: Set reg 0x1a8 Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.489783] ti-iodelay 4844a000.padconf: Set reg 0x1ac Delay(a: 168 g: 0), Elements(C=0 F=4)0x29004
[ 3.498916] ti-iodelay 4844a000.padconf: Set reg 0x1b0 Delay(a: 0 g: 120), Elements(C=0 F=2)0x29002
[ 3.502642] dmm 4e000000.dmm: workaround for errata i878 in use
[ 3.508022] ti-iodelay 4844a000.padconf: Set reg 0x1b4 Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.522909] ti-iodelay 4844a000.padconf: Set reg 0x1b8 Delay(a: 136 g: 0), Elements(C=0 F=3)0x29003
[ 3.532034] ti-iodelay 4844a000.padconf: Set reg 0x1bc Delay(a: 0 g: 120), Elements(C=0 F=2)0x29002
[ 3.532042] dmm 4e000000.dmm: initialized all PAT entries
[ 3.541122] ti-iodelay 4844a000.padconf: Set reg 0x1c0 Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.555493] ti-iodelay 4844a000.padconf: Set reg 0x1c4 Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.564434] ti-iodelay 4844a000.padconf: Set reg 0x1c8 Delay(a: 287 g: 420), Elements(C=0 F=14)0x2900e
[ 3.573815] ti-iodelay 4844a000.padconf: Set reg 0x1d0 Delay(a: 879 g: 0), Elements(C=1 F=10)0x2902a
[ 3.573824] omapdss_hdmi5 58040000.encoder: Linked as a consumer to regulator.16
[ 3.583002] ti-iodelay 4844a000.padconf: Set reg 0x1d4 Delay(a: 144 g: 240), Elements(C=0 F=8)0x29008
[ 3.590491] omapdss_hdmi5 58040000.encoder: Dropping the link to regulator.16
[ 3.599694] ti-iodelay 4844a000.padconf: Set reg 0x1d8 Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.615824] ti-iodelay 4844a000.padconf: Set reg 0x1dc Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.624754] ti-iodelay 4844a000.padconf: Set reg 0x1e0 Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.633676] ti-iodelay 4844a000.padconf: Set reg 0x1e4 Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.642601] ti-iodelay 4844a000.padconf: Set reg 0x1e8 Delay(a: 34 g: 0), Elements(C=0 F=0)0x29000
[ 3.651598] ti-iodelay 4844a000.padconf: Set reg 0x1ec Delay(a: 0 g: 120), Elements(C=0 F=2)0x29002
[ 3.660704] ti-iodelay 4844a000.padconf: Set reg 0x1f0 Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.669636] ti-iodelay 4844a000.padconf: Set reg 0x1f4 Delay(a: 120 g: 0), Elements(C=0 F=3)0x29003
[ 3.678731] ti-iodelay 4844a000.padconf: Set reg 0x1f8 Delay(a: 120 g: 180), Elements(C=0 F=6)0x29006
[ 3.678738] ti-iodelay 4844a000.padconf: Set reg 0x1fc Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.696916] ti-iodelay 4844a000.padconf: Set reg 0x200 Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.705845] ti-iodelay 4844a000.padconf: Set reg 0x360 Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.714768] ti-iodelay 4844a000.padconf: Set reg 0x364 Delay(a: 0 g: 0), Elements(C=0 F=0)0x29000
[ 3.715470] asoc-simple-card sound0: tlv320aic3x-hifi <-> 48468000.mcasp mapping ok
[ 3.723695] ti-iodelay 4844a000.padconf: Set reg 0x368 Delay(a: 11 g: 0), Elements(C=0 F=0)0x29000
[ 3.731385] asoc-simple-card sound0: ASoC: no DMI vendor name!
[ 3.740785] mmc1: new DDR MMC card at address 0001
[ 3.752113] omapdss_hdmi5 58040000.encoder: Linked as a consumer to regulator.16
[ 3.759864] omapdss_dss 58000000.dss: bound 58001000.dispc (ops dispc_component_ops)
[ 3.761817] mmcblk1: mmc1:0001 AJTD4R 14.6 GiB
[ 3.768189] omap-hdmi-audio omap-hdmi-audio.0.auto: snd-soc-dummy-dai <-> 58040000.encoder mapping ok
[ 3.772573] mmcblk1boot0: mmc1:0001 AJTD4R partition 1 4.00 MiB
[ 3.781453] omap-hdmi-audio omap-hdmi-audio.0.auto: ASoC: no DMI vendor name!
[ 3.787773] mmcblk1boot1: mmc1:0001 AJTD4R partition 2 4.00 MiB
[ 3.800751] mmcblk1rpmb: mmc1:0001 AJTD4R partition 3 4.00 MiB, chardev (244:0)
[ 3.808302] omapdss_dss 58000000.dss: bound 58040000.encoder (ops hdmi5_component_ops)
[ 3.808806] mmcblk1: p1 p2
[ 3.819930] [drm] Supports vblank timestamp caching Rev 2 (21.10.2013).
[ 3.826606] [drm] No driver support for vblank timestamp query.
[ 3.832577] [drm] Cannot find any crtc or sizes
[ 3.837809] [drm] Initialized omapdrm 1.0.0 20110917 for omapdrm.0 on minor 0
[ 3.845416] hctosys: unable to open rtc device (rtc0)
[ 3.850661] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[ 3.859706] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[ 3.866376] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2
[ 3.872156] ALSA device list:
[ 3.875043] cfg80211: failed to load regulatory.db
[ 3.878015] #0: BeagleBoard-X15
[ 3.886138] #1: HDMI 58040000.encoder
[ 3.932569] EXT4-fs (mmcblk0p2): warning: mounting fs with errors, running e2fsck is recommended
[ 4.001742] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null)
[ 4.009898] VFS: Mounted root (ext4 filesystem) on device 179:2.
[ 4.061385] devtmpfs: mounted
[ 4.065690] Freeing unused kernel memory: 2048K
[ 4.070444] Run /sbin/init as init process
[ 4.871742] [drm] Cannot find any crtc or sizes
[ 4.900184] systemd[1]: System time before build time, advancing clock.
[ 4.945064] systemd[1]: systemd 239 running in system mode. (+PAM -AUDIT -SELINUX +IMA -APPARMOR +SMACK +SYSVINIT +UTMP -LIBCRYPTSETUP -GC)
[ 4.967306] systemd[1]: Detected architecture arm.
Welcome to Arago 2019.11!
[ 5.063337] systemd[1]: Set hostname to <am57xx-evm>.
[ 5.372829] systemd[1]: File /lib/systemd/system/systemd-journald.service:36 configures an IP firewall (IPAddressDeny=any), but the local .
[ 5.390106] systemd[1]: Proceeding WITHOUT firewalling in effect! (This warning is only shown for the first loaded unit using IP firewalli)
[ 5.680982] systemd[1]: Listening on udev Kernel Socket.
[ OK ] Listening on udev Kernel Socket.
[ 5.712204] systemd[1]: Listening on udev Control Socket.
[ OK ] Listening on udev Control Socket.
[ 5.743008] systemd[1]: Started Forward Password Requests to Wall Directory Watch.
[ OK ] Started Forward Password Requests to Wall Directory Watch.
[ 5.786231] systemd[1]: Created slice system-getty.slice.
[ OK ] Created slice system-getty.slice.
[ 5.912087] systemd[1]: Listening on Journal Socket.
[ OK ] Listening on Journal Socket.
Mounting POSIX Message Queue File System...
[ OK ] Created slice system-serial\x2dgetty.slice.
Starting Remount Root and Kernel File Systems...
[ 6.026666] EXT4-fs (mmcblk0p2): re-mounted. Opts: (null)
Starting Apply Kernel Variables...
Mounting Kernel Configuration File System...
Mounting Kernel Debug File System...
Starting udev Coldplug all Devices...
[ OK ] Created slice User and Session Slice.
[ OK ] Reached target Slices.
[ OK ] Reached target Swap.
Mounting Temporary Directory (/tmp)...
[ OK ] Listening on initctl Compatibility Named Pipe.
[ OK ] Listening on Network Service Netlink Socket.
[ OK ] Listening on Process Core Dump Socket.
[ OK ] Reached target Remote File Systems.
[ OK ] Listening on Journal Socket (/dev/log).
Starting Journal Service...
[ OK ] Started Dispatch Password Requests to Console Directory Watch.
[ OK ] Reached target Paths.
[ OK ] Mounted POSIX Message Queue File System.
[ OK ] Started Remount Root and Kernel File Systems.
[ OK ] Started Journal Service.
[ OK ] Started Apply Kernel Variables.
[ OK ] Mounted Kernel Configuration File System.
[ OK ] Mounted Kernel Debug File System.
[ OK ] Mounted Temporary Directory (/tmp).
Starting Flush Journal to Persistent Storage...
Starting Create Static Device Nodes in /dev...
[ 6.860913] systemd-journald[117]: Received request to flush runtime journal from PID 1
[ OK ] Started Create Static Device Nodes in /dev.
[ OK ] Started Flush Journal to Persistent Storage.
[ OK ] Reached target Local File Systems (Pre).
[ OK ] Reached target Containers.
Mounting /media/ram...
Mounting /var/volatile...
Starting udev Kernel Device Manager...
[ OK ] Mounted /media/ram.
[ OK ] Mounted /var/volatile.
Starting Load/Save Random Seed...
[ OK ] Reached target Local File Systems.
Starting Create Volatile Files and Directories...
[ OK ] Started udev Kernel Device Manager.
[ OK ] Started udev Coldplug all Devices.
[ OK ] Started Load/Save Random Seed.
[ OK ] Started Create Volatile Files and Directories.
Starting Update UTMP about System Boot/Shutdown...
Starting Network Time Synchronization...
Starting Network Service...
[ 7.471246] omap-rproc 58820000.ipu: ignoring dependency for device, assuming no driver
[ 7.486960] omap-rproc 58820000.ipu: ignoring dependency for device, assuming no driver
[ OK ] Started Update UTMP about System Boot/Shutdow[ 7.514239] omap-rproc 58820000.ipu: assigned reserved memory node ipu1-memory@9d0000
n.
[ 7.530021] remoteproc remoteproc0: 58820000.ipu is available
[ 7.536843] omap-rproc 55020000.ipu: ignoring dependency for device, assuming no driver
[ 7.546869] remoteproc remoteproc0: Direct firmware load for dra7-ipu1-fw.xem4 failed with error -2
[ 7.559582] remoteproc remoteproc0: powering up 58820000.ipu
[ 7.565421] remoteproc remoteproc0: Direct firmware load for dra7-ipu1-fw.xem4 failed with error -2
[ 7.577686] remoteproc remoteproc0: request_firmware failed: -2
[ 7.586632] omap-rproc 55020000.ipu: ignoring dependency for device, assuming no driver
[ 7.605382] omap-rproc 55020000.ipu: assigned reserved memory node ipu2-memory@95800000
[ OK ] Started Network Service.
[ 7.647435] remoteproc remoteproc1: 55020000.ipu is available
[ OK ] Found device /dev/ttyS2.
[ 7.696821] remoteproc remoteproc1: Direct firmware load for dra7-ipu2-fw.xem4 failed with error -2
Starting Network Name Resolution...
[ 7.715453] remoteproc remoteproc1: powering up 55020000.ipu
[ 7.721208] remoteproc remoteproc1: Direct firmware load for dra7-ipu2-fw.xem4 failed with error -2
[ 7.733200] omap-rproc 40800000.dsp: ignoring dependency for device, assuming no driver
[ 7.741360] remoteproc remoteproc1: request_firmware failed: -2
Starting Wait for Network to be Configured...
[ 7.758798] omap-rproc 40800000.dsp: ignoring dependency for device, assuming no driver
[ 7.767356] omap-rproc 40800000.dsp: assigned reserved memory node dsp1-memory@99000000
[ 7.775614] remoteproc remoteproc2: 40800000.dsp is available
[ 7.786625] remoteproc remoteproc2: Direct firmware load for dra7-dsp1-fw.xe66 failed with error -2
[ 7.798790] remoteproc remoteproc2: powering up 40800000.dsp
[ 7.804925] remoteproc remoteproc2: Direct firmware load for dra7-dsp1-fw.xe66 failed with error -2
[ 7.818462] omap-rproc 41000000.dsp: ignoring dependency for device, assuming no driver
[ 7.826581] remoteproc remoteproc2: request_firmware failed: -2
[ 7.846467] omap-rproc 41000000.dsp: ignoring dependency for device, assuming no driver
[ 7.860651] omap-rproc 41000000.dsp: assigned reserved memory node dsp2-memory@9f000000
[ 7.871137] remoteproc remoteproc3: 41000000.dsp is available
[ 7.888203] remoteproc remoteproc3: Direct firmware load for dra7-dsp2-fw.xe66 failed with error -2
[ 7.898900] remoteproc remoteproc3: powering up 41000000.dsp
[ 7.904660] remoteproc remoteproc3: Direct firmware load for dra7-dsp2-fw.xe66 failed with error -2
[ OK ] Started Network Time Synchronization.
[ 7.921823] remoteproc remoteproc3: request_firmware failed: -2
[ OK ] Reached target System Time Synchronized.
[ OK ] Reached target System Initialization.
[ 7.985537] Driver for 1-wire Dallas network protocol.
[ 8.048199] palmas-rtc 48070000.i2c:tps659038@58:tps659038_rtc: rtc core: registered 48070000.i2c:tps659038@58:tps659038_rtc as rtc1
[ 8.062716] omap_hdq 480b2000.1w: OMAP HDQ Hardware Rev 0.:. Driver in Interrupt mode
[ 8.073417] rtc-ds1307 2-006f: SET TIME!
[ 8.085253] at24 0-0050: 4096 byte 24c32 EEPROM, writable, 1 bytes/write
[ OK ] Listening on D-Bus System Message Bus Socket.[ 8.097013] omap-des 480a5000.des: OMAP DES hw accel rev: 2.2
[ 8.114994] rtc-ds1307 2-006f: registered as rtc0
Starting Docker Socket for the API.
[ 8.142299] omap-des 480a5000.des: will run requests pump with realtime priority
[ 8.186763] Error: Driver 'tlv320aic3x-codec' is already registered, aborting...
[ OK ] Listening on dropbear.socket.
[ OK ] Started Daily Cleanup of Temporary Directories.
[ OK ] Reached target Timers.
[ OK ] Listening on Avahi mDNS/DNS-SD Stack Activati[ 8.285561] omap_rtc 48838000.rtc: registered as rtc2
on Socket.
[ 8.301408] Error: Driver 'tlv320aic3x-codec' is already registered, aborting...
[ OK ] Started Network Name Resolution.
[ 8.343764] w1_master_driver w1_bus_master1: Attaching one wire slave 01.000000000000 crc 3d
[ OK ] Listening on Docker Socket for the API.
[ 8.365033] w1_master_driver w1_bus_master1: Family 1 for 01.000000000000.3d is not registered.
[ OK ] Reached target Sockets.
[ 8.393986] vpe 489d0000.vpe: loading firmware vpdma-1b8.bin
[ OK ] Reached target Basic System.
[ 8.421915] vpe 489d0000.vpe: Device registered as /dev/video0
[ OK ] Started D-Bus System Message Bus.
Starting Login Service...
Starting telnetd.service...
[ 8.540313] phy phy-4a084000.phy.3: Linked as a consumer to regulator.23
[ OK ] Reached target Network.
[ 8.562397] phy phy-4a085000.phy.4: Linked as a consumer to regulator.23
Starting Enable and configure wl18xx bluetooth stack...
[ 8.597860] omap-sham 4b101000.sham: hw accel on OMAP rev 4.3
Starting Permit User Sessions...
[ 8.611225] omap_wdt: OMAP Watchdog Timer Rev 0x01: initial timeout 60 sec
[ 8.618872] net eth1: initializing cpsw version 1.15 (0)
Starting DNS forwarder and DHCP server...
[ OK ] Reached target Host and Network Name Lookups.
[ 8.683360] omap-aes 4b500000.aes: OMAP AES hw accel rev: 3.3
Starting Avahi mDNS/DNS-SD Stack...
[ 8.713760] omap-aes 4b500000.aes: will run requests pump with realtime priority
[ OK ] Started telnetd.service.
[ 8.752733] Micrel KSZ9031 Gigabit PHY 48485000.mdio:02: attached PHY driver [Micrel KSZ9031 Gigabit PHY] (mii_bus:phy_addr=48485000.mdio:)
[ OK ] Started Enable and configure wl18xx bluetooth stack.
[ 8.780536] IPv6: ADDRCONF(NETDEV_UP): eth1: link is not ready
[ OK ] Started Permit User Sessions.
[ 8.811770] Error: Driver 'omap-hdmi-audio' is already registered, aborting...
[ 8.823914] ahci 4a140000.sata: controller can't do 64bit DMA, forcing 32bit
[ 8.835064] net eth0: initializing cpsw version 1.15 (0)
[ 8.854590] omap-aes 4b700000.aes: OMAP AES hw accel rev: 3.3
[ 8.860561] omap-aes 4b700000.aes: will run requests pump with realtime priority
[ 8.894797] ahci 4a140000.sata: forcing port_map 0x0 -> 0x1
[ OK ] Started Serial Getty on ttyS2.
[ OK ] Started Getty on tty1.
[ 8.941975] ahci 4a140000.sata: AHCI 0001.0300 32 slots 1 ports 3 Gbps 0x1 impl platform mode
[ 8.956506] Error: Driver 'omap-hdmi-audio' is already registered, aborting...
[ OK ] Reached target Login Prompts.
[ 8.967925] ahci 4a140000.sata: flags: ncq sntf pm led clo only pmp pio slum part ccc apst
[ 8.979958] Micrel KSZ9031 Gigabit PHY 48485000.mdio:01: attached PHY driver [Micrel KSZ9031 Gigabit PHY] (mii_bus:phy_addr=48485000.mdio:)
[ 8.990172] scsi host0: ahci
[ 8.996327] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready
Starting Synchronize System and HW clocks...
[ 9.028981] ata1: SATA max UDMA/133 mmio [mem 0x4a140000-0x4a1410ff] port 0x100 irq 80
Starting thttpd.service...
Starting LSB: Bring up/down LXC autostart containers...
[ OK ] Started DNS forwarder and DHCP server.
[ OK ] Started Synchronize System and HW clocks.
[ 9.327050] snd_soc_simple_card_utils: exports duplicate symbol asoc_simple_card_canonicalize_cpu (owned by kernel)
[ 9.394600] ata1: SATA link down (SStatus 0 SControl 300)
[ 9.479346] snd_soc_simple_card_utils: exports duplicate symbol asoc_simple_card_canonicalize_cpu (owned by kernel)
[ OK ] Started thttpd.service.
[ OK ] Started LSB: Bring up/down LXC autostart containers.
Starting Save/Restore Sound Card State...
[ OK ] Started Save/Restore Sound Card State.
[ OK ] Reached target Sound Card.
[ OK ] Started Avahi mDNS/DNS-SD Stack.
[ OK ] Started Login Service.
[ OK ] Created slice system-systemd\x2dfsck.slice.
[ OK ] Listening on Load/Save RF Kill Switch Status /dev/rfkill Watch.
[ 11.297078] dwc3 48890000.usb: Failed to get clk 'ref': -2
[ 11.344612] dwc3 488d0000.usb: Failed to get clk 'ref': -2
[ 11.494227] remoteproc remoteproc4: 4b234000.pru is available
[ 11.530175] pru-rproc 4b234000.pru: PRU rproc node pru@4b234000 probed successfully
[ 11.553133] remoteproc remoteproc5: 4b238000.pru is available
[ 11.558956] pru-rproc 4b238000.pru: PRU rproc node pru@4b238000 probed successfully
[ 11.573323] remoteproc remoteproc6: 4b2b4000.pru is available
[ 11.583107] pru-rproc 4b2b4000.pru: PRU rproc node pru@4b2b4000 probed successfully
[ 11.593327] remoteproc remoteproc7: 4b2b8000.pru is available
[ 11.599384] pru-rproc 4b2b8000.pru: PRU rproc node pru@4b2b8000 probed successfully
[ 11.615892] usbcore: registered new interface driver usbfs
[ 11.628165] usbcore: registered new interface driver hub
[ 11.659294] usbcore: registered new device driver usb
[ 11.719024] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 11.724988] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 1
[ 11.734651] xhci-hcd xhci-hcd.1.auto: hcc params 0x0220f04c hci version 0x100 quirks 0x0000000002010010
[ 11.744958] xhci-hcd xhci-hcd.1.auto: irq 181, io mem 0x48890000
[ 11.751399] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 4.19
[ 11.760578] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 11.769000] usb usb1: Product: xHCI Host Controller
[ 11.774174] usb usb1: Manufacturer: Linux 4.19.94-gbe5389fd85 xhci-hcd
[ 11.781091] usb usb1: SerialNumber: xhci-hcd.1.auto
[ 11.787545] hub 1-0:1.0: USB hub found
[ 11.791339] hub 1-0:1.0: 1 port detected
[ 11.797662] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 11.804617] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 2
[ 11.813012] xhci-hcd xhci-hcd.1.auto: Host supports USB 3.0 SuperSpeed
[ 11.819750] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 11.829747] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 4.19
[ 11.838465] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 11.846355] usb usb2: Product: xHCI Host Controller
[ 11.851629] usb usb2: Manufacturer: Linux 4.19.94-gbe5389fd85 xhci-hcd
[ 11.858780] usb usb2: SerialNumber: xhci-hcd.1.auto
[ 11.868516] hub 2-0:1.0: USB hub found
[ 11.872372] hub 2-0:1.0: 1 port detected
[ 12.171742] usb 1-1: new high-speed USB device number 2 using xhci-hcd
[ 12.352564] usb 1-1: New USB device found, idVendor=0451, idProduct=8142, bcdDevice= 1.00
[ 12.361732] usb 1-1: New USB device strings: Mfr=0, Product=0, SerialNumber=1
[ 12.371741] usb 1-1: SerialNumber: F906006168BF
[ 12.427904] hub 1-1:1.0: USB hub found
[ 12.431900] hub 1-1:1.0: 4 ports detected
[ 12.501738] usb 2-1: new SuperSpeed Gen 1 USB device number 2 using xhci-hcd
[ 12.531951] usb 2-1: New USB device found, idVendor=0451, idProduct=8140, bcdDevice= 1.00
[ 12.543858] usb 2-1: New USB device strings: Mfr=0, Product=0, SerialNumber=0
[ 12.587908] hub 2-1:1.0: USB hub found
[ 12.591786] hub 2-1:1.0: 4 ports detected
[ 12.821698] usb 1-1.2: new high-speed USB device number 3 using xhci-hcd
[ 12.971936] usb 1-1.2: config 1 interface 1 altsetting 0 endpoint 0x3 has wMaxPacketSize 0, skipping
[ 12.981223] usb 1-1.2: config 1 interface 1 altsetting 0 endpoint 0x83 has wMaxPacketSize 0, skipping
[ 12.991253] usb 1-1.2: New USB device found, idVendor=0bda, idProduct=b720, bcdDevice= 2.00
[ 12.999909] usb 1-1.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 13.007613] usb 1-1.2: Product: 802.11n WLAN Adapter
[ 13.012927] usb 1-1.2: Manufacturer: Realtek
[ 13.017213] usb 1-1.2: SerialNumber: 00e04c000001
[ 13.211712] usb 1-1.4: new high-speed USB device number 4 using xhci-hcd
[ 13.351914] usb 1-1.4: New USB device found, idVendor=1a40, idProduct=0101, bcdDevice= 1.11
[ 13.360421] usb 1-1.4: New USB device strings: Mfr=0, Product=1, SerialNumber=0
[ 13.368437] usb 1-1.4: Product: USB 2.0 Hub
[ 13.419882] hub 1-1.4:1.0: USB hub found
[ 13.424294] hub 1-1.4:1.0: 4 ports detected
[ OK ] Found device /dev/mmcblk1p2.
[ OK ] Found device /dev/mmcblk1p1.
Starting File System Check on /dev/mmcblk1p1...
Starting File System Check on /dev/mmcblk1p2...
Starting File System Check on /dev/mmcblk0p1...
[ OK ] Started File System Check on /dev/mmcblk1p1.
Mounting /run/media/mmcblk1p1...
[ OK ] Mounted /run/media/mmcblk1p1.
_____ _____ _ _
| _ |___ ___ ___ ___ | _ |___ ___ |_|___ ___| |_
| | _| .'| . | . | | __| _| . | | | -_| _| _|
|__|__|_| |__,|_ |___| |__| |_| |___|_| |___|___|_|
|___| |___|
Arago Project http://arago-project.org am57xx-evm ttyS2
Arago 2019.11 am57xx-evm ttyS2
am57xx-evm login: root (automatic login)
[ 14.500810] EXT4-fs (mmcblk1p2): mounted filesystem with ordered data mode. Opts: (null)
root@am57xx-evm:~#
root@am57xx-evm:~#
This is my schematic
root@am57xx-evm:/# aplay -l
**** List of PLAYBACK Hardware Devices ****
card 0: BeagleBoardX15 [BeagleBoard-X15], device 0: davinci-mcasp.0-tlv320aic3x-hifi tlv320aic3x-hifi-0 [davinci-mcasp.0-tlv320aic3x-hifi tlv]
Subdevices: 1/1
Subdevice #0: subdevice #0
card 1: H58040000encode [HDMI 58040000.encoder], device 0: HDMI 58040000.encoder snd-soc-dummy-dai-0 [HDMI 58040000.encoder snd-soc-dummy-dai]
Subdevices: 1/1
Subdevice #0: subdevice #0
root@am57xx-evm:/#
root@am57xx-evm:/# aplay yu.wav
Playing WAVE 'yu.wav' : Signed 16 bit Little Endian, Rate 44100 Hz, Stereo
aplay: pcm_write:2051: write error: Input/output error
root@am57xx-evm:/#
.......................................................................................
What is the difference between "assigned-clocks = <&l4per_clkctrl DRA7_MCASP3_CLKCTRL 24>" and "assigned-clocks = <&l4per_clkctrl DRA7_MCASP3_CLKCTRL 22>;" ?
When i aplay *.wav has no sound, how can I modify it ?
