AWR2243: CSI packet information

KenF

Part Number: AWR2243

Hi Experts,

My customer is building cascade radar board with AWR2243 by themselves.

In the AWR2243 datasheet, section "9.4.1 A2D Data Format Over CSI2 Interface", CSI2 format (frame, chirp, data timing, etc) is written. They would like to use CSI packet information such as FS, LS, etc to synchronize frame/chirp. Could you please share the detailed timing?

Best regards,
Ken

over 4 years ago

0 Ishita Kochar over 4 years ago

TI__Mastermind 31680 points

Hello Ken,

All the related information is present in either the device datasheet or the Technical Reference Manual. I can still check internally if there's anything more to the present information.

Basically the receiver can keep count of the number of frames it receives based on the frame start and frame end packets it gets over the CSI interface.

Regards,

Ishita

0 KenF over 4 years ago in reply to Ishita Kochar

TI__Expert 7150 points

Hello Ishita,

Please check if there is anything we can share with customer.

Best regards,

Ken

+1 Ishita Kochar over 4 years ago in reply to KenF

TI__Mastermind 31680 points

Hello Ken,

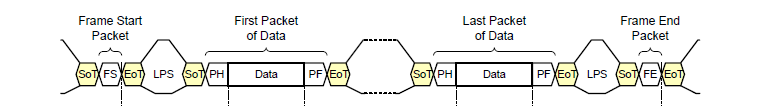

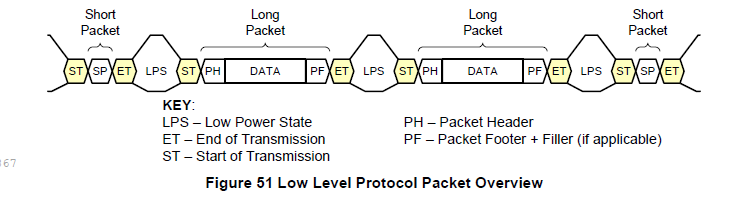

The CSI protocol and timing followed is as per the MIPI standard. The customer can refer to the MIPI specifications to get details. I am attaching a low level protocol diagram from the MIPI spec below. We follow the same Frame start/end , Line start/end.
