IWR6843AOP: Action after NERROR_IN is active.

Akihiko Fujinaka

Part Number: IWR6843AOP

Hello Expert,

I could not find good information on the Datasheet/ Technical Reference Manual / E2E thread, so asking this question on this thread.

Regarding NERROR_IN pin ,

1) From the pin name, is this High active pin , right?

2) Is this NERROR_IN is asserted, how the chip act after? The Datasheet only described as follows,

"Nerror output from any other device can
be concentrated in the error signaling monitor module inside the
device and appropriate action can be taken by Firmware"

This appropriate action means the "chip reset" or any other action will be executed?

3) User application does not need to handle after this error at all?

Regards, A.Fujinaka

over 4 years ago

0 Ishita Kochar over 4 years ago

TI__Mastermind 31680 points

Hello A.Fujinaka,

I've forwarded your query to an expert here. Please expect a response by tomorrow.

Regards,

Ishita

0 Abhed Misra over 4 years ago in reply to Ishita Kochar

TI__Genius 13805 points

Hi A.Fujinaka,

NERROR_IN pin is a way to indicate to xWR* device that there is an error in the system. ( this is one way to cascade the error path in the system where any other device is providing nerror input and which is logged by xWR device and informed to host or take action)

This error will reflect in group 1 ESM error and will be reported through API message in FE sensor.

In Single chip sensor customer code in MSS is expected to take action/reporting on the same based on system needs and requirements.

This is Asserted low in case of Error.

Please refer section 7.2 in datasheet for handling and description of this pin.

Regards

Abhed

0 Akihiko Fujinaka over 4 years ago in reply to Abhed Misra

TI__Expert 3505 points

Hello Abhed,

Thanks for your repsonse.

I understand this NERROR_IN low input cause ESM gourp 1 error , so we should refer "28.2 Error Signaling Module (ESM)" in TRM swru522e.pdf, and user code should execute the appropriate behaivior to handle this error, right?

Regards, A.Fujinaka

0 Abhed Misra over 4 years ago in reply to Akihiko Fujinaka

TI__Genius 13805 points

Yes A. Fujinaka

0 Akihiko Fujinaka over 4 years ago in reply to Abhed Misra

TI__Expert 3505 points

Hello Abhed,

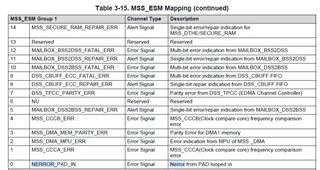

Can I double check this NERROR_IN low input makes the signal of the following NERROR_PAD_IN in Table 3-15. MSS_ESM Mapping?

BR. A.Fujinaka
