IWR6843ISK: Using multiple IWR6843ISK Sensors

Divyank Saxena

Prodigy 110 points

Part Number: IWR6843ISK

Hello There,

Lab Used : "Long Range People Detection"

Chirp config : "people_detection_and_tracking_100m_2D_advanced.cfg"

I am planning to use multiple sensors in a large room to count and track the people.

Is there any significant interference and performance degradation occur because of multiple sensors in same area??

Thanks

over 4 years ago

0 Sudharshan KN over 4 years ago

TI__Genius 10550 points

Hi,

Can you please let me know how you would like to use the sensors? Wall mounted or ceiling mounted or any other configuration?

Regards,

Sudharshan K N

0 Divyank Saxena over 4 years ago in reply to Sudharshan KN

Prodigy 110 points

It will be wall mounted.

0 Sudharshan KN over 4 years ago in reply to Divyank Saxena

TI__Genius 10550 points

Hi,

Are the sensors overlapping or are multiple sensor being used for covering the area? Please let us know

Regards,

Sudharshan K N

0 Divyank Saxena over 4 years ago in reply to Sudharshan KN

Prodigy 110 points

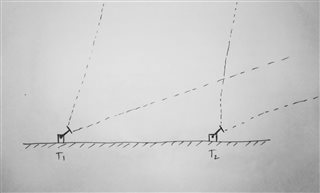

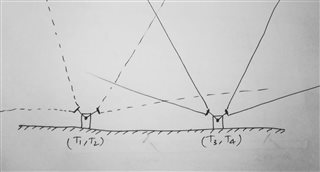

Config_01 Config_02

The above are the depicted configurations of sensor positioning (Top View).

The sensors are placed on the perimeter wall.

Distance between the two nodes is 50 meters.

Thanks

0 Sudharshan KN over 4 years ago in reply to Divyank Saxena

TI__Genius 10550 points

Hi,

Thanks for the information! What is the detection range that you want to configure? Also specify the angle at which these sensors are mounted?

Regards,

Sudharshan K N

0 Divyank Saxena over 4 years ago in reply to Sudharshan KN

Prodigy 110 points

I am just asking is there any possible interference when using multiple devices.

By the way, detection Range is 100m and mounting angle is 2 degree.

Thanks

0 Sudharshan KN over 4 years ago in reply to Divyank Saxena

TI__Genius 10550 points

Hi,

In general there should be no issue as the sensors are not facing each other and the distance is about 50m. Also the clocks may not be synchronized for the chirp configuration. Also if using different chirp profiles there should not be an issue as well. Also pl refer to dithering and randomization section in the following document https://www.ti.com/lit/an/swra662/swra662.pdf?ts=1626793249085&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FIWR6843 for further details on interference mitigation.

Regards,

Sudharshan K N
